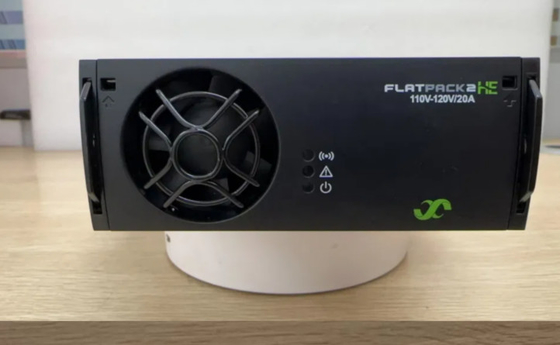

Eltek Rectifier Module Flatpack2 110-120V/20A HE High Efficiency Module(Part No. 241119.805)
FLATPACK2 110/2000 HE

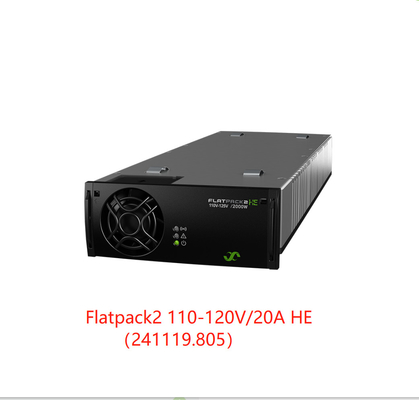

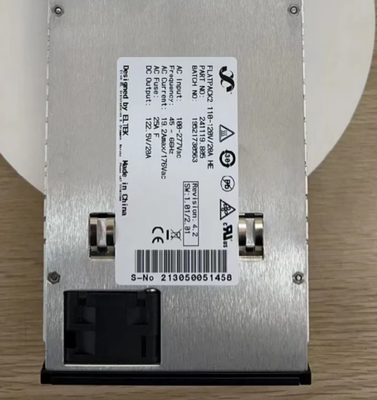

Flatpack2 110-120V/20A HE
Since the launch the Flatpack2 family has expanded into a wide selection of power ratings and voltages.
Flatpack2 110-120V/20A HE
Reliable high efficiency rectifier for industrial applications
Key features
- Proven reliability
- High power density
- Application flexibility - 2KW to multicabinet installations
- Accepts DC input (DC/DC converter)
- Global compliance (CE, UL)
- Marine &
- Offshore certifications
- Patented technology
- Digital controllers
Parameters :
| Model |
110 / 2000 HE WOR |
110-120 / 20A HE |
| Part number |
241115.805 |
241119.805 |
| INPUT DATA |
| Voltage range (nominal) |
185 - 275 V AC/ DC |
176 - 277 V AC 1) |
| Voltage range |
85 - 300 V AC/ DC |
85 - 305 V A 1)
C
|
| Frequency |
0 - 66 Hz |
45 - 66 Hz |
| Maximum current |
11.9 A RMS |
18.64 ARMS |
| Power Factor |
0.99 (@ 50-100 % load) |
0.99 (@ 50-100 % load) |
| THD (@ 230 VAC) |
< 5 % (@ full load) |
< 4 % (@ full load) |
| Protection |
Varistor for transient protection, fuse in both lines, shutdown above 300/ 305 V |
| OUTPUT DATA |
| Default voltage |
122.5 VDC |
| Voltage range |
89.22) - 171.6 VDC |
90.02) - 151.25 VD 1)
C
|
| # Pb cell supported (1.8 - 2.4 V DC/ cell) |
54 - 71 |
54 -60 |
| # NiCad cell supported (1.05 - 1.65 V DC/ cell) |
85 - 104 |
86 - 91 |
| Max power, nominal input |
2000 W |
3025 W1) |
| Max power, 85V input |
850 W |
1280 W |
| Max current |
16.7 A |
20 A |
| Hold-up time, default voltage and 1500 W load |
20 ms, VOUT > 99.7 VDC |
10 ms, VOUT > 99.7 VDC |
| Current sharing |
±5% of maximum current from 10 to 100% load |
| Static voltage regulation |
±0.5% from 10% to 100% load and nominal input |
| Dynamic voltage regulation |
±5.0% for 10-80% or 80-10% load variation, regulation time < 50ms |
| Rippel and noise, 30 MHz bandwidth |
< 500 mV PP |
| Protection |
Overvoltage shutdown, short circuit proof, high temperature, hot plug -in inrush current limiting, ORing diode |
| OTHER SPECIFICATIONS |
| Efficiency |
> 94% |
> 94% |
| Isolation |
3.0 kVAC – input and output, 1.5 kV AC – input earth, 1.5 kV DC – output earth 3 kVAC CAN – input, 3kVAC CAN – output |
| Alarms (Red LED) |
Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure |
| Warnings (Yellow LED) |
Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage |
| Normal (Green LED) |
Input and output ok |
| MTBF (Telcordia SR-332 Issue I method III (a)) |
>391 000h (@T AMBIENT= 25°C) |
>400 000h (@T AMBIENT= 25°C) |
| Operating temperature (5 - 95% RH non-cond.) Output power de-rates above temp / to |
-40 to +75°C [ -40 to +167°F]
+55°C / 1350W @ +75°C
|
-40 to +75°C [ -40 to +167°F]
+50°C / 1150 W @ +75°C
|
| Storage temperature |
-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensions[WxHxD] / Weight |
109 x 41.5 x 327mm (WxHxD) [4.25 x 1.69 x 13”] / 1.950 kg [4.3lbs] |
| DESIGN STANDARDS |
| Electrical safety |
UL 60950 -1, EN 60950 -1, CSA 22.2 |
| EMC |
ETSI EN 300 386 V.1.3.2
EN 61000-6-1 / -2 / -3 / -4 / -5
|
| Mains Harmonics |
EN 61000 -3-2 |
| Environment |
ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2)
ETSI EN 300 132-2
2011/ 65/ EU (RoHS) & 2008/ 98/EC (WEEE)
|
|
Marine compliance
(EMC class B with AC filter)
|
DnV Rules for Classification of Ships, High Speed & Light Craft and DnV Offshore Standards |
-
|
|
1) Specification valid for HW version 2 and newer. For older revision see DS:24111x.805.DS3 ver1.
2) Output voltage will increase at light loads (< 1.6A)
|
