Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w

1
MOQ
1 USD
Price
Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: DPU40D-N06A3
Capacity: 2000 W
Weight: Approx. 7.5 Kg
Dimensions (H X W X D): 400 X 60 X 300 Mm
Input Voltage: AC: 85 V–300 V
Maximum Parallel Qty.: 4 Pcs
Communication: South: 2 X CAN; North: 1 X 4 Wires RS485/MBUS
Protection Rating: IP65
Highlight:

Dpu40d-n06a3 Rectifier Module

,

48v 2000w Rectifier Module

,

48v Outdoor power Rectifier Module

Basic Infomation
Place of Origin: China
Brand Name: Huawei
Certification: CE UL
Model Number: DPU40D-N06A3
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 5-10 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000 pcs per month
Product Description

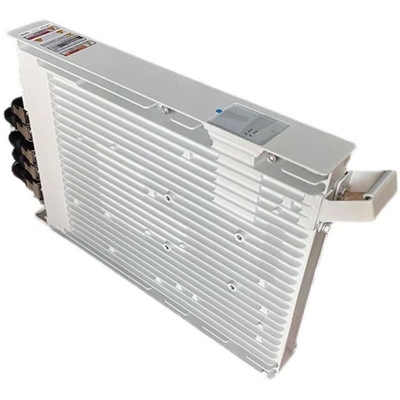

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 0

While the Blade Power module integrates the rectifier, monitoring, power distribution, and surge protection, the lithium battery itself integrates the Battery Management System (BMS), power distribution, and surge protection. Blade Power has no fans and supports natural heat dissipation. It can be mounted on a pole or a wall, and on both channel and angle steel. Intelligent voltage boosting and intelligent parallel connection simplifies site deployment and enables intelligent power management.



Specification


Parameter

DPU40D-N06A3

DBU20B-N12A3

DBU50B-N12A1

Capacity

2000 W

20 Ah/960 Wh

50 Ah/2400 Wh

Weight

Approx. 7.5 kg

Approx. 20 kg

Approx. 26 kg

Dimensions (H x W x D)

400 x 60 x 300 mm

420 x 120 x 300 mm

420 x 120 x 300 mm

Cycling Times


1200 times (charge: rated 4 A, maximum 10 A; discharge: 2200 W; DOD: 100%, 35°C)

1200 times (charge: rated 10 A, maximum 25 A; discharge: 3000 W; DOD: 100%, 35°C)

Input Voltage

AC: 85 V–300 V, 110 V dual-live HVDC: 90 V–400 V

48 V DC

48 V DC

Maximum Parallel Qty.

4 pcs

8 pcs

8 pcs

Communication

South: 2 x CAN; North: 1 x 4 wires RS485/MBUS

2 x CAN/MBUS

2 x CAN/MBUS

DC Distribution

DC: 3 x 40 A (with 40 A replaceable fuse) battery port: 1 x 40 A

2 x 80 A quick plug terminals

2 x 80 A quick plug terminals

Protection Rating

IP65

IP65

IP65



Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 1

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 2

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 3

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 4

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 5

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 6

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 7

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 8


Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 9

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 10

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 11

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 12

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 13

Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 11


Outdoor Power Rectifier Module DPU40D-N06A3 48v 2000w 15

Solutions

We offer all-encompassing solutions tailored for telecommunication companies, both within and beyond China's borders. Our services span from in-depth site surveys to crafting bespoke, professional plans that align precisely with customer demands. Alongside, we provide unwavering technical support and comprehensive maintenance services. With a highly skilled team and a global network of reliable partners, we stand out as a one-stop solution provider.


FAQ :

  1. Q: How do you ensure product quality?
    A: All products undergo rigorous testing before shipment, including simulated usage scenarios, load/full-load testing, and current sharing analysis to validate performance stability.
  2. Q: What's your minimum order quantity (MOQ)?
    A: We have no strict MOQ—even single-unit orders are acceptable. Pricing and lead times may vary based on quantity.
  3. Q: Could you provide a company introduction?
    A: Certainly! I’ll share our detailed company profile document, which covers our history, certifications, and operational capabilities for a comprehensive overview.
  4. Q: What are your company’s core advantages?
    A: Key strengths include robust inventory management for consistent supply, and tailored solutions designed to meet diverse customer requirements flexibly.
  5. Q: Can I request samples with pricing?
    A: Samples are available upon request. Sample pricing aligns with bulk orders, and freight costs are the responsibility of the recipient.
