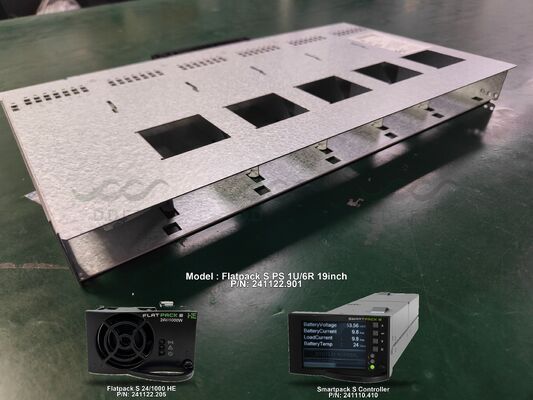

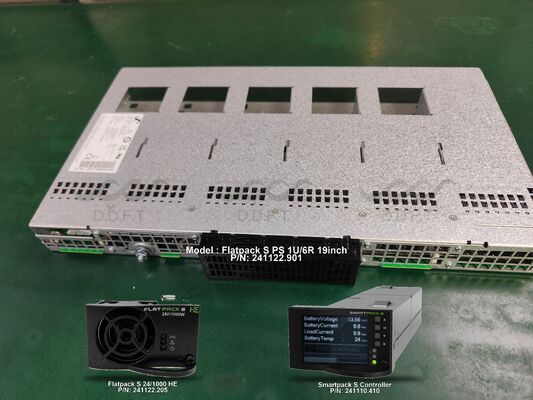

Eltek Flatpack S 24V 1U 19-Inch DC Power System (P/N 241122.901) with Flatpack S 24/1000 HE Rectifiers & Smartpack S Controller

The Eltek Flatpack S 1U 19-inch DC Power System provides an industry-leading, space-saving power

solution tailored for space-constrained telecom and industrial applications. Built upon the robust

Flatpack S PS 1U/6R shelf (P/N: 241122.901), this integrated system accommodates up to multiple

Flatpack S 24/1000 HE (P/N: 241122.205) hot-swappable rectifier modules and the advanced

Smartpack S Controller (P/N: 242100.410 / 242100.415).

Delivering up to 2–6 kW in less than 6 liters of rack space, the system operates across a wide

AC/DC input range (85–305V) and outputs reliable 24V DC power with 92.5% peak efficiency.

With intelligent remote web/SNMP management, comprehensive battery test routines, and advanced low-voltage disconnect (LVD),

the Flatpack S system minimizes total cost of ownership (TCO) while guaranteeing continuous uptime for mission-critical networks.

Key Feature:

• Ultra-Compact 1U Form Factor: 19-inch rack shelf with only 265mm depth, ideal for shallow outdoor cabinets and tight enclosures.
• High-Efficiency Rectification: 92.5% peak efficiency with active power factor correction (PFC > 0.99) reducing heat and energy loss.
• Hot-Pluggable Modularity: True hot-swap rectifiers and controller with mechanical voltage keying for zero-downtime maintenance.
• Comprehensive Remote Management: Embedded Ethernet port supporting SNMP v3 (traps/GET/SET), HTTP/SSL web browser interface, and MODBUS protocols.
• Intelligent Battery Health Management: Real-time battery quality monitoring, automatic discharge testing, and configurable LVD protection.
• Industrial-Grade Reliability: Telcordia MTBF > 300,000 hours with built-in OR-ing diode protection and wide operating range (-40°C to +85°C).

Applications

• Telecom Wireless: 4G/LTE/5G Radio Base Stations, Cell Sites, Distributed Antenna Systems (DAS), and Broadband Access.
• Fixed Networks: Fiber Optics (FTTx), Microwave Backhaul Links, and Cable Headends.
• Industrial Automation: Power distribution control, PLC backup systems, and Process SCADA networks.
• Enterprise Edge: Micro data rooms, outdoor telecom enclosures, and off-grid hybrid power sites.

Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service

in and out of China. We have a competent team and a network of trusted Partners around the world.
