19" 2U Rack Mount 6KVA Pure Sine Wave Inverter with 125VDC Input and 220VAC Output Server UPS

1 piece
MOQ
1 USD
Price
19" 2U Rack Mount 6KVA Pure Sine Wave Inverter with 125VDC Input and 220VAC Output Server UPS
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: 19 Inch Rack Mount Inverter
Capacity: 6Kva/4800w
Input Voltage: 100~150Vdc
Output Voltage: 220VAC (Inverter Mode)
Controller: LCD Screen
Output Current: 21.8A
Highlight:

6KVA Pure Sine Wave Inverter

,

125VDC Input Server UPS

,

220VAC Output DC AC Inverter
Basic Infomation
Place of Origin: CN
Brand Name: Custom made
Certification: CE/UL
Model Number: Inverter system
Document: Brochures 125Vdc 220Vac 6KV...er.pdf
Payment & Shipping Terms
Packaging Details: wooden cartons
Delivery Time: 8-10 weeks
Payment Terms: L/C,T/T
Supply Ability: 150 pieces per month
Product Description
19" 2U Rack Mount 6KVA Pure Sine Wave Inverter - 125VDC Input 220VAC Output | 4800W Server UPS with C13 Sockets
19-inch 2U rack mount inverter front view
Ding Ding Future Technology Co., Ltd. — Reliable Power, Delivered End to End

Powering IT facilities, manufacturing plants, telecom networks, power utilities, metro systems and railways — that is what Ding Ding Future Technology Co., Ltd. does best. Drawing on solid, field-proven experience in solar energy, data centers and emergency power, we assemble complete turnkey AC/DC solutions that remove the hassle from procurement and keep every stage of execution on track. We work as your committed partner, prepared to handle whatever a project throws at us.

  • DC Power System — 24V-220V, available in indoor and outdoor versions
  • AC Inverter System — 48V-220V
  • Spare Parts — ready to ship, ensuring prompt after-sales support

Engineered for critical telecom infrastructure, this 19-inch 2RU inverter converts 125VDC battery bank power into 220VAC 60Hz pure sine wave output. Delivering 6KVA (4800W) of continuous power, it features 4 standard IEC C13 sockets for seamless connectivity to radios, routers, and BTS controllers. Equipped with an intelligent LCD display, RS485/SNMP communication, and a built-in ATS bypass, it ensures 24/7 uptime even during grid failures. The robust metal chassis fits standard racks, making it the ultimate DC-AC solution for unattended base stations.

Use Cases
  • Railway Track-Side Signaling
  • Substation Automation
  • Oil & Gas Monitoring Equipment
  • Industrial PLC/SCADA Systems


Technical Specifications
Parameter 125/220-3KVA 125/220-2KVA 125/220-1KVA
INPUT
Battery Input Voltage 100~150Vdc - -
Battery Voltage Range 125Vdc - -
DC Input Current 30A Max 20A Max 10A Max
Bypass Input Voltage 220Vac Normal - -
Bypass Voltage Range 170~270Vac - -
AC Input Frequency 50Hz/60Hz - -
Frequency Range 43~67Hz - -
PF >0.8 - -
OUTPUT
Output Capacity 3000VA 2000VA 1000VA
Rated Output Capacity 2400W 1600W 800W
Rated Output Voltage 220VAC (Inverter Mode) - -
Rated Output Current 10.9A 7.27A 3.63A
Output Voltage Range 220Vac(Tolerance ±1.5% @Inverter Mode) - -
Output Efficiency ≥85% (Inverter Mode) - -
Output Frequency 50Hz/60Hz - -
Output Wave Pure sine wave - -
THD ≤3% (Line Load) - -
Switch Time (Bypass to Inverter mode) ≤5ms (With Load) - -
PROTECTIVE FEATURE
AC Under Voltage Switch Protection ≤176Vac (Backlash voltage≥10Vac) - -
AC Over Voltage Switch Protection ≥264AC - -
Over-Temperature Yes (Auto Switch) - -
Battery Under Voltage Protection Point ≤95VDC - -
Battery Low-voltage Alarm 90VDC±0.5 - -
Battery Overvoltage Protection Point ≥155VDC - -
Battery Overvoltage Recovery Point ≤150VDC - -
OUTPUT OVER CURRENT PROTECTION
Over Load Capacity Continue working 60s @ 101%<load<120% - -
Over Load Capacity Continue working 10s @ 121%<Load<150% - -
Over Temp. Protection Yes - -
Short Circuit Protection Yes (Don't test under AC Connect) - -
Reverse Connection Protection Yes - -
Output OVP ≥264VAC(Inverter Mode) - -
Output Low Voltage Alarm ≤176VAC (Inverter Mode) - -
Parameter BWT125/220-6KVA BWT125/220-5KVA BWT125/220-4KVA
INPUT
Battery Input Voltage 100~150Vdc - -
Battery Voltage Range 125Vdc - -
DC Input Current 60A Max 50A Max 40A Max
Bypass Input Voltage 220Vac Normal - -
Bypass Voltage Range 170~270Vac - -
AC Input Frequency 50Hz/60Hz - -
Frequency Range 43~67Hz - -
PF >0.8 - -
OUTPUT
Output Capacity 6000VA 5000VA 4000VA
Rated Output Capacity 4800W 4000W 3200W
Rated Output Voltage 220VAC (Inverter Mode) - -
Rated Output Current 21.8A 18.18A 14.54A
Output Voltage Range 220Vac(Tolerance ±1.5% @Inverter Mode) - -
Output Efficiency ≥85% (Inverter Mode) - -
Output Frequency 50Hz - -
Output Wave Pure sine wave - -
THD ≤3% (Line Load) - -
Switch Time (Bypass to Inverter mode) ≤5ms (With Load) - -
PROTECTIVE FEATURE
AC Under Voltage Switch Protection ≤176Vac (Backlash voltage≥10Vac) - -
AC Over Voltage Switch Protection ≥264AC - -
Over-Temperature Yes (Auto Switch) - -
Battery Under Voltage Protection Point ≤95VDC - -
Battery Low-voltage Alarm 90VDC±0.5 - -
Battery Over Voltage Protection Point ≥155VDC - -
Battery Over Voltage Recovery Point ≤150VDC - -
OUTPUT OVER CURRENT PROTECTION
Over Load Capacity Continue working 60s @ 101%<load<120% - -
Over Load Capacity Continue working 10s @ 121%<Load<150% - -
Over Temp. Protection Yes - -
Short Circuit Protection Yes (Don't test under AC Connect) - -
Reverse Connection Protection Yes - -
Output OVP ≥264VAC(Inverter Mode) - -
Output Low Voltage Alarm ≤176VAC (Inverter Mode) - -
SAFETY AND EMC
Dielectric strength (AC-Chassis) 3500Vdc/10mA//1min .No flash over, no breakdown, no arc (Only AC Input priority) - -
Dielectric strength (DC-Chassis) 750Vdc/10mA/1min. No flash over, no breakdown - -
LVD EN 60950-1 - -
EMC/EMI EN 61000-6-3; EN 61000-6-1 ;IEC 61000-6-2 and IEC 61000-6-4 - -
ROHS IEC 62321-4 , IEC 62321-5,IEC 62321-6,IEC 62321-7,IEC 62321-8 - -

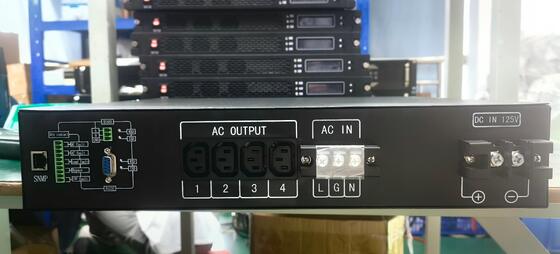

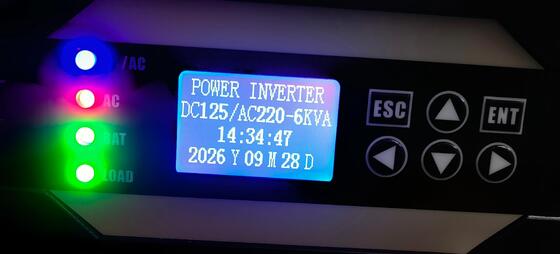

Inverter internal components and construction Inverter rear panel connections Inverter side view and mounting Inverter front panel detail Inverter display and controls Technical diagram 1 Technical diagram 2 Technical diagram 3 Technical diagram 4 Technical diagram 5 Inverter installation example Inverter in rack configuration Inverter cable management Inverter quality testing Inverter packaging and shipping
Complete Solutions

We provide complete solutions including site survey, propose professional plan according to customer's request, technical support, and maintenance service in and out of China. We have a competent team and a network of trusted Partners around the world.

Frequently Asked Questions
Q: Can this inverter run on a 125VDC telecom battery bank?
A: Yes, it is specifically designed for 125VDC nominal input (compatible with lead-acid or lithium DC screens) and outputs stable 220VAC 60Hz.
Q: Does it support remote monitoring?
A: Yes, standard RS485 and optional SNMP allow real-time monitoring of voltage, load, and status via NMS.
Q: What happens if the DC fails?
A: The built-in Auto Transfer Switch (ATS) seamlessly switches to AC mains bypass (220VAC IN) to keep the load powered.
