6KVA 125VDC to 220VAC Rack Mount Inverter 4800W Pure Sine Wave Telecom Power Supply with 4 Pcs C13 Outlets Custom made

Ding Ding Future Technology Co., Ltd. — Reliable Power, Delivered End to End

Powering IT facilities, manufacturing plants, telecom networks, power utilities, metro systems and railways —

that is what Ding Ding Future Technology Co., Ltd. does best. Drawing on solid, field-proven experience in solar energy,

data centers and emergency power, we assemble complete turnkey AC/DC solutions that remove the hassle from

procurement and keep every stage of execution on track. We work as your committed partner, prepared to handle whatever a project throws at us.

Core Products

• DC Power System — 24V–220V, available in indoor and outdoor versions
• AC Inverter System — 48V–220V
• Spare Parts — ready to ship, ensuring prompt after-sales support

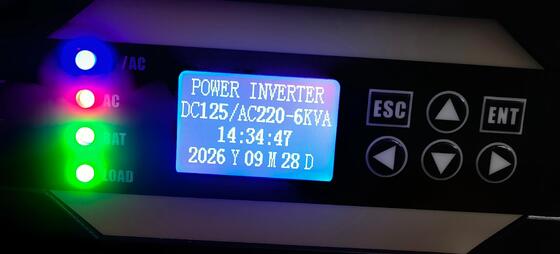

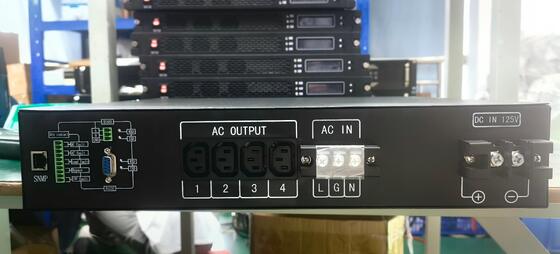

Engineered for critical telecom infrastructure, this 19-inch 2RU inverter converts 125VDC battery bank power into 220VAC 60Hz pure sine wave output. Delivering 6KVA (4800W) of continuous power, it features 4 standard IEC C13 sockets for seamless connectivity to radios, routers, and BTS controllers. Equipped with an intelligent LCD display, RS485/SNMP communication, and a built-in ATS bypass, it ensures 24/7 uptime even during grid failures. The robust metal chassis fits standard racks, making it the ultimate DC-AC solution for unattended base stations.

Use Cases:

• 4G/5G Mobile Tower Backup
• Fiber Optic Transmission Nodes
• Remote Telecom Shelters
• Microwave Link Stations

Parameters:

Parameter	BWT125/220-6KVA	BWT125/220-5KVA	BWT125/220-4KVA
INPUT​
Battery Input Voltage	100~150Vdc	-	-
Battery Voltage Range	125Vdc	-	-
DC Input Current	60A Max	50A Max	40A Max
Bypass Input Voltage	220Vac Normal	-	-
Bypass Voltage Range	170~270Vac	-	-
AC Input Frequency	50Hz/60Hz	-	-
Frequency Range	43~67Hz	-	-
PF	>0.8	-	-
OUTPUT​
Output Capacity	6000VA	5000VA	4000VA
Rated Output Capacity	4800W	4000W	3200W
Rated output Voltage	220VAC (Inverter Mode)	-	-
Rated Output Current	21.8A	18.18A	14.54A
Output Voltage Range	220Vac(Tolerance ±1.5% @Inverter Mode)	-	-
Output Efficiency	≥85% (Inverter Mode)	-	-
Output Frequency	50Hz	-	-
Output Wave	Pure sine wave	-	-
THD	≤3% (Line Load)	-	-
Switch Time (By pass to Inverter mode)	≤5ms (With Load)	-	-
PROTECTIVE FEATURE​
AC Under Voltage Switch Protection	≤176Vac (Backlash voltage≥10Vac)	-	-
AC over Voltage Switch protection	≥264AC	-	-
Over-Temperature	Yes (Auto Switch)	-	-
Battery under voltage protection point	≤95VDC	-	-
Battery Low-voltage alarm	90VDC±0.5	-	-
Battery over voltage protection point	≥155VDC	-	-
Battery over voltage recovery point	≤150VDC	-	-
OUTPUT OVER CURRENT PROTECTION​
Over Load Capacity	Continue working 60s @ 101%<load<120%	-	-
Over Load Capacity	Continue working 10s @ 121%<Load<150%	-	-
Over Temp. Protection	Yes	-	-
short circuit Protection	Yes (Don't test under AC Connect)	-	-
Reverse connection protection	Yes	-	-
Output OVP	≥264VAC(Inverter Mode)	-	-
Output low voltage alarm	≤176VAC (Inverter Mode)	-	-
SAFETY AND EMC​
Dielectric strength (AC-Chassis)	3500Vdc/10mA//1min .No flash over, no breakdown, no arc (Only AC Input priority)	-	-
Dielectric strength (DC-Chassis)	750Vdc/10mA/1min. No flash over, no breakdown	-	-
LVD	EN 60950-1	-	-
EMC/EMI	EN 61000-6-3; EN 61000-6-1 ;IEC 61000-6-2 and IEC 61000-6-4	-	-
ROHS	IEC 62321-4 , IEC 62321-5,IEC 62321-6,IEC 62321-7,IEC 62321-8

Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service

in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :

Q: Can this inverter run on a 125VDC telecom battery bank?

A: Yes, it is specifically designed for 125VDC nominal input (compatible with lead-acid or lithium DC screens) and outputs stable 220VAC 60Hz.

Q: Does it support remote monitoring?

A: Yes, standard RS485 and optional SNMP allow real-time monitoring of voltage, load, and status via NMS.

Q: What happens if the DC fails?

A: The built-in Auto Transfer Switch (ATS) seamlessly switches to AC mains bypass (220VAC IN) to keep the load powered.
