Name: Hybrid Solar Rectifier System 36KW 48Vdc 12.8Kw Solar Capacity FP2 48/3000HE Rectifier Module FP2 48/3200HE Solar ( 241119.650 )
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: FP2 36KW
Price: 1,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Hybrid Solar Rectifier System

Capacity: FP2 48V 36KW+12.8KW

Solar Module: FP2 48/3200HE SOLAR

Rectifier Module: Flatpack2 48/3200HE

Controller: Smartpack2 Controller ( Touch + I/O Monitor + Basic )

Package: Wooden Box

Basic Infomation

Place of Origin: CN

Brand Name: Eltek or Custom made

Certification: CE/UL

Model Number: FP2 36KW

Document: ds-241119.650.ds3-1-2-1.pdf

Payment & Shipping Terms

Packaging Details: wooden cartons

Delivery Time: 8-10 weeks

Payment Terms: L/C,T/T

Supply Ability: 150 pieces per month

Gallery

Hybrid Solar Rectifier System 36KW 48Vdc 12.8Kw Solar Capacity FP2 48/3000HE Rectifier Module FP2 48/3200HE Solar ( 241119.650 )

Product Description

Hybrid Solar Rectifier System 36KW 48Vdc 12.8Kw Solar Capacity FP2 48/3000HE Rectifier Module FP2 48/3200HE Solar ( 241119.650 )

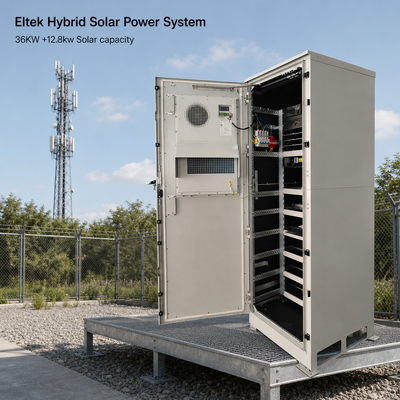

This outdoor hybrid telecom power cabinet integrates a modular 48V DC power core with solar charging

capability in one factory-assembled, air-conditioned outdoor enclosure. Built on the proven Flatpack2 (FP2) platform,

the system combines up to 12 rectifier slots and 4 solar charger slots to deliver 36kW AC-fed rectification plus 12.8kW photovoltaic input in a single 19" rack layout.

The cabinet is delivered with 5× Flatpack2 48/3000 HE rectifier modules (15kW installed) and 2× Flatpack2 48/3200 HE solar charger modules (6.4kW installed), ready for hot-swap expansion to the full 36kW + 12.8kW capacity. Power flow is managed by a Smartpack2 Touch + Smartpack2 Basic + Type 2 I/O monitor controller with remote monitoring capability.

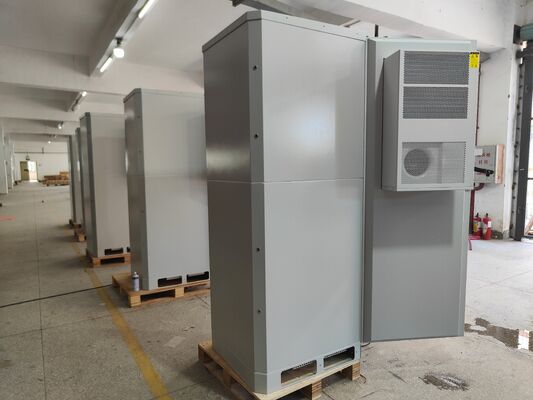

Built for harsh outdoor environments, the Type 3 enclosure (2,000H × 700W × 1,050D mm incl. plinth) is cooled by an integrated 48V DC air conditioner so the system keeps operating even during mains outages. Safety layers include a C80A/4P mains breaker, Type C 3+NPE 275V AC surge protection (20/40kA), a 2U PV connection panel with DC SPD, 6× 100A battery breakers, and dedicated LVBD (600A) / LVLD (300A) low-voltage disconnection for battery and load protection.

Key features:

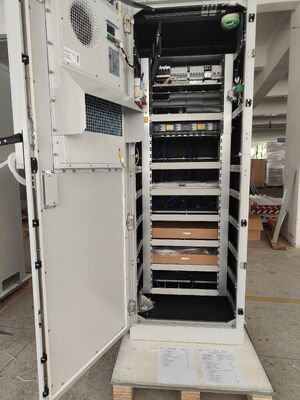

All-in-one outdoor site power: rectifier + solar charger + controller + distribution + Li-ion battery shelves in one 2m Type 3 cabinet
True hybrid design — grid (3-phase 400V+N+PE) and photovoltaic input managed in one power core
Modular & hot-swappable Flatpack2 HE modules: up to 12× 3kW rectifiers (36kW) + up to 4× 3.2kW solar chargers (12.8kW)
Smartpack2 monitoring suite: battery management, LVD control, alarms, temperature compensation via 3m battery temperature sensor
Complete protection: AC SPD, DC SPD, battery breakers (6× 100A), LVBD 600A / LVLD 300A, door alarm & smoke detector
100% factory acceptance tested (visual, insulation, start-up, calibration, controller & alarm functional tests)
12-month quality warranty

Application Scope

Outdoor telecom base stations (BTS/NodeB/eNodeB) — macro, micro and distributed sites
Telecom tower companies and site operators deploying grid + solar hybrid energy sites
Rural, desert and remote communication sites where grid supply is unstable
Solar-assisted telecom sites reducing grid energy and diesel generator consumption
DC power for transportable or containerized communication systems
General 48V DC loads: transmission equipment, microwave links, small-cell backhaul, monitoring systems

Technical Parameters

Parameter	Specification
System model	FP2 48V 36kW+12.8kW 400V+N BDLD SPD T3 solar cabinet
System type	Outdoor hybrid (grid + solar) 48V DC telecom power system, 19" rack integrated
Cabinet	Type 3 outdoor cabinet, 2,000H × 700W × 1,050D mm (incl. plinth)
Cabinet cooling	Integrated 48V DC air conditioner (3,000W class); fan & filter ventilation option
AC mains input	3-phase 400V + N + PE
Mains protection	Input breaker 80A/4P (C-curve); AC SPD Type C, 3+NPE, 275V, 20/40kA
Rectifier slots	Up to 12× Flatpack2 48/3000 HE — max 36kW
Rectifier as supplied	5× Flatpack2 48/3000 HE (15kW installed), hot-swap expandable
Solar charger slots	Up to 4× Flatpack2 48/3200 HE — max 12.8kW
Solar charger as supplied	2× Flatpack2 48/3200 HE (6.4kW installed)
PV input panel	2U PV connection panel with 4× DC SPD
Controller	Smartpack2 Touch + Smartpack2 Basic + Type 2 I/O monitor
DC bus voltage	48V DC nominal (54.5V DC float)
Battery shelves	4× 3U 19" Li-ion battery shelves supplied (platform supports up to 6)
Battery breakers	6× 100A/1P
Battery protection	LVBD 600A contactor; LVLD 300A contactor
Load distribution	Priority: 2×C32A/1P, 2×C16A/1P, 2×C10A/1P; Non-priority: 2×C100A/1P, 2×C63A/1P, 3×C16A/1P (Nader), up to 18 poles
Battery temperature	3m battery temperature sensor ×1
Battery cabling	4 groups, 25mm² (power core to battery shelves)
Site management	Door alarm, smoke detector, DC service lamp; aircon MCB 25A/1P; DC light & smoke MCB 2A/1P
Factory test	100% FAT: visual, insulation, start-up, output calibration, controller function (incl. LVD, PV MCB & PV SPD alarms, aircon & sensor tests)
Warranty	12 months

Hybrid Solar Rectifier System 36KW 48Vdc 12.8Kw Solar Capacity FP2 48/3000HE Rectifier Module FP2 48/3200HE Solar ( 241119.650 )

Hybrid Solar Rectifier System 36KW 48Vdc 12.8Kw Solar Capacity FP2 48/3000HE Rectifier Module FP2 48/3200HE Solar ( 241119.650 )
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service

in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
