Name: 48V 5.5KW Hybrid Solar Inverter with 100A MPPT and LiFePO4 Compatibility for Smart Energy Systems
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: BWT25005.5KSO
Price: 399.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: BWT25005.5KSO

Parallel Capability: YES,12 Units

Lithium Battery Activation: YES(RS485)

Input Nominal Voltage 230VAC Acceptable Voltage: 230VAC

Acceptable Voltage Range: 170-280VAC(For Personal Computer);90-280vac(For Home Appliances)

Frequency: 50/60 Hz(Auto Sensing)

Wave Form: Pure Sine Wave

Highlight:

5.5KW Hybrid Solar Inverter

LiFePO4 Compatible Solar Charge Module

100A MPPT Inverter

Basic Infomation

Place of Origin: CN

Brand Name: Ding Future

Certification: CE

Model Number: BWT25005.5KSO

Document: Brochures 48VDC 220VAC 5.5K...er.pdf

Payment & Shipping Terms

Packaging Details: cartons

Delivery Time: 3-4 weeks

Supply Ability: 1500pieces / month

Gallery

48V 5.5KW Hybrid Solar Inverter with 100A MPPT and LiFePO4 Compatibility for Smart Energy Systems

Product Description

48V 5.5KW Hybrid Solar Inverter with MPPT 100A and LiFePO4 Compatible for Smart Energy System

The BWT25005.5KSO hybrid inverter stands out with its ability to operate without a battery, directly converting solar power to AC output—ideal for users seeking a simplified, low-maintenance system.
It is fully compatible with LiFePO4 batteries and supports lithium battery activation via PV or utility power. The built-in 100A MPPT charge controller ensures optimal charging efficiency, while the 60-450VDC MPPT voltage range accommodates various solar panel configurations.
With a power factor of 1.0 and admissible power factor from 0.6 to 1 (inductive or capacitive), it safely drives a wide range of appliances. The unit also features a WiFi dongle option for remote monitoring and a detachable dust cover for harsh environments.

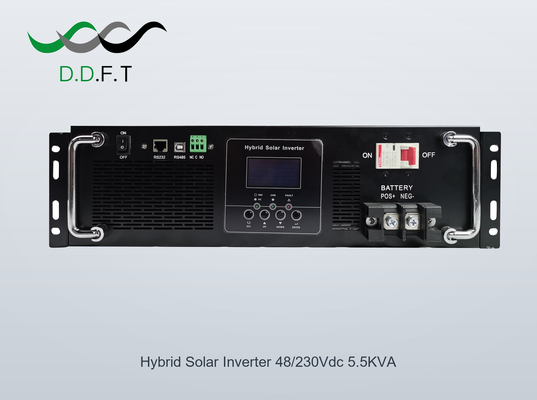

Front View

Applications

LiFePO4 battery solar systems
Batteryless solar setups
Smart home energy management
RV and marine solar power
Remote cabins
Sustainable living projects

Technical Specifications

Model	BWT25005.5KSO
Capacity	5.5KVA/5.5KW
Parallel Capability	Yes, up to 12 units
Lithium Battery Activation	Yes (by PV or Utility)
Lithium Battery Communication	Yes (RS485)

Input Specifications

Nominal Voltage	230VAC
Acceptable Voltage Range	170-280VAC (for personal computers); 90-280VAC (for home appliances)
Frequency	50/60 Hz (Auto sensing)

Output Specifications

Nominal Voltage	220/230VAC±5%
Surge Power	10000VA
Frequency	50/60Hz
Waveform	Pure Sine wave
Transfer Time	10ms (for personal computers); 20ms (for home appliances)
Peak Efficiency	94%
Overload Protection	5s @ ≥140% load; 10s @ 110%-140% load
Crest Factor	3:1
Admissible Power Factor	0.6~1 (inductive or capacitive)

Battery Specifications

Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Overcharge Protection	63VDC
Charging Method	CC/CV

Solar Charger & AC Charger Specifications

Solar Charger Type	MPPT
Max. PV Array Power	5500W
Max. PV Array Open Circuit Voltage	500VDC
PV Array MPPT Voltage Range	60VDC~450VDC
Max. Solar Input Current	18A
Max. Solar Charge Current	100A
Max. AC Charge Current	60A
Max. Charge Current	100A

Side View

Internal Components

Technical Details

Installation Example

Control Panel

Connection Points

Display Screen

Mounting Options

Complete System

Our Solutions

We provide complete solutions including site survey, professional planning according to customer's requirements, technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

Frequently Asked Questions

How do you control the quality?

All products before shipment are tested in simulated usage scenarios, including load and full load testing, and current sharing tests to ensure product quality.

What is your minimum order quantity?

There is no minimum order quantity - even single units can be ordered. The only differences are in pricing and scheduling.

Can you introduce your company?

We would be honored to provide our company introduction document, which gives a comprehensive overview of our company information.

What are the advantages of your company?

Adequate inventory and supply chain guarantees, flexible solutions tailored to different customer needs, and comprehensive service support.

Can I request samples? What about pricing?

Samples are available at sample pricing, and freight costs need to be borne by the customer.

How does your company handle quality problems?

With nearly 10 years in the industry, we have established a strong reputation. We carefully analyze any issues and if confirmed as our quality problem, we resolve it according to contract agreements with our dedicated service team.

What about the quality?

100% original with new packaging. Each item is tested before shipping to ensure good quality.

How many months for guarantee?

1 year quality guarantee.

How to deal with any inferior-quality goods?

We cover return shipping costs for any defective products within the guarantee period.
