Original Eltek CTOR0201.001 3kVA 230V 1ph Rectiverter 48V 2.4kW DC Power Supply for Telecom Systems

1 set
MOQ
2000 USD
Price
Original Eltek CTOR0201.001 3kVA 230V 1ph Rectiverter 48V 2.4kW DC Power Supply for Telecom Systems
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
AC Output Voltage: 230 VAC / 200 - 240 VAC
DC Output Voltage: 53.5 VDC / 43 - 58 VDC
Input Voltage: 185 - 275 VAC
Frequency: 47-53 & 57-63 Hz
DC Current: 64 A / 90 A During Overload (15s)
Power Factor: > 0.99 At 50% Load Or More / < 3.5%

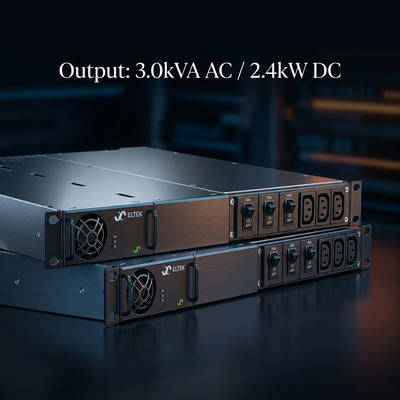

Total Output: Max 4kW (AC + DC Combined)

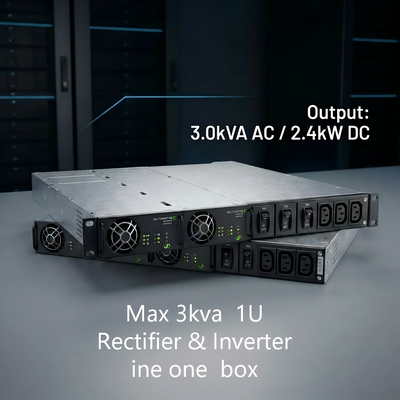

AC Output: 230VAC, Single Phase, Max 3kVA
DC Output: 48VDC, Max 2.4kW
Efficiency: Industry-leading HE (High Efficiency) Patented Technology
Highlight:

Eltek 3kVA rectiverter power supply

,

48V DC power supply for telecom

,

230V telecom rectiverter
Basic Infomation
Place of Origin: CHINA
Brand Name: ELTEK
Certification: CE
Model Number: CTOR0201.001
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 8 weeks
Payment Terms: D/A,T/T
Supply Ability: 200 sets per month
Product Description

Original Eltek CTOR0201.001 3kVA 230V 1ph Rectiverter 48V 2.4kW DC Power Supply for Telecom Systems

Original Eltek CTOR0201.001 3kVA 230V 1ph Rectiverter 48V 2.4kW DC Power Supply

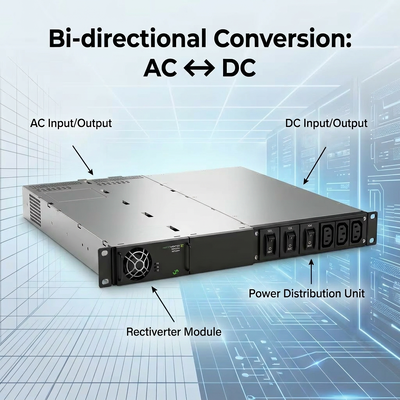

The Eltek Rectiverter CTOR0201.001 is a revolutionary 3-port converter that simultaneously provides power for both AC and DC loads. With its unique

bi-directional architecture, it eliminates the need for separate rectifiers and inverters, simplifying your power infrastructure.



  • Core Advantages:
    • 3-Port Technology: Supports AC and DC loads simultaneously with integrated transfer technology.
    • Innovative Design: Modular architecture reduces system complexity and footprint.
    • Seamless Backup: During mains outages, it feeds AC loads using energy stored in the 48V battery without interruption.
    •
  • Key Parameters:
    • Total Output: Max 4kW (AC + DC combined).
    • AC Output: 230VAC, Single Phase, Max 3kVA.
    • DC Output: 48VDC, Max 2.4kW.
    • Efficiency: Industry-leading HE (High Efficiency) patented technology.
  • Application Fields:
    • Telecom Mobile/Wireless (LTE/4G/5G, Radio Base Stations).
    • Broadband and Distributed Antenna Systems (D



Diagram Drawing:



Original Eltek CTOR0201.001 3kVA 230V 1ph Rectiverter 48V 2.4kW DC Power Supply for Telecom Systems

Original Eltek CTOR0201.001 3kVA 230V 1ph Rectiverter 48V 2.4kW DC Power Supply for Telecom Systems





Technical Specifications: Eltek Rectiverter Integration/Standalone



Item 4 kW, 230 V System (CTOR0201.001) 2 kW, 115 V System (CTOR0201.004)
AC OUTPUT DATA
Voltage (default) / (adjustable range) 230 VAC / 200 - 240 VAC 115 VAC / 100 - 127 VAC
Frequency (default inverter mode) 50 Hz (adaptive) 60 Hz (adaptive)
Frequency (set-able inverter mode) 50Hz, 60Hz or last synced 50/60Hz (adaptive) 50Hz, 60Hz or last synced 50/60Hz (adaptive)
Power maximum (continuous / overload) 2400 W (3000 VA) / 4000 VA 1200 W (1500 VA) / 2000 VA
Current maximum (continuous / overload) 13 Arms / 17.4 Arms 13 Arms / 17.4 Arms
Current (maximum) Quick trip (20ms) 64 A (6 x nominal) 64 A (6 x nominal)
Hold up (Voltage dips) 5 ms 5 ms
THD < 1.5% at resistive load < 1.5% at resistive load
Output features Fuse in L and N, Hot pluggable Fuse in L and N, Hot pluggable
DC OUTPUT DATA
Voltage (default) / (adjustable range) 53.5 VDC / 43 - 58 VDC 53.5 VDC / 43 - 58 VDC
Power (maximum @nominal input) 2400 W 1200 W
Current (maximum @nominal output VDC) 50 A 25 A
Hold up time (max output power) >10ms; Vout > 41 VDC >10ms; Vout > 41 VDC
Output features Short circuit proof, Overvoltage Shutdown Short circuit proof, Overvoltage Shutdown
INPUT DATA

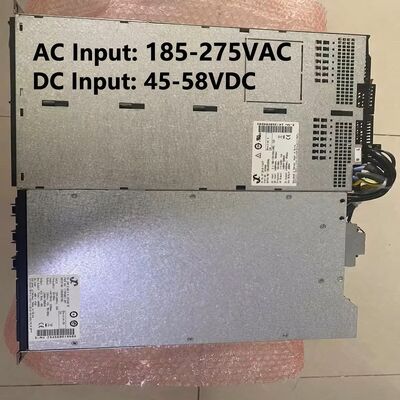

AC Mains Input Voltage (single phase) 185 - 275 VAC 95 - 140 VAC
AC Current (@nominal output voltage) 14 - 24 Arms 14 - 24 Arms
Frequency (default sync range) 47-53 & 57-63 Hz 57-63 & 47-53 Hz
Power Factor / THD > 0.99 at 50% load or more / < 3.5% > 0.99 at 50% load or more / < 3.5%
DC Voltage nominal / extended range 45 - 58 VDC / 40 - 45 VDC 45 - 58 VDC / 40 - 45 VDC
DC Current (maximum) 64 A / 90 A during overload (15s) 32 A / 45 A during overload (15s)
OTHER SPECIFICATION
Support for controller (RJ45) Smartpack2, Smartpack S & Compack Smartpack2, Smartpack S & Compack

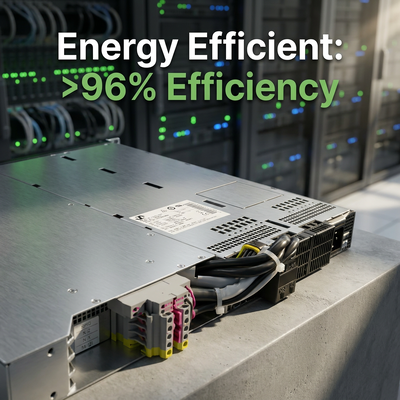

Efficiency >96% (mains mode), >94% (inverter mode) >96% (mains mode), >94% (inverter mode)
2 pole AC distribution 3pc, 10A, IEC320-C13 sockets 3pc, 10A, IEC320-C13 sockets
Protection Class IP 20 IP 20
Operating temperature -40 to +55°C (-40 to +131°F) -40 to +55°C (-40 to +131°F)
Storage temperature -40 to +85°C (-40 to +185°F) -40 to +85°C (-40 to +185°F)

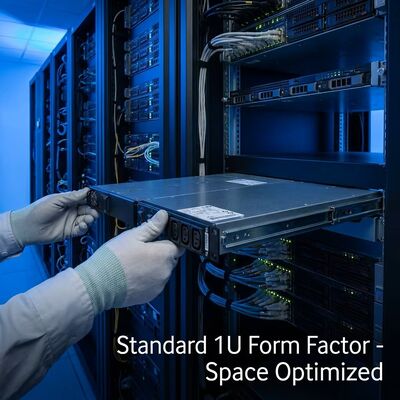

Dimensions [WxDxH] 482 x 395 x 44mm (1U) 482 x 395 x 44mm (1U)
Weight 6kg (13 lbs) 6kg (13 lbs)
