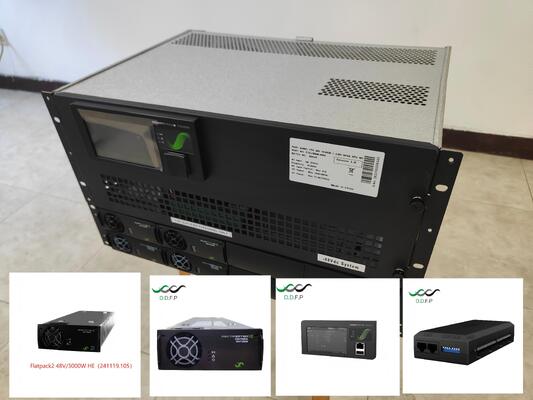

Eltek Rectiverter 5U Embedded Power System |Integrated AC & DC Supply for Telecom Data center

The Eltek Rectiverter 5U Embedded Power System is a high-density, integrated power solution designed for modern telecommunications and industrial applications. This system features the revolutionary Rectiverter (241123.100)—the world’s first 3-port bidirectional power converter—working alongside the industry-standard Flatpack2 48/3000 HE (241119.105) rectifiers.

By integrating AC and DC power into a single 5U chassis, this system eliminates the complexity of separate UPS and DC power plants. It is the ideal choice for sites requiring highly efficient 48Vdc power for radio equipment and stable 230Vac power for cooling, monitoring, or auxiliary IT servers, all with a single point of control.

1. 3-Port Bidirectional Technology (241123.100): The system utilizes Rectiverter 230/1500 48/1200 modules. Unlike traditional inverters, the Rectiverter is a 3-port device that handles AC-to-AC, AC-to-DC, and DC-to-AC conversion simultaneously. With 96% efficiency in rectifier mode and 94% in inverter mode, it ensures seamless power transition without the need for a static transfer switch (STS).
2. High- effciency Power DC module :Equipped with Flatpack2 48/3000 HE modules, providing up to 3000W of DC power per slot. This "High Efficiency" module delivers 96.5% efficiency, significantly reducing energy waste and thermal load within the cabinet.
3. 5U Integrated  hieght :
   1. Mains Input: 1ph 230Vac terminals with built-in Type 2 1+NPE SPD for superior surge and lightning protection.
   2. Advanced Battery Management: Features LVBD (Low Voltage Battery Disconnect) and 4 x 100A Battery Breakers, supporting high-capacity energy storage sets.
   3. Flexible Load Distribution: 8 x 1-pole Load Breakers (10A to 63A) to accommodate various telecom loads.
4. Intelligent Monitoring Suite: Driven by the Smartpack Touch + Basic + I/O monitor set, offering comprehensive local and remote management through a user-friendly touch interface.
