Bravo 25 Systems 48VDC / 72 kVA - 230vac 96% High Efficiency

1pcs
MOQ
Inquiry
Price
Bravo 25 Systems 48VDC / 72 kVA - 230vac 96% High Efficiency
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
System Model: 72 KVA - 3x400Vac + N
Dimension (L X W X H) Mm: 600 X 600 X 1800
Power Range (AC OUT): 9 To 72 KVA
Typical Efficiency: AC/AC – DC/AC: 96% - 93.7%
Nominal Power: 72 KVA / 57.6 KW
AC Output Data: Max. 12
Nominal Current At 230VAC / 3x400VAC: 104 A Per Phase
Nominal Voltage (range): 48 Vdc (32 – 63 Vdc*)
Nominal Current At 48Vdc: 1630 A
Basic Infomation
Place of Origin: China
Brand Name: CE+T
Certification: CE
Model Number: Bravo 25 Systems 48VDC / 230VAC
Document: CET - Systems - Datasheet -...EN.pdf
Payment & Shipping Terms
Packaging Details: Wooden cartons
Delivery Time: 5-6 weeks
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description
Bravo 25 Systems 48VDC / 230VAC or 3x400VAC + N Modular Power System for Telecom
Product Overview
Based on the Bravo ECI platform, this system delivers a compact, modular power conversion solution that generates pure sine wave AC output. When integrated with DC power systems, it provides exceptional AC backup capabilities for telecom applications.
Advanced Inverter Technology
Utilizing the latest inverter technology, this system achieves up to 96% efficiency in AC to AC conversion and over 93.7% efficiency in DC to AC conversion. The ECI architecture eliminates all single points of failure and supports hot-swappable modules for simplified, cost-effective maintenance.
Standard Configuration with Custom Options
These systems are optimized to deliver superior quality at competitive pricing. As standardized solutions, they feature reduced lead times for faster delivery. Multiple customization options are available to meet specific customer requirements, with fully customized solutions offered when standard configurations don't match your needs.
Key Features
  • Cost-effective pricing with reduced lead times
  • True redundancy across modules and power sources for maximum reliability
  • Integrated bypass function included as standard
  • Permanent AC to AC double conversion with excellent disturbance rejection
  • 96% conversion efficiency in AC to AC mode
  • Compact design for easy installation and maintenance
Technical Specifications
Bravo 25 Systems 48VDC / 72 kVA - 230vac 96% High Efficiency 0

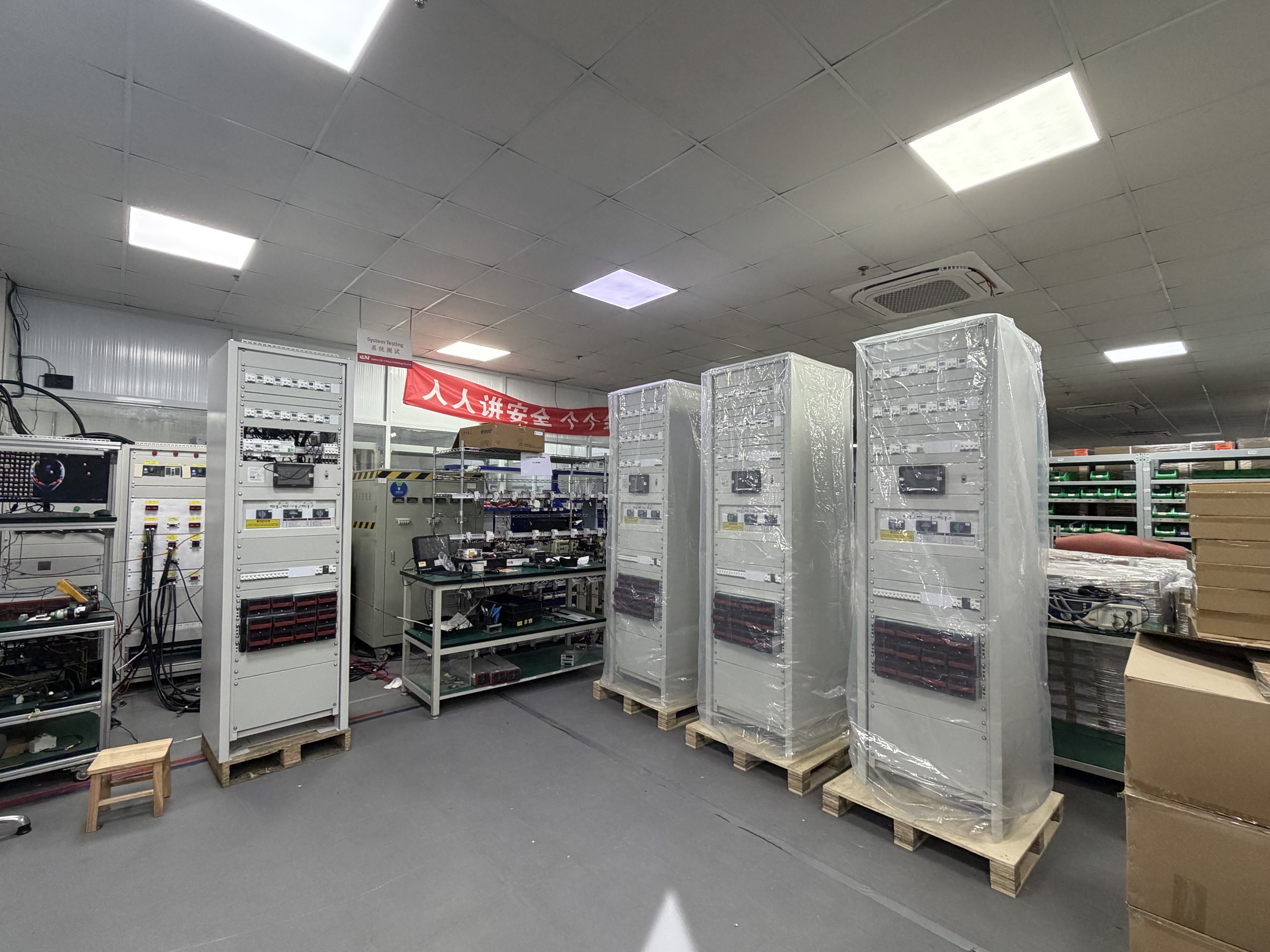

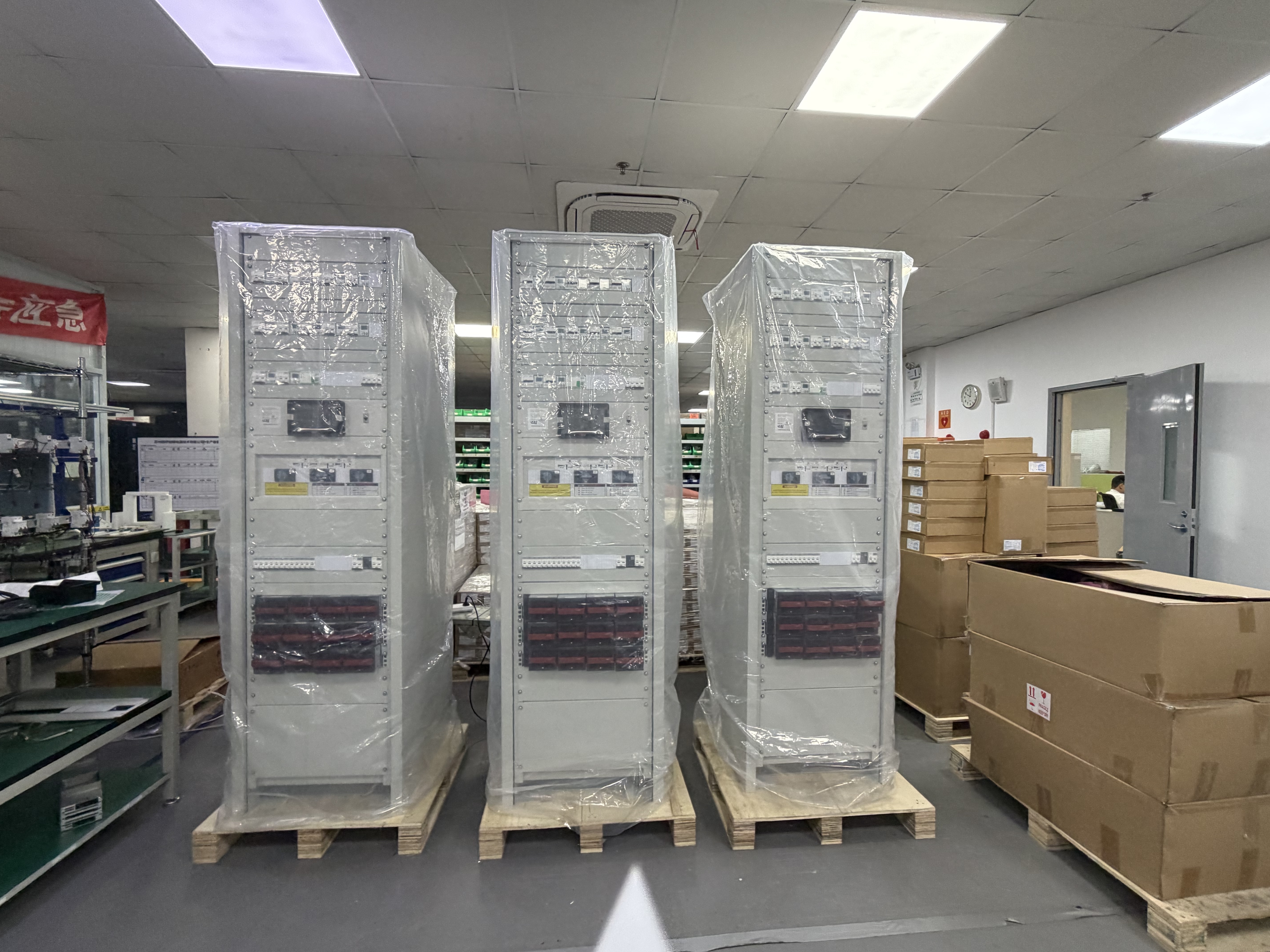

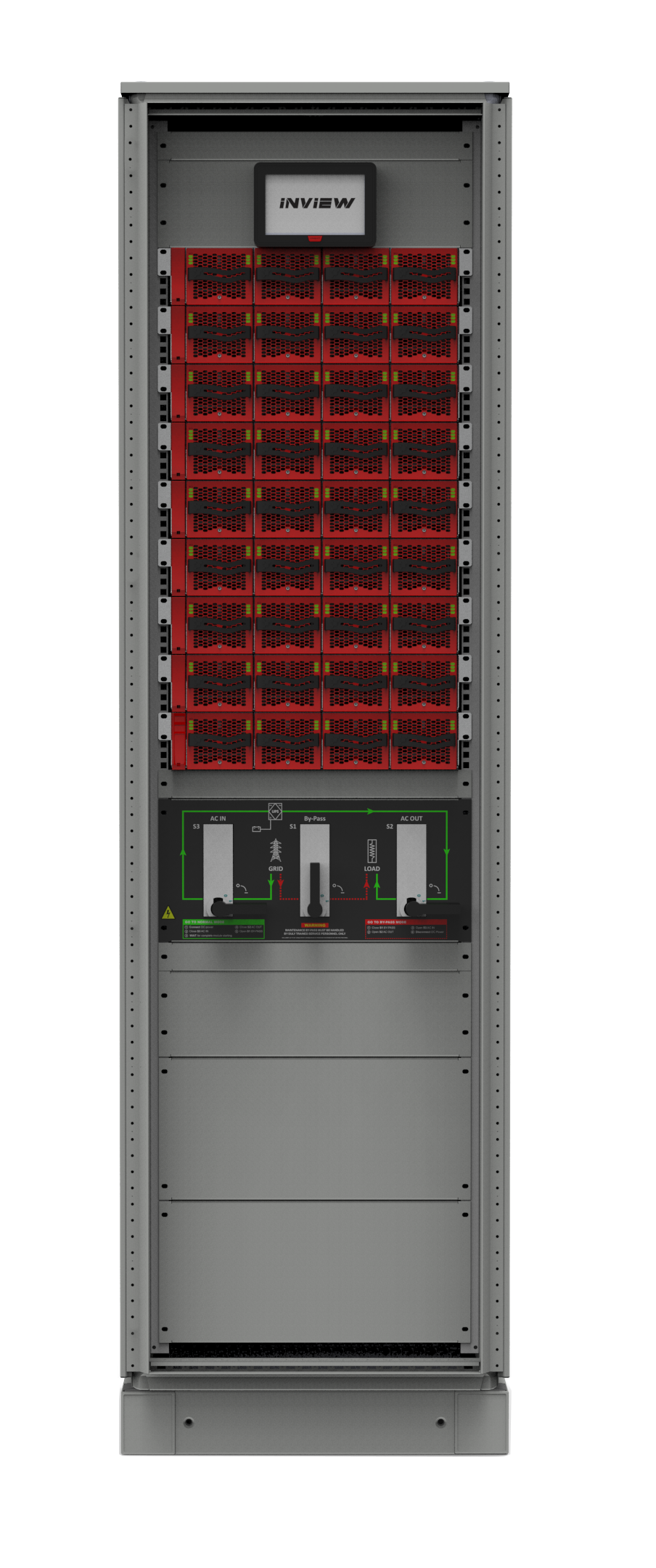

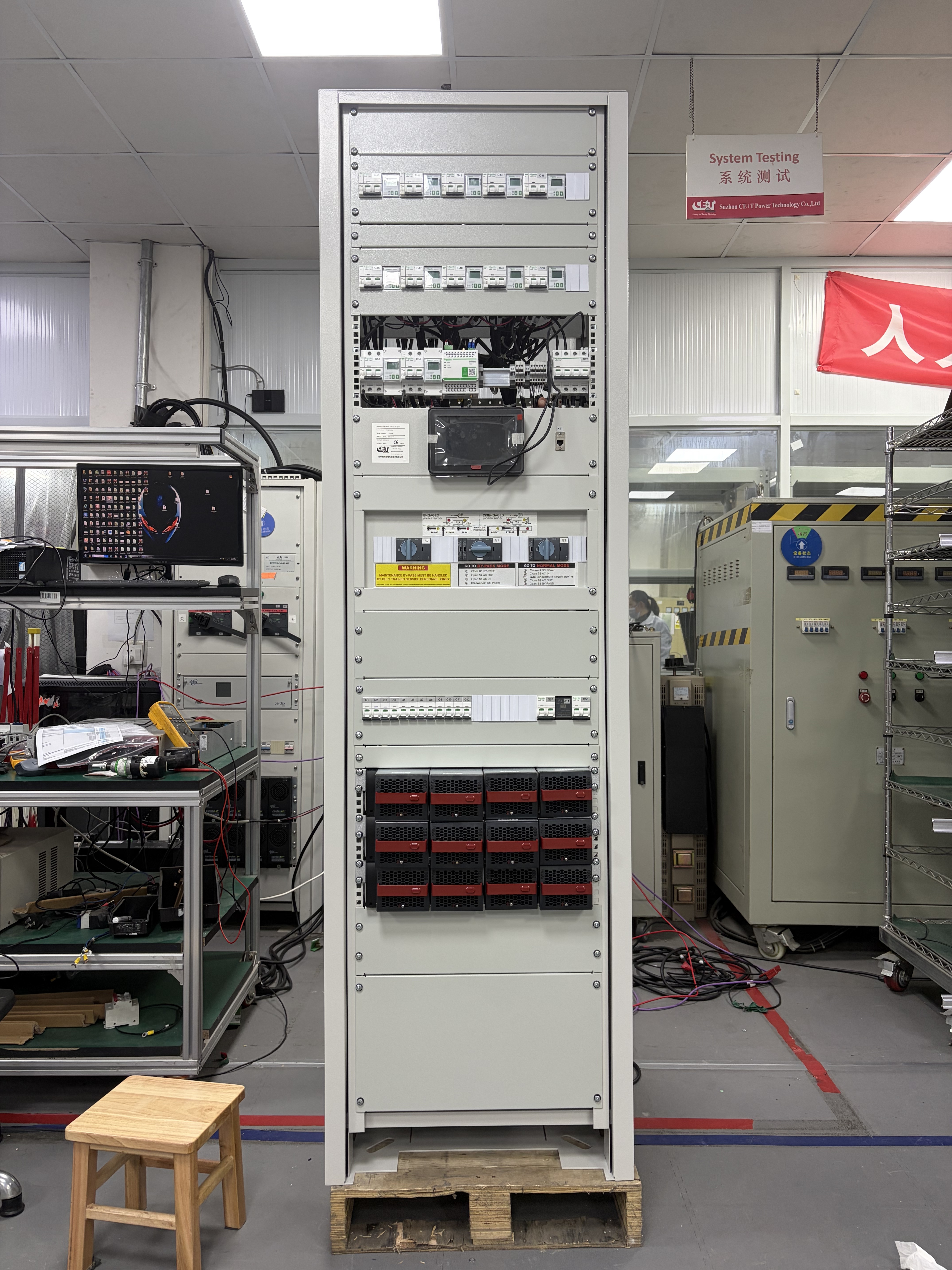

Product Images
