Description:

Based on the BRAVO 25 series modular inverter system from CE+T Power, providing a highly reliable and flexibly

scalable industrial-grade power supply solution. Adopting a modular design, the system supports power expansion

ranging from 3KVA to 36KVA, and is compatible with 48V DC input and 230V AC output.

Specifically engineered for scenarios such as communication base stations, data centers and new energy energy storage,

it meets the power requirements for high stability and scalability in these applications.

Key Features:

• Secure AC & DC loads;

• Many innovative applications;

• Compatible with Inview S;

• Modularity: from 2.7 kW to 2 MW;

• From small to large systems.

Parameters:

1. Inverter Module: BRAVO 25-MOD-48V-277/230VAC

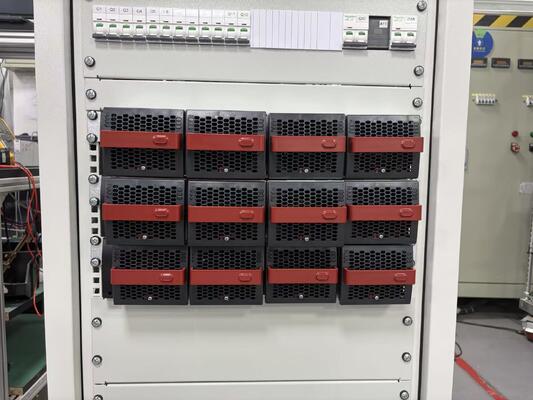

• High-density modular design with support for hot-swappable maintenance

• Compatible with parallel expansion in three-phase systems, supporting up to 12 modules in parallel per cabinet

• Efficiency ＞96%, suitable for wide temperature operation in industrial environments (-40°C~+70°C)

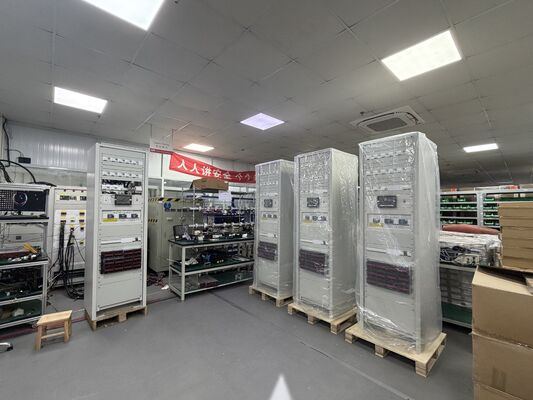

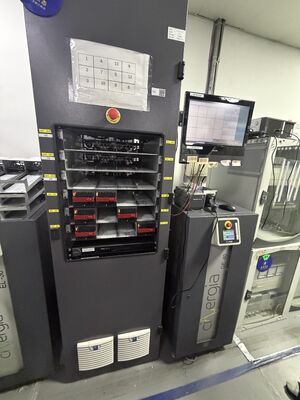

2. System Cabinet: BRAVO 25 48/230 3PH 36KVA

Mechanical Dimensions: 600×600×2100mm (Standard 19-inch cabinet)

Input/Output Configuration

Key Features

1. Intelligent Monitoring Unit: Integrated with the INVIEW X monitoring system and equipped with a 7-inch touch screen, providing real-time display of voltage, current, module status and energy efficiency data.

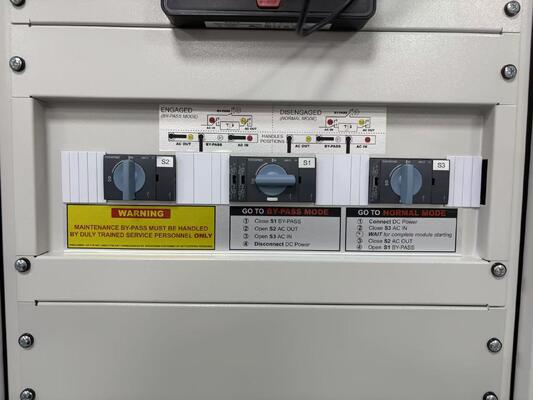

2. Manual Bypass (MBP): Supports uninterrupted maintenance and emergency switching.

3. Electrical Protection:

   • DC Input: 1P 63A Miniature Circuit Breaker (MCB) for each independent module

   • AC Input: 4P 63A main circuit breaker

   • AC Output: 12 channels of 2P 63A circuit breakers (each with auxiliary contacts)



4. Energy Metering: Integrated Schneider iEM2455 energy meter (100A Class 1, MID Certified), with RS485 communication support.

5. IoT Connectivity: Built-in Schneider PAS700 IoT gateway, supporting remote operation and maintenance as well as cloud platform management.
