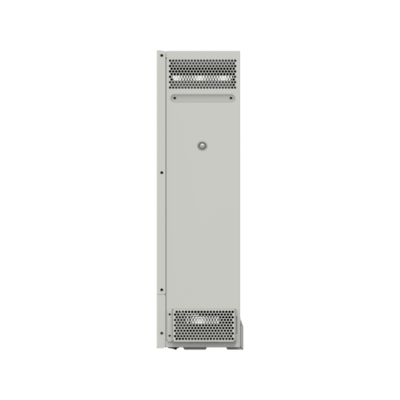

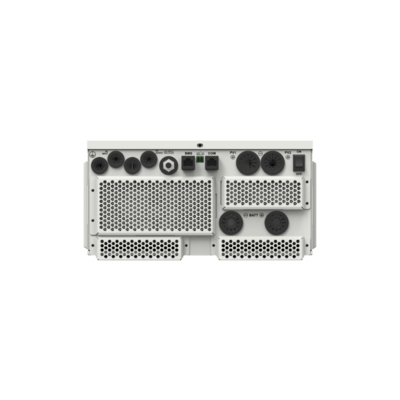

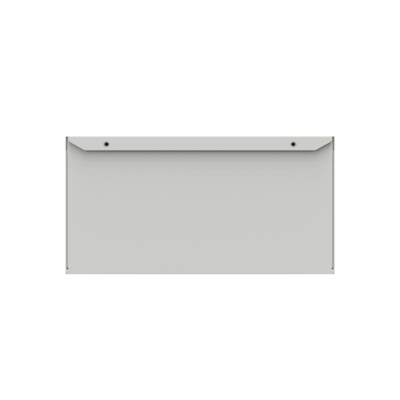

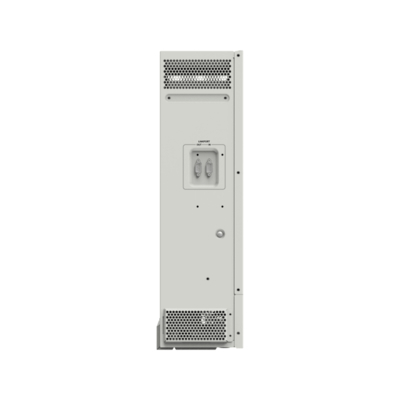

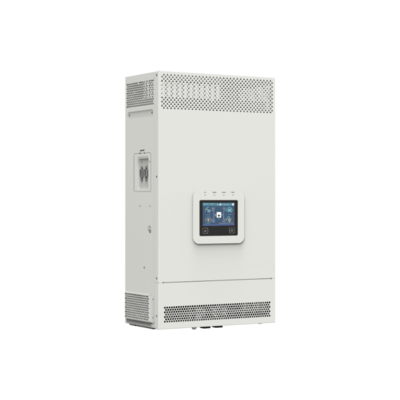

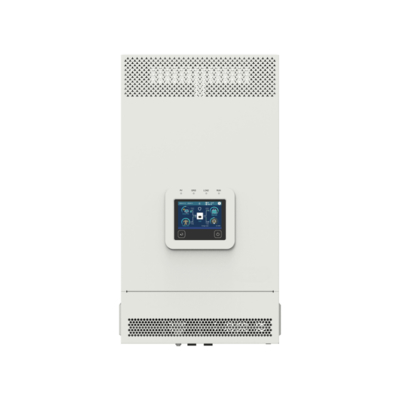

The brand new Kirin Pro series is an inverter/charger that supports utility charging, oil generator charging, solar charging,
dual output from utility or inverter, multiple operating modes, and smart energy management. It supports parallel
operation for multiple units in single phase or three phase. The inverter with power of 3.5KW and 5.5KW perfectly suits
residential applications, schools, health facilities, government buildings, and areas where the electricity is unstable
Specification
|
Model
|
KRP3522-1250P20/C
|
KRP3542-0650P20/C
|
KRP5542-1050P20/C
|
|
Utility input
|
|
Utility Input Voltage
|
176VAC to 264VAC (Default), 90VAC to 285VAC (Configurable)
|
|
Utility Input Frequency
|
45Hz to 65Hz
|
|
Maximum Utility Charging Current
|
110A
|
60A
|
100A
|
|
Switch Response Time
|
Switch Response Time – Inverter to Utility: 10ms
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms
|
|
Inverter output
|
|
Inverter Rated Power (@30℃)
|
3500W
|
5500W
|
|
3-second Transient Surge Output Power
|
7000W
|
8500W
|
|
Inverter Output Voltage
|
220/230VAC±3%
|
|
Inverter Frequency
|
50/60Hz±0.2%
|
|
Output Voltage Waveform
|
Pure sine wave
|
|
Load Power Factor
|
0.2–1(VA ≤ Rated output power)
|
|
THDu (Total Harmonic Voltage Distortion)
|
≤3% (24V resistive load)
|
≤3% (48V resistive load)
|
|
Maximum Load Efficiency
|
0.92
|
|
Maximum Inverter Efficiency
|
0.94
|
|
Maximum Main Load
|
3500W
|
5500W
|
|
Maximum Second Load
|
3500W
|
5500W
|
|
Main Output Cut-Off Voltage
|
24.4V(Default)
|
48.8V(Default)
|
|
Second Output Cut-Off Voltage
|
22.2V(Default)
|
44.4V(Default)
|
|
Dual Output Recovery Voltage
|
25.2V(Default)
|
50.4V(Default)
|
|
Solar controller
|
|
PV Maximum Open-circuit Voltage
|
500V (At minimum operating environment temperature);
440V (At 25℃)
|
|
MPPT Voltage Range
|
85V to 450V
|
|
Number of MPPTs
|
1
|
2
|
|
PV Maximum Input Current
|
20A
|
20A+20A
|
|
PV Maximum Short-circuit Current
|
22A
|
20A+20A
|
|
PV Maximum Input Power
|
4200W
|
2×3300W
|
|
PV Maximum Charging Current
|
120A
|
60A
|
100A
|
|
MPPT Maximum efficiency
|
≥99.5%
|
|
Battery
|
|
Battery Rated Voltage
|
24VDC
|
48VDC
|
|
Battery Work Voltage Range
|
20.4VDC to 32.0VDC
|
40.8VDC to 64.0VDC
|
|
Battery Maximum Charging Current
|
120A
|
60A
|
100A
|
|
Others
|
|
No-load Losses
|
≤1.5A
|
≤0.8A
|
≤1.1A
|
|
Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @24V input
|
Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input
|
|
Standby Current
|
≤1.1A
|
≤0.6A
|
≤0.8A
|
|
Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @24V input
|
Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input
|
|
Communication with BMS
|
RS485
|
|
Communication with Portal
|
RS485 (4G/WiFi /Bluetooth)
|
|
Parallel Function
|
Yes, Standard 12 units, Up to 16 units
|
|
Work Temperature Range
|
-20℃ to +50℃(＞30℃ Derating )
|
|
Storage Temperature Range
|
-25℃ to +60℃
|
|
Enclosure
|
IP20 (With anti-dust kit))
|
|
Relative Humidity
|
< 95% (N.C.)
|
|
Altitude
|
<4000M (＞2000m Derating)
|
|
Certifications and Standards
|
IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368
|
|
Mechanical parameters
|
|
Dimension (Length x Width x Height)
|
590mm × 300mm × 163mm
|
534mm × 300mm × 163mm
|
590mm × 300mm × 163mm
|
|
Mounting size (Length x Width)
|
568mm × 245mm
|
512mm × 245mm
|
568mm × 245mm
|
|
Mounting hole size
|
Φ9mm/Φ10mm
|
Φ9mm/Φ10mm
|
Φ9mm/Φ10mm
|
|
Net Weight
|
13.8Kg
|
12.7Kg
|
15.5Kg
|
