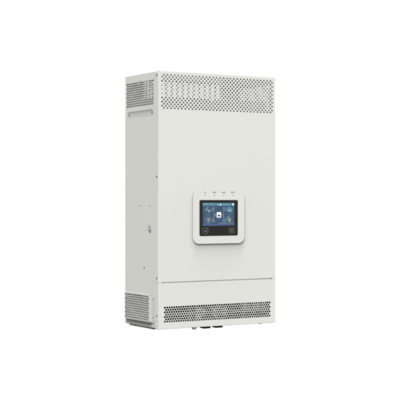

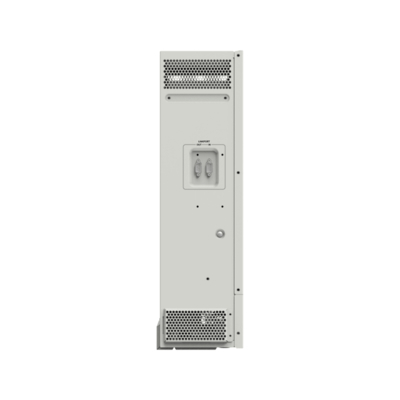

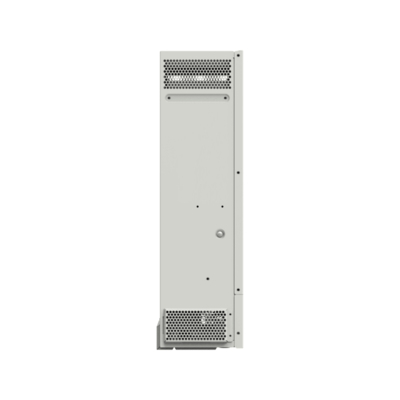

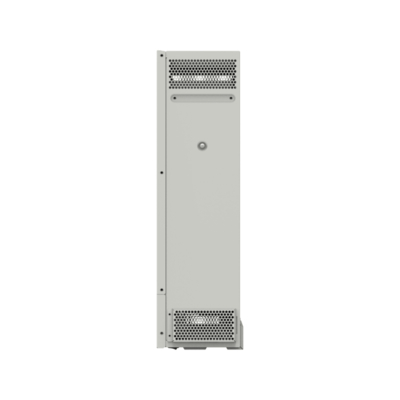

Introducing the KP Series Inverter/Charger, a reliable inverter charger engineered to deliver dependable power from 3500 to 5500 watts for a broad range of applications, including residential backup and off-grid energy systems. This series supports a variety of charging sources—solar, utility, and oil generators—with advanced energy management capabilities.
Specification
|
Model
|
KP3542-AH0650P20PS/C
|
KP3542-AH0650P20NS/C
|
KP5542-AH1050P20PD/C
|
KP5542-AH1050P20ND/C
|
KP5542-AH1050P20PS/C
|
KP5542-AH1050P20NS/C
|
|
|
Utility input
|
|
|
Utility Input Voltage
|
176VAC to 264VAC (Default)
90VAC to 285VAC (Configurable)
|
|
|
Utility Input Frequency
|
45Hz to 65Hz
|
|
|
Maximum Utility Charging Current
|
60A
|
100A
|
|
|
Switch Response Time
|
Switch Response Time – Inverter to Utility: 10ms
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms
|
|
|
Inverter output
|
|
|
Inverter Rated Power (@30℃)
|
3500W
|
5500W
|
|
|
3-second Transient Surge Output Power
|
7000W
|
8500W
|
|
|
Inverter Output Voltage
|
220/230VAC±3%
|
|
|
Inverter Frequency
|
50/60Hz±0.2%
|
|
|
Output Voltage Waveform
|
Pure sine wave
|
|
|
Load Power Factor
|
0.2－1(VA ≤ Rated output power)
|
|
|
THDu (Total Harmonic Voltage Distortion)
|
≤3% (48V resistive load)
|
|
|
Maximum Load Efficiency
|
92%
|
|
|
Maximum Inverter Efficiency
|
94%
|
|
|
Parallel Function
|
Yes, 12 units in standard, 16 units at most
|
NO
|
Yes, 12 units in standard, 16 units at most
|
NO
|
Yes, 12 units in standard, 16 units at most
|
NO
|
|
Solar controller
|
|
|
PV Maximum Open-circuit Voltage
|
500V (At minimum operating environment temperature)
440V (At 25℃)
|
|
|
MPPT Voltage Range
|
85V to 400V
|
|
|
Number of MPPTs
|
1
|
2
|
1
|
|
|
PV Maximum Input Current
|
One way, 16A
|
Two ways, 2 x 16A
|
One way, 16A
|
|
|
PV Maximum Short-circuit Current
|
One way, 18A
|
Two ways, 2 x 18A
|
One way, 18A
|
|
|
PV Maximum Input Power
|
4000W
|
2 × 3000W
|
5000W
|
|
|
PV Maximum Charging Current
|
60A
|
100A
|
100A
|
|
|
MPPT Maximum efficiency
|
≥99.5%
|
|
|
Battery
|
|
|
Battery Rated Voltage
|
48VDC
|
|
|
Battery Work Voltage Range
|
43.2VDC to 64.0VDC
|
|
|
Battery Maximum Charging Current
|
60A
|
100A
|
100A
|
|
|
Others
|
|
|
No-load Losses
|
≤0.8A
|
≤1.1A
|
≤1.1A
|
|
|
Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input
|
Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input
|
Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input
|
|
|
Standby Current
|
≤0.6A
|
≤0.8A
|
≤0.8A
|
|
|
Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input
|
Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input
|
Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input
|
|
|
Communication with BMS
|
RS485
|
|
|
Communication with Portal
|
RS485
|
|
|
Work Temperature Range
|
-20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)
|
|
|
Storage Temperature Range
|
-25℃ to +60℃
|
|
|
Enclosure
|
IP20 (With ANTI-DUST KIT)
|
|
|
Relative Humidity
|
< 95% (N.C.)
|
|
|
Altitude
|
<4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)
|
|
|
Certifications and Standards
|
IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368
|
|
|
Mechanical parameters
|
|
|
Dimension (Length x Width x Height)
|
534mm × 300mm × 163mm
|
590mm × 300mm × 163mm
|
590mm × 300mm × 163mm
|
|
|
Mounting size (Length x Width)
|
512mm × 245mm
|
568mm × 245mm
|
568mm × 245mm
|
|
|
Mounting hole size
|
Φ9mm/Φ10mm
|
Φ9mm/Φ10mm
|
Φ9mm/Φ10mm
|
|
|
Net Weight
|
12.7Kg
|
12.2Kg
|
15.5Kg
|
14.7Kg
|
14.8Kg
|
14.2Kg
|
