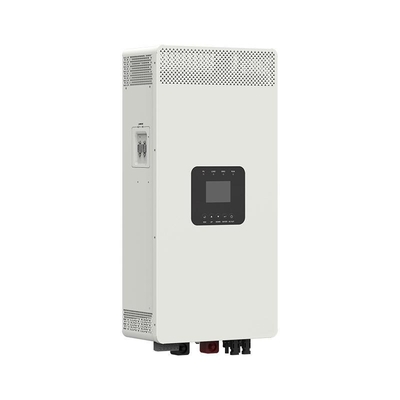

The HP Series 20A High-efficiency Inverter/Charger is a versatile solution for hybrid and residential power systems, designed to deliver reliable performance in diverse applications. With advanced MPPT technology, it optimizes solar energy conversion to maximize the efficiency of your solar panels. Certain models also support dual PV inputs, allowing for even greater solar utilization and flexibility in system design.
Certified with IEC 62109, IEC 62368, EMC, and ROHS standards, it meets international safety and performance requirements, making it suitable for various global markets. This inverter/charger supports seamless integration with multiple energy sources, including solar, utility, and generators, enabling flexible energy management to reduce grid dependence.

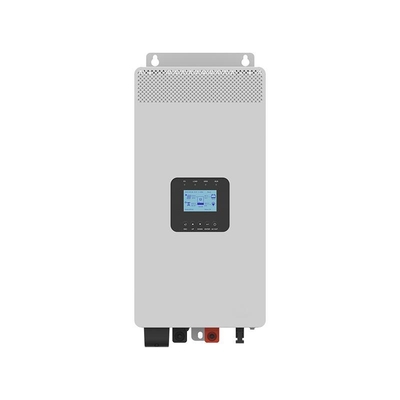

The pure sine wave output ensures stable and clean power for sensitive electronics, while the large LCD display provides intuitive monitoring of system performance. Its parallel operation capability enhances scalability for larger setups, making it ideal for both small residential and larger hybrid systems.
Designed to operate in challenging environments (-20℃ to +50℃), this inverter/charger is a dependable choice for modern energy solutions worldwide, with tailored compatibility for 110V power grids.
Specification
|
Model
|
HP2021-AH0730P20A
|
HP2041-AH0430P20A
|
HP3521-AH1230P20A
|
HP3541-AH0630P20A
|
HP6041-AH1130P20A
|
|
Battery(DC)
|
|
Battery Type
|
Lithium battery/Lead-acid battery
|
|
Voltage Range
|
21.6-32.0VDC
|
43.2-60.0VDC
|
21.6-32.0VDC
|
43.2-60.0VDC
|
|
Rated Voltage
|
24VDC
|
48VDC
|
24VDC
|
48VDC
|
51.2VDC
|
|
Max. Charging Current
|
70A
|
40A
|
120A
|
60A
|
110A
|
|
Max. Discharging Current
|
103A
|
52A
|
180A
|
90A
|
140A
|
|
PV Input(DC)
|
|
Max. Input Power
|
3,000W
|
4,000W
|
8000W
|
|
Max. Input Voltage
|
300V
|
|
Max. PV Input Current
|
15A+15A
|
20A+20A
|
30A+30A
|
|
Max. PV Short-Circuit Current
|
18A+18A
|
22A+22A
|
33A+33A
|
|
MPPT Voltage Range
|
65-240V
|
|
Number of MPPTs
|
2
|
|
Number of Strings per MPPT
|
1
|
|
Utility Input
|
|
Rated Input Power (Charging+Bypass)
|
3,050W
|
5,350W
|
8,680W
|
|
Max. Input Current
|
27.3A
|
45.5A
|
72.8A
|
|
Rated Input Voltage
|
110VAC/120VAC
|
|
Input Voltage Range
|
80-140VAC
|
|
Rated Input Frequency
|
45-65Hz
|
|
Inverter Output
|
|
Rated Power
|
2,000W
|
3,500W
|
6,000W
|
|
Transient Surge Output Power
|
4,000W (3S)
|
7,000W (3S)
|
8,500W (3S)
|
|
Rated Output Current
|
18.2A
|
31.9A
|
50.0A
|
|
Output Voltage Level
|
110/120VAC±3%
|
|
Output Voltage Waveform
|
Pure Sine Wave
|
|
Output Frequency Level
|
50Hz/60Hz±0.2%
|
|
THDu
|
≤3%
|
|
Load Power Factor
|
0.2-1
|
|
Switch Time
|
Inverter to Utility: 10ms
Utility to Inverter: 20ms
|
|
Efficiency
|
|
Max. Inverter Efficiency
|
0.92
|
0.92
|
0.93
|
0.93
|
0.94
|
|
Max. Load Efficiency
|
0.88
|
0.9
|
0.89
|
0.9
|
0.92
|
|
Environmental Parameters
|
|
Operating Temperature
|
-20℃ to 50℃(>30℃ Derating)
|
|
Storage Temperature
|
-25℃-60℃
|
|
Relative Humidity
|
＜95%(N.C.)
|
|
Altitude
|
4,000m(＞2,000m Derating)
|
|
Ingress Protection
|
IP20
|
|
Mechanical Parameters
|
|
Dimensions (L × W × H)(mm)
|
654×291.4×163
|
679×291.4×163
|
761×361.4×179
|
|
Mounting Size (L × W)(mm)
|
617×200
|
642×200
|
704×200
|
|
Mounting Hole Size (L × W)(mm)
|
Φ9/Φ10
|
|
Weight (kg)
|
14.6
|
16.9
|
16.5
|
20.5
|
|
Others
|
|
No-load Loss
|
＜24W
|
＜28.8W
|
＜26.4W
|
＜28.8W
|
＜52.8W
|
|
Standby Loss
|
≤19.2W
|
＜24W
|
＜19.2W
|
≤24W
|
＜36W
|
|
Communication with BMS
|
RS485
|
|
Communication with Portal
|
RS485
|
|
Parallel Function
|
Yes, 12 Units in Standard, 16 Units at Most
|
|
Display
|
LCD
|
|
Protection
|
AC Overcurrent Protection / AC Overvoltage Protection / AC Undervoltage Protection / AC Overfrequency Protection AC Underfrequency Protection / AC Bypass Overload Protection / Battery Overvoltage Protection
Battery Overdischarge Protection / Battery Overtemperature Protection / Lithium Battery Low Temperature Protection PV Input Reverse Polarity Protection / PV Current Limiting / Power Limiting Protection / PV Short Circuit Protection Device Overheating Protection / Load Output Short Circuit Protection / Inverter Output Overload Protection
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
