The HP Series 20A High-efficiency Inverter/Charger is designed to maximize energy utilization in residential and hybrid power systems. With its advanced MPPT technology, this inverter/charger optimizes solar energy conversion, ensuring you harness the full potential of your solar panels. Certain models support dual PV inputs, further enhancing solar energy utilization for greater efficiency.
Designed for environments ranging from -20℃ to +50℃, the HP Series 20A meets diverse installation needs, making it an ideal choice for modern energy solutions.
Features
Pure sine wave output
Supports battery or non-battery modes
PFC technology reduces the demand on the power grid capacity
Advanced MPPT technology, with max. tracking efficiency higher than 99.5%

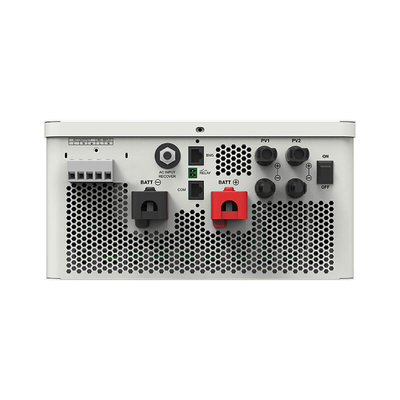

HP5542-AH1050P20A supports two PV inputs to improve PV utilization
Supports charging from multiple types of generators
Battery charging or discharging current limits are compatible with various types of batteries
Adjustable maximum utility charging current for flexible configuration of utility charging power

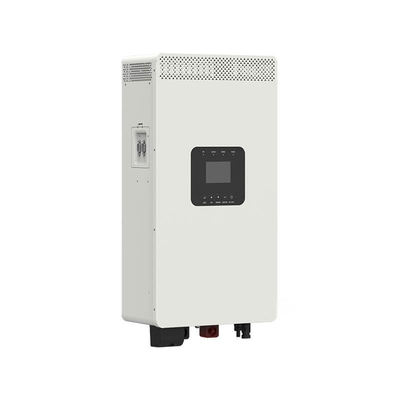

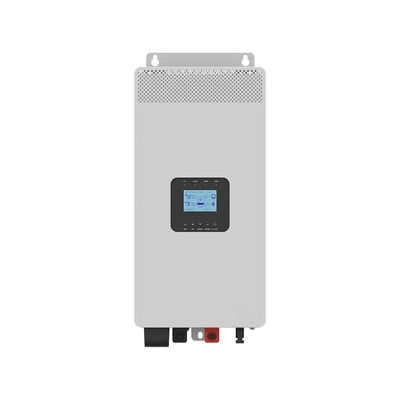

Large size LCD display for better status monitoring
RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring
Comprehensive electronic protections
-20℃~+50℃ operating temperature range to meets more environment requirements
AC output supports parallel operation, standard configuration of 12 units in parallel
AC output parallel operation supports single-phase and three-phase settings
With the function of historical data recording, storage capacity for 25,000 records (the interval time of 1~3600 seconds settable)
Specification
|
Model
|
HP2022-AH0750P20A
|
HP2042-AH0450P20A
|
HP3522-AH1250P20A
|
HP3542-AH0650P20A
|
HP5542-AH1050P20A
|
|
Battery(DC)
|
|
Battery Type
|
Lithium battery / Lead-acid battery
|
|
Voltage Range
|
21.6-32.0VDC
|
43.2-60.0VDC
|
21.6-32.0VDC
|
43.2-60.0VDC
|
|
|
Rated Voltage
|
24VDC
|
48VDC
|
24VDC
|
48VDC
|
48VDC
|
|
Max. Charging Current
|
70A
|
40A
|
120A
|
60A
|
100A
|
|
Max. Discharging Current
|
103A
|
52A
|
180A
|
90A
|
140A
|
|
PV Input(DC)
|
|
Max. Input Power
|
3,000W
|
4,000W
|
6000W
|
|
Max. Input Voltage
|
500V
|
|
Max. PV Input Current
|
15A
|
16A
|
15A+15A
|
|
Max. PV Short-Circuit Current
|
18A
|
18A+18A
|
|
MPPT Voltage Range
|
85-400V
|
|
Number of MPPTs
|
1
|
2
|
|
Number of Strings per MPPT
|
1
|
|
Utility Input
|
|
Rated Input Power (Charging+Bypass)
|
3,050W
|
5,350W
|
8,550W
|
|
Max. Input Current
|
13.6A
|
22.7A
|
36.4A
|
|
Rated Input Voltage
|
220VAC/230VAC
|
|
Input Voltage Range
|
90-285VAC
|
|
Rated Input Frequency
|
45-65Hz
|
|
Inverter Output
|
|
Rated Power
|
2,000W
|
3,500W
|
5,500W
|
|
Transient Surge Output Power
|
4,000W (3S)
|
7,000W (3S)
|
8,500W (3S)
|
|
Rated Output Current
|
9.1A
|
15.9A
|
25A
|
|
Output Voltage Level
|
220/230VAC±3%
|
|
Output Voltage Waveform
|
Pure Sine Wave
|
|
Output Frequency Level
|
50Hz/60Hz±0.2%
|
|
THDu
|
≤3%
|
|
Load Power Factor
|
0.2-1
|
|
Switch Time
|
Inverter to Utility: 10ms Utility to Inverter: 20ms
|
|
Efficiency
|
|
Max. Inverter Efficiency
|
92%
|
93%
|
94%
|
|
Max. Load Efficiency
|
90%
|
92%
|
|
Environmental Parameters
|
|
Operating Temperature
|
-20℃ to 50℃(>30℃ Derating)
|
|
Storage Temperature
|
-25℃ to 60℃
|
|
Relative Humidity
|
＜95%(N.C.)
|
|
Altitude
|
4,000m(＞2,000m Derating)
|
|
Ingress Protection
|
IP20
|
|
Mechanical Parameters
|
|
Dimensions (L × W × H)(mm)
|
629×291.4×163
|
654×291.4×163
|
629×291.4×163
|
679×291.4×163
|
|
Mounting Size (L × W)(mm)
|
592×200
|
617×200
|
592×200
|
642×200
|
|
Mounting Hole Size (L × W)(mm)
|
Φ9/Φ10
|
|
Weight (kg)
|
13.3
|
15.3
|
14.3
|
17.5
|
|
Others
|
|
No-load Loss
|
＜26.4W
|
＜28.8W
|
＜28.8W
|
＜38.4W
|
＜52.8W
|
|
Standby Loss
|
＜21.6W
|
≤24W
|
＜21.6W
|
＜28.8W
|
＜36W
|
|
Communication with BMS
|
RS485
|
|
Communication with Portal
|
RS485
|
|
Parallel Function
|
Yes, 12 Units in Standard, 16 Units at Most
|
|
Display
|
LCD
|
|
Protection
|
AC Overcurrent Protection / AC Overvoltage Protection / AC Undervoltage Protection / AC Overfrequency Protection AC Underfrequency Protection / AC Bypass Overload Protection / Battery Overvoltage Protection
Battery Overdischarge Protection / Battery Overtemperature Protection / Lithium Battery Low Temperature Protection PV Input Reverse Polarity Protection / PV Current Limiting / Power Limiting Protection / PV Short Circuit Protection Device Overheating Protection / Load Output Short Circuit Protection / Inverter Output Overload Protection
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
