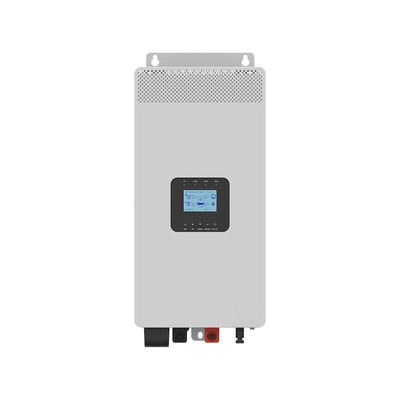

The HP-AHP20A series is a high-frequency inverter charger. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings. This high-quality product provides a stable power supply and is suitable for hybrid power generation systems that combine solar, utility, and oil engine sources. It meets the application requirements for customers seeking costeffective residential power supply solutions.
Specification
|
Model
|
HP2042-AH0450P20A
|
HP3522-AH1250P20A
|
HP3542-AH0650P20A
|
|
Battery(DC)
|
|
Battery Type
|
Lithium battery / Lead-acid battery
|
|
Voltage Range
|
43.2-60.0VDC
|
21.6-32.0VDC
|
43.2-60.0VDC
|
|
Rated Voltage
|
48VDC
|
24VDC
|
48VDC
|
|
Max. Charging Current
|
40A
|
120A
|
60A
|
|
Max. Discharging Current
|
52A
|
180A
|
90A
|
|
PV Input(DC)
|
|
Max. Input Power
|
3,000W
|
4,000W
|
|
Max. Input Voltage
|
500V
|
|
Max. PV Input Current
|
15A
|
16A
|
|
Max. PV Short-Circuit Current
|
18A
|
|
MPPT Voltage Range
|
85-400V
|
|
Number of MPPTs
|
1
|
|
Number of Strings per MPPT
|
1
|
|
Utility Input
|
|
Rated Input Power (Charging+Bypass)
|
3,050W
|
5,350W
|
|
Max. Input Current
|
13.6A
|
22.7A
|
|
Rated Input Voltage
|
220VAC/230VAC
|
|
Input Voltage Range
|
90-285VAC
|
|
Rated Input Frequency
|
45-65Hz
|
|
Inverter Output
|
|
Rated Power
|
2,000W
|
3,500W
|
|
Transient Surge Output Power
|
4,000W (3S)
|
7,000W (3S)
|
|
Rated Output Current
|
9.1A
|
15.9A
|
|
Output Voltage Level
|
220/230VAC±3%
|
|
Output Voltage Waveform
|
Pure Sine Wave
|
|
Output Frequency Level
|
50Hz/60Hz±0.2%
|
|
THDu
|
≤3%
|
|
Load Power Factor
|
0.2-1
|
|
Switch Time
|
Inverter to Utility: 10ms Utility to Inverter: 20ms
|
|
Efficiency
|
|
Max. Inverter Efficiency
|
92%
|
93%
|
94%
|
|
Max. Load Efficiency
|
90%
|
92%
|
|
Environmental Parameters
|
|
Operating Temperature
|
-20℃ to 50℃(>30℃ Derating)
|
|
Storage Temperature
|
-25℃ to 60℃
|
|
Relative Humidity
|
＜95%(N.C.)
|
|
Altitude
|
4,000m(＞2,000m Derating)
|
|
Ingress Protection
|
IP20
|
|
Mechanical Parameters
|
|
Dimensions (L × W × H)(mm)
|
629×291.4×163
|
654×291.4×163
|
629×291.4×163
|
|
Mounting Size (L × W)(mm)
|
592×200
|
617×200
|
592×200
|
|
Mounting Hole Size (L × W)(mm)
|
Φ9/Φ10
|
|
Weight (kg)
|
13.3
|
15.3
|
14.3
|
|
Others
|
|
No-load Loss
|
＜28.8W
|
＜28.8W
|
＜38.4W
|
|
Standby Loss
|
≤24W
|
＜21.6W
|
＜28.8W
|
|
Communication with BMS
|
RS485
|
|
Communication with Portal
|
RS485
|
|
Parallel Function
|
Yes, 12 Units in Standard, 16 Units at Most
|
|
Display
|
LCD
|
|
Protection
|
AC Overcurrent Protection / AC Overvoltage Protection / AC Undervoltage Protection / AC Overfrequency Protection AC Underfrequency Protection / AC Bypass Overload Protection / Battery Overvoltage Protection
Battery Overdischarge Protection / Battery Overtemperature Protection / Lithium Battery Low Temperature Protection PV Input Reverse Polarity Protection / PV Current Limiting / Power Limiting Protection / PV Short Circuit Protection Device Overheating Protection / Load Output Short Circuit Protection / Inverter Output Overload Protection
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
