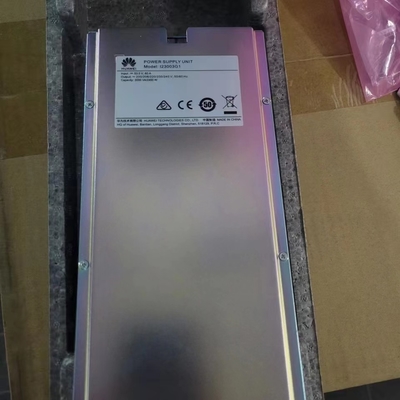

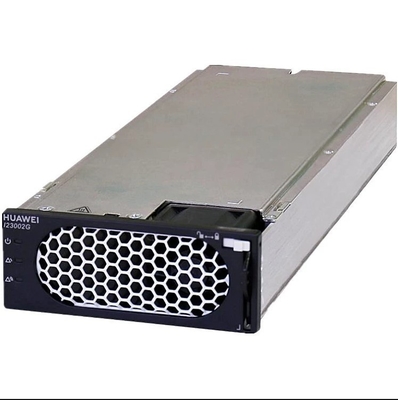

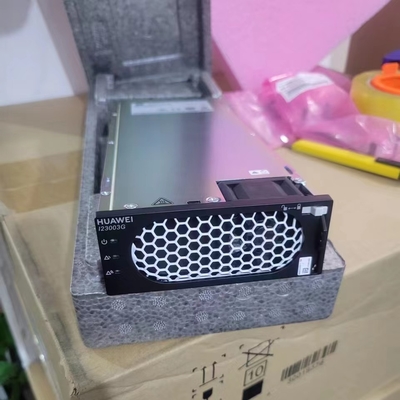

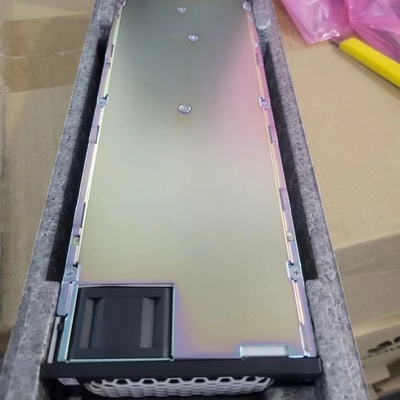

The lnverter module can work with the lnverter module subrack to convert DC power into 220V AC power, providing high-performance and uninterrupted AG power for AG devices.
Features
Reliable: supports N+f backup
Easy maintenance: hot swap and online replacement
Intelligent: remote management
Specification
|
Dimensions (H×W×D)
|
40.8mm×105mm×269mm
|
|
Weight
|
2.5kg
|
|
Heat Dissipation Mode
|
Air cooling
|
|
Protection Level
|
IP20
|
|
Output Capacity
|
3KVA
|
|
DC Input
|
Current
|
82.5A max
|
|
Voltage
|
50-58V,rated 53.3V
|
|
AC Output
|
Output Voltage
|
220 Vac±2%
|
|
Output Frequency
|
50Hz±1%
|
|
Output lightning protection
|
3KA/5KA
|
|
Crest Factor
|
≥94%
|
|
Output Power Factor
|
0.8
|
|
Overload Capability
|
105%≤ Load≤125%, the value is greater than 1min.
125%< Load≤150%, the value is greater than 5s.
|
|
Output Parallel Function
|
Support
|
|
Protection Function
|
DC Input
|
Overvoltage or undervoltage
|
|
AC Output
|
Overvoltage,undervoltage, overcurrent, over-power, short-circuit protection
|
|
Temperature
|
Overtemperature protection
|
|
Insulation Resistance
|
Not less than 2M
|
|
Audio Noise
|
<60DB
|
|
Reference Standards for &
Certification
|
CE passed the TUV and CE certification,obtained the CB certificateIEC/EN 62368,60950,TLC,RoHS,Reach,WEEE
|
|
Working Environment
|
Operating Temperature
|
-40ºC –+75ºC(+55°C derating)
|
|
Storage Temperature
|
–40℃-+75℃ (without package)
|
|
Altitude
|
0 -5000 m(1ºC per 200 m temperature derating from 2000 to 5000 m)
|
|
Relative Humidity
|
5% -95%(no condensation)
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
