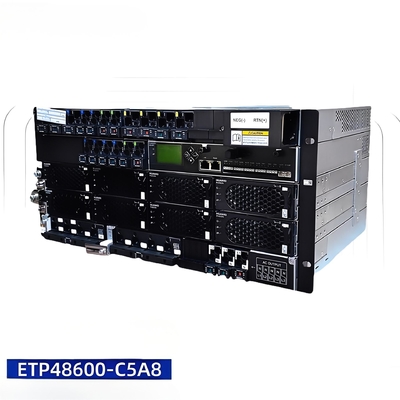

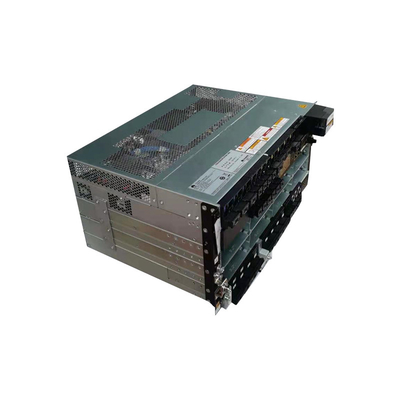

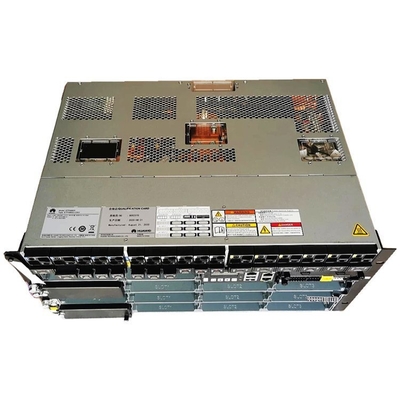

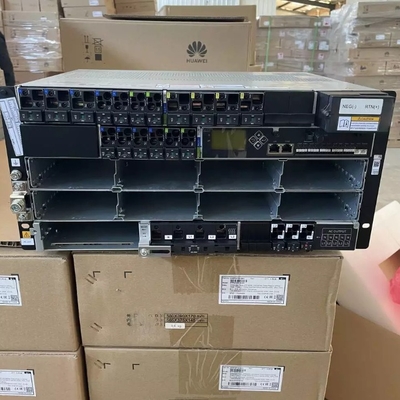

ETP48600-C5A8 with 8*75A rectifier, fully loaded, 1*SMU06T The ETP48600 embedded power system consists of two subsystems, namely, TIEN1 power system and ESS4815A lithium battery system. The TIEN1 power system supports 240 V/415 V AC power input, and supplies +48 V DC power to equipment in a data center after converting AC power into DC power. The ESS4815A lithium battery system serves as the power backup unit of the ETP48600. A single lithium battery system supports 7.5 kW power output. A maximum of four ESS4815A lithium battery systems can be cascaded. Site monitoring unit: SMU06T The ETP48600 embedded power system is a distributed power supply and power backup solution which is developed based on the Open Computer Project (OCP) 2.0 standard and designed for data centers. This solution features high efficiency, energy saving, high capacity, modular deployment, quick discharge at a high rate, flexible power backup, high reliability, environmental friendliness, and easy maintenance. It applies to large data center scenarios with +48 V servers.
|
Specification
|
|
AC input system
|
220/380V AC
Three-phase, four-wire
|
|
AC Input
|
100A/4P×2, manual switching, mechanical interlock
|
|
Output current
|
MAX 600A
|
|
Protection level
|
IP20
|
|
DC distribution
|
User 1:
LLVD: 100A/1P×3,63A/1P×2
BLVD: 32A/1P×2
User 2:
LLVD: 32A/1P×4
BLVD:16A/1P×2
Battery circuit breaker: 125A/1Px 4, support expansion to add 125A/1Px2 circuit breaker
|
|
AC output
|
16A/1P×3
|
|
Operating temperature
|
–40°C to +65°C; when the operating
temperature ranges from 55°C to 65°C,
rectifier power is derated automatically
|
|
Operating humidity
|
5%–90% RH (non-condensing)
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
