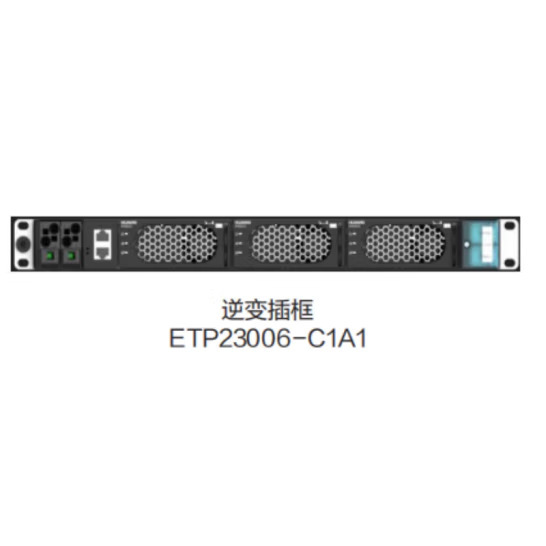

ETP23006-C1A1, Huawei DC to AC Embedded Inverter
1U height
Supports N+l backup

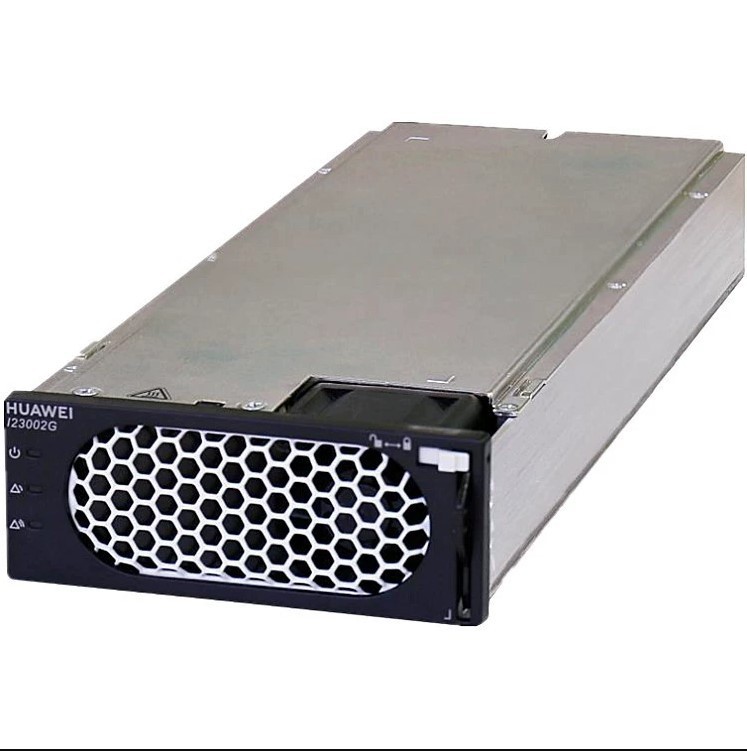

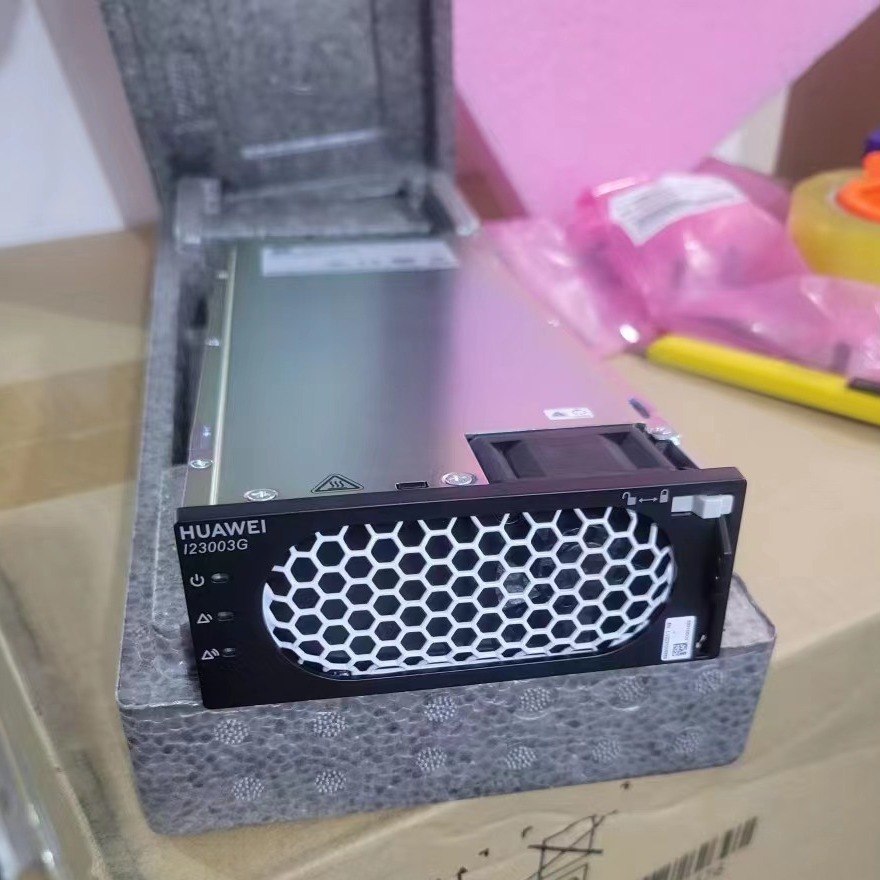

MAX Supports 3*I23003G Inverter Module
MAX Supoorts 6kVA output capacity
Supports remote management
Hot swap and online replacement
Apply to Communication site with AC equipment
Huawei ETP23006-C1A1 is a DC to AC embedded power supply, converts DC power into 220V AC power to provide high performance and uninterrupted AC power supply for AC devices.
Specification
|
Dimensions (H×W×D)
|
43.6mm×442mm×330mm
|
|
Weight
|
≤15kg
|
|
Heat Dissipation Mode
|
Air cooling
|
|
Protection Level
|
IP20
|
|
Output Capacity
|
6KVA Max
|
|
DC Input
|
Number of DC Input Channels
|
1*200A(Terminal)
|
|
Current
|
150A Max
|
|
Voltage
|
43.2 ~ 58 V, Rated 48V
|
|
Undervoltage Alarm Threshold
|
45V
|
|
Overvoltage Alarm Threshold
|
58V
|
|
Undervoltage Protection Threshold
|
Protection point:42V,Restoring point: 45V
|
|
Overvoltage Protection Threshold
|
Protection point:60V,Restoring point 58V
|
|
AC Output
|
Number of AC Output Channels
|
1*63A (Circuit breaker)
|
|
Output Voltage
|
220 Vac±2%
|
|
Output Frequency
|
50Hz±1%
|
|
Output Surge Protection
|
30KA/30KA
|
|
Peak Efficiency
|
≥94%
|
|
Output Power Factor
|
0.8
|
|
Overload Capability
|
105%≤ Load≤125%, the value is greater than 1min.
125%< Load≤150%, the value is greater than 5s. 150%< Load≤200%, the value is
greater than 1s
|
|
Output Current Peak Coefficient
|
3:1
|
|
Output Parallel Function
|
Support
|
|
Communication Port
|
CAN
|
|
Protection Function
|
DC Input
|
Overvoltage or undervoltage
|
|
AC Output
|
Overvoltage,undervoltage, overcurrent, over-power, short-circuit protection
|
|
Temperature
|
Overtemperature protection
|
|
Insulation Resistance
|
Not less than 2M
|
|
Audio Noise
|
<60DB
|
|
Reference Standards for &
Certification
|
CE passed the TUV and CE certification,obtained the CB certificateIEC/EN 62368,60950,TLC,RoHS,Reach,WEEE
|
|
Working Environment
|
Operating Temperature
|
-40ºC –+75ºC(+55°C derating)
|
|
Storage Temperature
|
–40℃-+75℃ (without package)
|
|
Altitude
|
0 -5000 m(1ºC per 200 m temperature derating from 2000 to 5000 m)
|
|
Relative Humidity
|
5% -95%(no condensation)
|
