Huawei’s Embedded Power system provides stable -48V DC power for wireless and fixed access networks, transmission networks and enterprise network equipment. It consists of a power distribution unit, rectifiers, and a controller, etc., and can be deployed independently or embedded into other power cabinets.
The capacity of Huawei’s high-efficiency embedded power ranges from 30A to 400A. Every functional unit is designed to a standard size. The systems, whose height ranges from 1U to 9U with standard 19-inch rack or cabinet installation, have a modular design to facilitate installation and expansion. The system encompasses a wide range of AC input voltage, with accurate battery management and remote management functions.

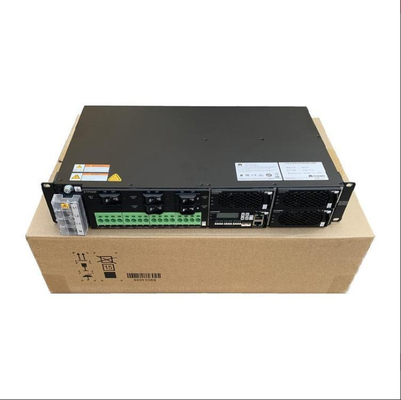

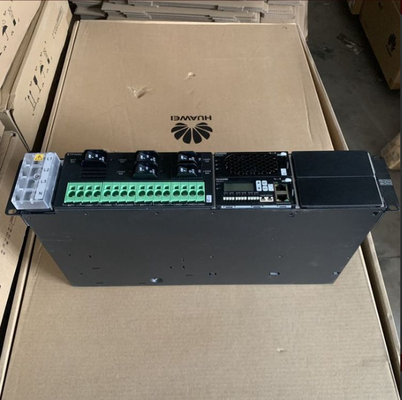

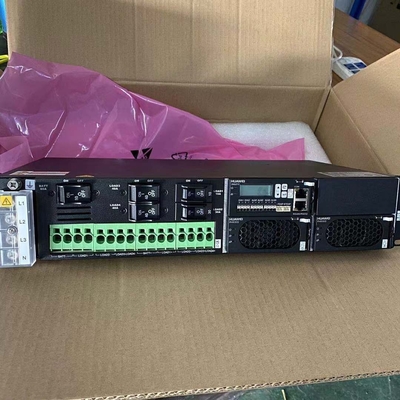

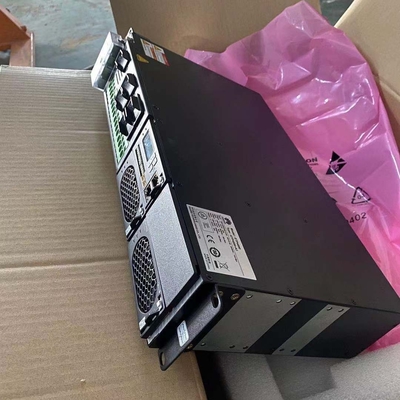

ETP4890-A2 is an AC/DC embedded power system with excellent performance such as high power efficiency, intelligent battery management, remote management, wide range of AC input voltage, etc.
The system can configure 1U 15A/30A high rectifier modules, and provides 90A rated current output.
ETP4890-A2 can be embedded in 19-inch rack or cabinet.
Specification
|
Product Type
|
ETP4830-A1
|
ETP48200-C5B4
|
ETP48400-C9A2
|
|
Dimensions (W x D x H)
|
482.6 mm x 255 mm x 43.6 mm
|
482.6 mm x 330 mm x 219.5 mm
|
482.6 mm x 330 mm x 397.3 mm
|
|
Weight
|
≤ 8 kg (fully loaded)
|
≤ 20 kg (excluding rectifiers)
|
≤ 30 kg (without rectifiers)
|
|
AC Input Mode
|
220V single-phase, 110V dual live wire
|
220V/380V three-phase, 220V single-phase
|
220V/380V three-phase
|
|
AC Input Frequency
|
45 Hz to 66 Hz
|
45 Hz to 66 Hz
|
45 Hz to 66 Hz
|
|
AC Input Distribution
|
M4 OT terminal
|
1 x 63A/3P MCB
|
1 x 100A/3P MCB
|
|
AC Output Distribution
|
NA
|
NA
|
1 x 63A/3P, 3 x 32A/1P
|
|
Output Voltage Range
|
-42V to -58V (expandable)
|
-42V to -58V (expandable)
|
-42V DC to -58V DC (expandable)
|
|
Maximum Power Output
|
2 kW
|
12 kW
|
24 kW
|
|
DC Output Distribution
|
· BLVD: 2 x 20A (fuse)
· Battery: 1 x 20A (fuse)
|
· LLVD: 2 x 80A/1P, 3 x 32A/1P
· BLVD: 1 x 63A/1P, 3 x 32A/1P, 1 x 16A/1P
· Battery branches: 2 x 125A (fuse)
|
· LLVD: 2 x 80A/1P, 2 x 63A/1P, 6 x 32A/1P
· BLVD: 2 x 63A/1P, 2 x 32A/1P, 2 x 16A/1P
· Battery branches: 4 x 125A/1P
|
|
Operating Temperature
|
-40°C to 70°C
|
-40°C to 65°C
|
-40°C to 65°C
|
|
Altitude
|
Zero to 4,000m (1ºC per 200m temperature derating from 2,000m to 4,000m)
|
Zero to 4,000m (1ºC per 200m temperature derating from 2,000m to 4,000m)
|
Zero to 4,000m (1ºC per 200m temperature derating from 2,000m to 4,000m)
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
