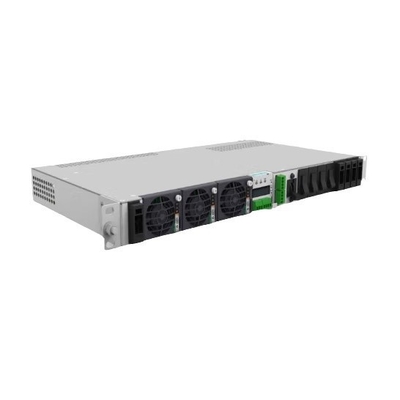

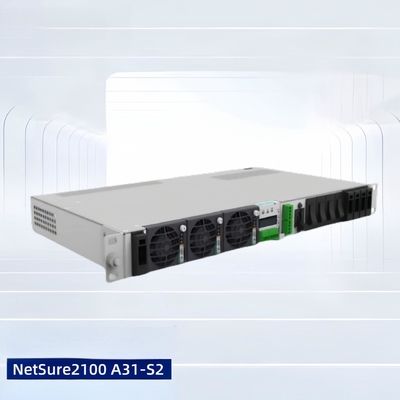

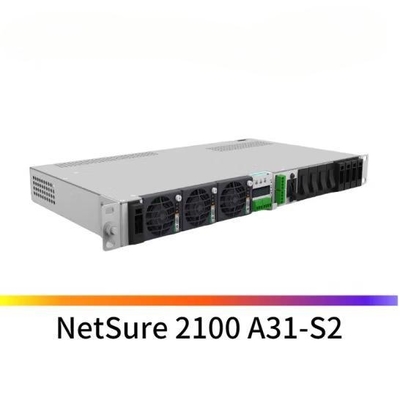

Vertiv Power NetSure 2100 A31-S2 3000W Telecom Power System 40A DC with R48-1000e3 for OLT Use

NetSure 2100 Series is designed for telecom applications requiring ultra compact design and high power density.
This power dense 48 VDC power system is available with an advanced controller, up to (3) three 1000W high efficiency rectifiers, battery and load MCB's.

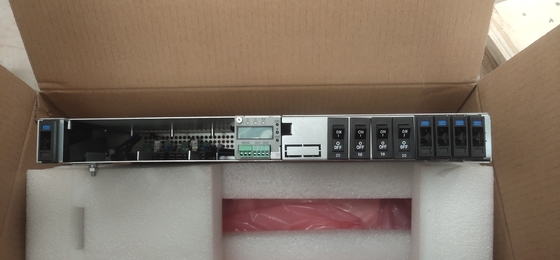

The 1U high power sub-rack supports 19" rack mounting. The distrubution section supports 4 load MCB's and 1 battery MCB. A BLVD contactor ensures disconnection of the battery at the end of battery discharge to protect the battery from deep discharge.

NetSure 2100 A31-S2/S3 subrack can be accommodated with 1 ~ 3 rectifies, the actual configured rectifies are based on the order requirement. If the rectifier number is one, you need to select two dummy plate. If the rectifier number is two, you need to select one dummy plate. If the rectifier number is three, there is no need to select a dummy plate.

Key Features

Ultra-compact sub-rack power system- delivers up to 3kW in 1U rack spaceWide operating voltage range i.e.85-300VAC

Higher rectifier efficiency up to 95.4%

All the breakers and connections are accessible from the front sideIntegrated distribution outlets

Advanced intelligent battery management system

Built-in communication & dry contact ports that enable remote monitoring.

Stores up to 4000 alarms

Low audible noise under normal load and temperature conditions

Applications

Distributed Antenna Systems(DAS)

Broadband

Radio Access Nodes -3G/4G/5G

Wireline Access Nodes - FTTx applications

Specification
