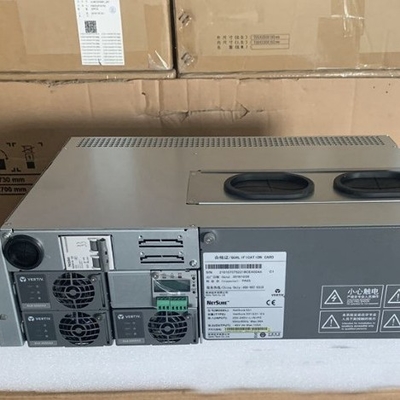

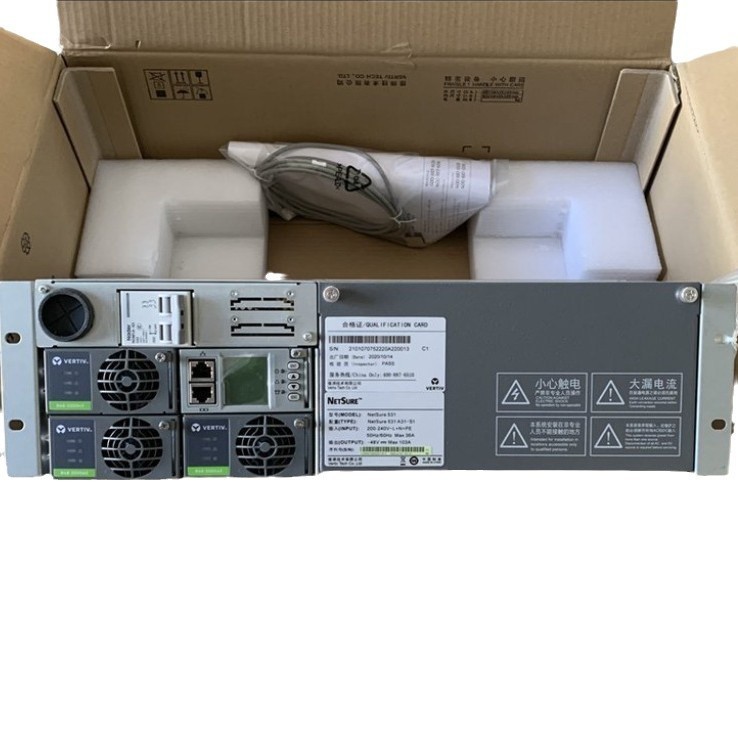

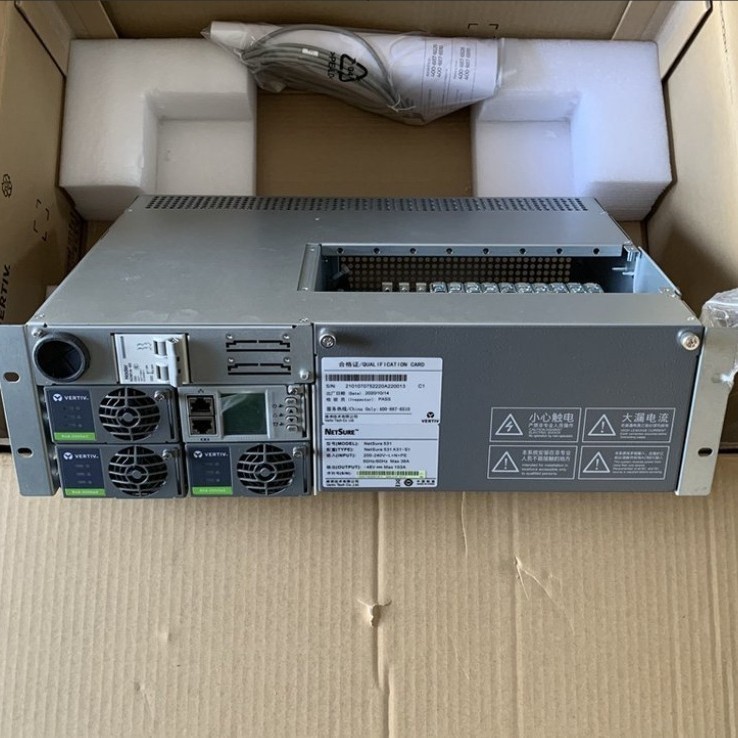

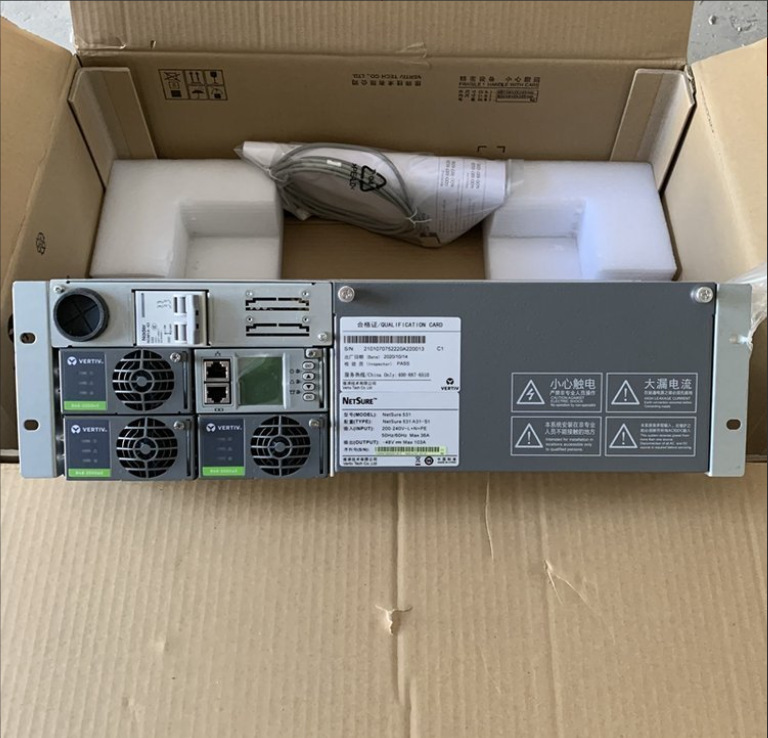

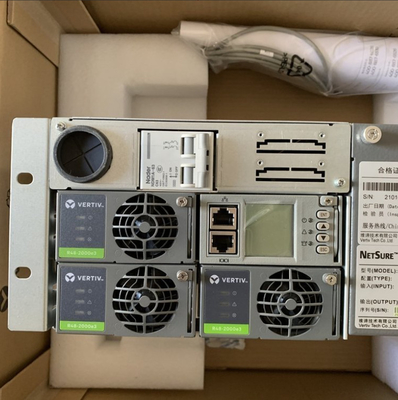

Emerson Vertiv Original Telecom Power Supply System Netsure 531A31-S1

The Vertiv NetSure531 A31 embedded high-frequency switching power supply system is a miniaturized, high power density, and high reliability embedded high-frequency switching power supply system designed by Emerson Network Energy based on high-frequency switching rectifier modules. The system adopts a 19 "structure design and can choose ordinary/high-efficiency rectifier modules. It supports energy-saving sleep technology and high-efficiency ordinary module hybrid insertion function, and can be applied to current mobile communication networks to meet the needs of efficient, green and environmentally friendly network construction such as LTE and FTTx.

Key Features

1.The installation space and cost can be saved due to its small size and embedded installation

2.Wide input voltage range(85 300Vac),strong ability in adapting power grid

3.Rectifier working temperature range:-40 +80

4.Supports ECO sleep technology, that optimizes system efficiency

5.Efficiency of the rectifier is above 96%,efficiency of the system is above 95%

6.Intelligent battery management system, which prolongs the working life of the battery

7.Provide multiple communication ports such as RS232, Ethernet port, dry contacts, etc, for flexible networking to achieve remote monitoring

Applications

Power supply for LTE in-building solutions

Power supply for FTTx broadband multi-solutions

Power supply for macro station and outdoor cabinet
