Home /Products/DC AC Inverters/CET Inverter Module Bravo 25 - 380/230-277 380Vdc Input 3kva/2.5kw P/N: T621D70201

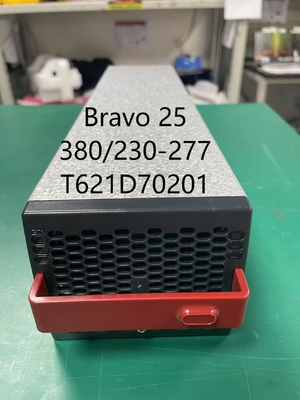

CET Inverter Module Bravo 25 - 380/230-277 380Vdc Input 3kva/2.5kw P/N: T621D70201

1
MOQ
1USD/SET
Price
CET Inverter Module Bravo 25 - 380/230-277 380Vdc Input 3kva/2.5kw P/N: T621D70201
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Brand: CET
Model Number: Bravo 25 - 380/230-277
Product Name: Modular Inverter
Part No.: T621D70201
AC Intput Data: 230 Vac / 11.8 A, 240 Vac / 11.0 A And 277 Vac / 9.5 A
AC Intput Voltage Range: 150 - 293 Vac
DC Input Data: 336 Vdc (200 - 430 Vdc)1 Derating Starts @259 Vdc
AC Output Data: 230 Vac / 13 A, 240 Vac / 12.5 A And 277 Vac / 10.8 A (200 - 277 Vac)
Efficiency AC To AC (EPC) / DC To AC: > 96% / > 94.5%
Dimension: 2U X 103 Mm X 435 Mm
Highlight:

380Vdc Input CET Inverter Module

,

3kva CET Inverter Module

,

25 CET Inverter Module
Basic Infomation
Place of Origin: CN
Brand Name: CET
Certification: CE
Model Number: Bravo 25 - 48/120
Document: CET - Modular Inverter - Da...EN.pdf
Payment & Shipping Terms
Packaging Details: Pallet
Delivery Time: 2-4 weeks
Payment Terms: T/T
Supply Ability: 500 sets / month
Product Description

CET Inverter Module Bravo 25 - 380/230-277 380Vdc Input 3kva/2.5kw P/N: T621D70201 0



CET Inverter Module Bravo 25 - 380/230-277 380Vdc Input 3kva/2.5kw P/N: T621D70201



Description:



Bravo 25 - 380/230-277 is a compact and scalable modular inverter providing a pure sine wave at AC output. It provides an excellent AC backup

solution in conjunction with a DC Power system. It uses cutting edge technology to provide the most energy-efficient in a compact size.



Applications

All business critical applications and all types of AC loads. The design is modular and scalable with hot- swappable inverter modules which ensures

low Mean Time to Repair (MTTR), reduction in service costs and meets the changing needs for future expansion.



Main Features

• Extra AC input for increased efficiency on double conversion

• Wide AC input range up to 293 Vac L-N

• Up to 12 kVA in 2RU - 19 inches

• Up to 1.35 MVA by using extra syncrhonization device

• 1P or 3P infrastructure

• Compatible with Inview S, X and GW
