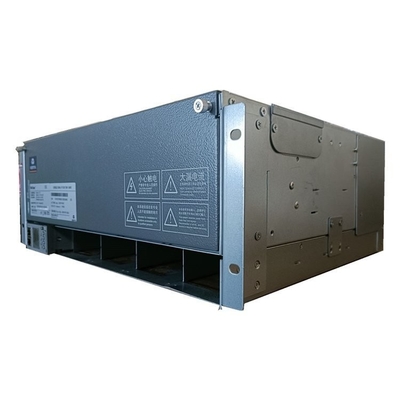

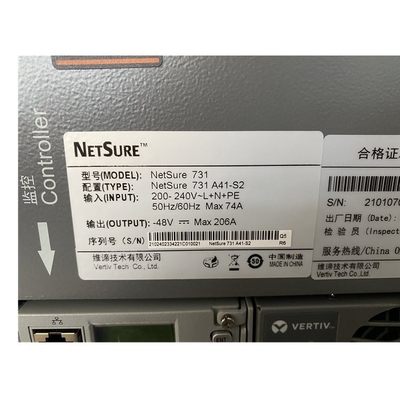

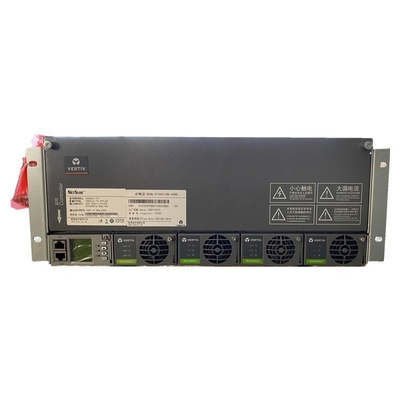

NETSURE 731A41 is a kind of embedded communication power supply system, which has the following functions:
- High Reliability3
- Wide Voltage Input Range: It can work in the voltage range of 80 - 300 Vac, which has strong adaptability to power grids and generators, and can ensure stable operation under different power supply conditions.
- Wide Working Temperature Range: The working temperature range is - 40 - 65 °C, which can adapt to various geographical regions and harsh environmental conditions.
- Comprehensive Lightning Protection Design: It is equipped with lightning protection designs on the AC side, DC side, and signal side, which can effectively enhance the system's lightning protection ability and protect the equipment from lightning damage.
- High Efficiency3
- High - Efficiency Modules: The efficiency of the modules is greater than 96%, which can save users' electricity costs.
- Energy - Saving Technologies: It has energy - saving technologies such as hibernation and high - efficiency module mixing, which can improve the operation efficiency.
- Intelligent Fan Speed Regulation: It has the function of intelligent fan speed regulation, which can reduce system losses and improve energy utilization efficiency.
- Intelligentization3
- Diverse Communication Interfaces: It is equipped with various communication interfaces such as RS232/RS485, network ports, and dry contacts, which enables flexible networking and realizes remote monitoring and control.
- Battery Management: It has a complete set of battery management functions, including battery under - voltage protection, temperature compensation, automatic voltage regulation, stepless current limiting, battery capacity calculation, online battery testing, etc., which can effectively prolong the battery life.
- Solar Controller Compatibility: It is compatible with solar controllers and can form an intelligent photovoltaic - electrical complementary power supply system, which can make full use of solar energy and save energy.
- Flexible Configuration3
- Modular Design: It adopts a modular design, which supports various application scenarios such as single - cabinet, double - cabinet, and triple - cabinet, and can be flexibly configured according to different requirements.
- Heat Exchange System: It is equipped with various door - mounted heat exchange systems such as heat exchangers, air conditioners, and TECs to meet the heat dissipation needs of different regions and equipment.
- Multiple Capacity Options: It provides multiple capacity options from 100A to 600A to meet the needs of various network construction.
- Quick Deployment3
- Standard Installation: It has a standard 19 - inch embedded installation design, which is convenient for installation and deployment.
- Front - Facing Maintenance: It adopts a full - front - facing maintenance design, which takes up less space and is easy to access.
- Low - Noise Design: It has a low - noise design, which can meet the construction requirements of various scenarios.
- Flexible Installation: It can be installed on the roof or on the ground, and is suitable for indoor machine rooms, outdoor cabinets, stairwells, basements, etc., and can be installed in an embedded or wall - mounted manner.
- Security and Anti - Theft3
- Anti - Theft Design: It has an embedded door and internal hinge design, and there are no exposed screws outside the cabinet to prevent prying. It also adopts a multi - point lock design to completely lock the cabinet door and make the force uniform. In addition, the battery compartment has an anti - theft design to reduce the risk of battery theft.
- Intrusion Alarm: It can be equipped with a variety of intrusion alarm functions to improve the security of the equipment.
Applications:
- l Communication
- l Fiance
- l Transport
- l IT room
- l Super markets
- l Medical treatment
- l Government
Solutions
We deliver a holistic set of solutions for Telecommunication Companies, whether they are based in China or operating globally. Our process begins with a thorough site survey to assess the existing conditions. Based on the findings, we propose professional and innovative plans that cater to each customer's individual needs. Our technical support is second to none, offering real-time assistance, and our maintenance services keep the telecom systems in optimal condition. Backed by a skilled team and a global network of trusted partners, we are committed to exceeding customer expectations.
FAQ :
1.Q: What measures are taken to maintain quality?
A: We implement a comprehensive quality control process. Before products leave our facility, they are put through simulated usage scenarios, load, full load, and current sharing tests to ensure their reliability and performance.
2.Q: Is there a minimum purchase requirement?
A: No, there’s no minimum order quantity. Whether you need just one item or a large batch, we can accommodate your order. Do note that the price and lead time might differ based on the quantity ordered.
3.Q: Would you mind sharing details about your company?
A: Certainly! I’d be delighted to share our company’s introduction document with you shortly. It contains all the essential information about our company, including our history, operations, and business scope, giving you a clear picture of who we are.
4.Q: What are the key benefits of choosing your company?
A: One of our major strengths is our abundant inventory, which enables us to ensure consistent supply. Additionally, we adapt to different customer requirements by offering flexible solutions, meeting your specific needs effectively.
5.Q: Can I get product samples and their corresponding prices?
A: You can obtain samples. The cost of samples is based on the regular price, and you’ll be responsible for covering the shipping charges.
