CE+T Inverter Modular Inverter Bravo 25 - 110/230-277 110Vdc 3KVA 2.5KW T621D50201 / T624D50010 / T624D50000

5
MOQ
1USD
Price
CE+T Inverter Modular Inverter Bravo 25 - 110/230-277 110Vdc 3KVA 2.5KW T621D50201 / T624D50010 / T624D50000
Features Gallery Product Description Request A Quote
Features
Specifications
Prat Number: T621D50201
Brand: CE+T
Dielectric Strength DC/AC: 2100 Vdc
Nominal Output Power (VA) / (W): 750 VA / 525 W
AC Input Voltage (DC): 230 Vac / 11.8 A, 240 Vac / 11.0 A And 277 Vac / 9.5 A
DC Inptu Voltage: 110 Vdc (90 - 150 Vdc)
Voltage (AC*): 220/230/240 V
Frequency: 50 - 60 Hz / 0.03 %
AC Nominal Current: 3.25 A
Efficiency (Typical): 93% / 89%
Highlight:

T621D50201

,

T624D50010

,

T624D50000
Basic Infomation
Place of Origin: CHINA
Brand Name: CE+T
Model Number: Bravo 25 - 110/230-277
Payment & Shipping Terms
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: lakh
Product Description

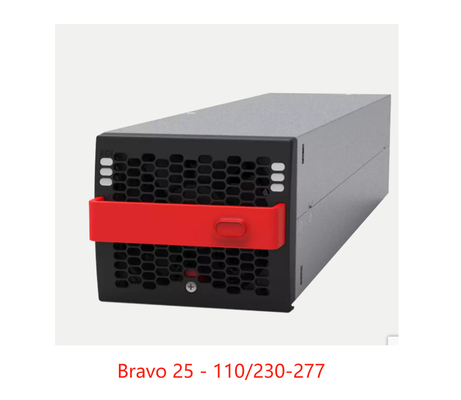

CE+T Inverter Modular Inverter Bravo 25 - 110/230-277 110Vdc 3KVA 2.5KW T621D50201 / T624D50010 / T624D50000 0

Bravo 25 – 110/230-277 ( Part Number: T621D50201 ) is a compact modular inverter that converts a 110 Vdc power source into 277 Vac.

By using at least three modules, we can offer solutions for three-phase infrastructures (3x400Vac + N).

An additional AC input is used under normal conditions to achieve an overall conversion efficiency of 96%.

In the event of a grid failure, it automatically switches to the DC to secure the loads.

Invest step-by-step in your power infrastructure with a modularity from 3 kVA to up to 1.35 MVA.

The hot swap feature makes maintenance easier.

The low ripple voltage avoids any disturbances on DC loads and batteries.

Functions:

  • Extra AC input for increased efficiency
  • Compact design
  • Up to 1.35 MVA
  • 1P or 3P infrastructure
  • No disturbances on DC loads & batteries

Specification

In: DC voltage (input range) 110 Vdc (90 – 150)
In/Out: AC voltage (input range) 230, 240 & 277 Vac (150 – 293)
Output power 3 kVA / 2.5 kW
Efficiency: DC/AC 93.7%
Efficiency: AC/AC 96%
Temperature -20°C to 65°C (de-rating from 40°C)
Dimension 2U x 103 mm x 435 mm
Part number T621D50201



CE+T Inverter Modular Inverter Bravo 25 - 110/230-277 110Vdc 3KVA 2.5KW T621D50201 / T624D50010 / T624D50000 1

CE+T Inverter Modular Inverter Bravo 25 - 110/230-277 110Vdc 3KVA 2.5KW T621D50201 / T624D50010 / T624D50000 2
CE+T Inverter Modular Inverter Bravo 25 - 110/230-277 110Vdc 3KVA 2.5KW T621D50201 / T624D50010 / T624D50000 3

CE+T Inverter Modular Inverter Bravo 25 - 110/230-277 110Vdc 3KVA 2.5KW T621D50201 / T624D50010 / T624D50000 4

CE+T Inverter Modular Inverter Bravo 25 - 110/230-277 110Vdc 3KVA 2.5KW T621D50201 / T624D50010 / T624D50000 5
CE+T Inverter Modular Inverter Bravo 25 - 110/230-277 110Vdc 3KVA 2.5KW T621D50201 / T624D50010 / T624D50000 6CE+T Inverter Modular Inverter Bravo 25 - 110/230-277 110Vdc 3KVA 2.5KW T621D50201 / T624D50010 / T624D50000 7
