Stable 19 Inch Rack Mounted 1KW 2KW 3kW DC - AC Inverter Professionally Custom Made For 12V DC To 220V AC Power Needs

10
MOQ
1USD
Price
Stable 19 Inch Rack Mounted 1KW 2KW 3kW DC - AC Inverter Professionally Custom Made For 12V DC To 220V AC Power Needs
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: BWT12-220/1KW/2KW/3KW
Product Name: Inverter Module
AC Input Voltage: 170~270 VAC (220V Norm)
AC Breaker: 13.63A MCB
Battery Input Voltage: 12Vdc
Output Capacity: 1KW/2KW/3KW
THD: ≤3% (Line Load)
Switch Time (By Pass To Inverter: ≤6ms (With Load)
Highlight:

1KW DC AC Inverters

,

2KW DC AC Inverters

,

3KW DC AC Inverters

Basic Infomation
Place of Origin: CN
Brand Name: Custom made
Certification: CE
Model Number: TF12-220 1/2/3kw
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 5-6 weeks
Supply Ability: 500 sets / month
Product Description

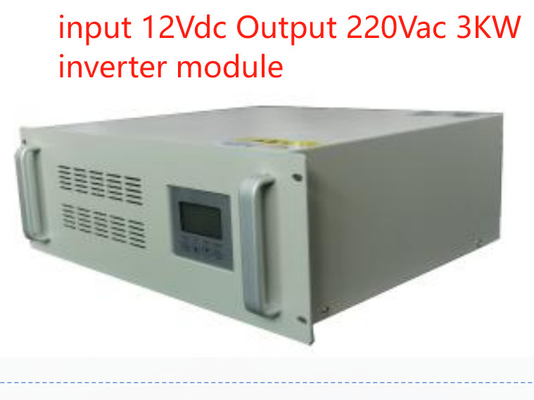

Stable 19 Inch Rack Mounted 1KW 2KW 3kW DC - AC Inverter Professionally Custom Made For 12V DC To 220V AC Power Needs 0


The 3KW inverter combines high - performance power conversion with intelligent control features.
It is integrated with a microcontroller - based intelligent management system that continuously
monitors the input and output parameters. This allows for real - time adjustment of the inverter's
operation to ensure stable power output under different load conditions.

The inverter comes with multiple protection functions, including over - voltage protection, under -
voltage protection, over - current protection, and short - circuit protection. These protection mechanisms
not only safeguard the inverter itself but also protect the connected electrical equipment from potential
damage caused by power surges or abnormal power conditions.

In terms of connectivity, it is equipped with communication interfaces such as RS485 or Wi - Fi.
This enables users to remotely monitor and control the inverter through a mobile app or a computer.
For example, in a large - scale solar power plant, operators can use the remote - monitoring function
to check the status of multiple inverters simultaneously, reducing maintenance costs and improving
operational efficiency.

Its versatility makes it suitable for a wide range of applications. In a residential setting, it can be used
as a backup power source during power outages, powering essential household appliances like refrigerators,
lights, and medical devices. In commercial applications, it can support point - of - sale systems, security
cameras, and small - scale industrial equipment.



Main features:


  • Standard 19-inch rack-mounted .
  • True sine wave output with a Total Harmonic Distortion (T.H.D) less than 3%.
  • An LCD display that shows equipment parameters in real time, making the operation status clear at a glance.
  • Dual-CPU intelligent control technology, ensuring excellent performance.
  • It supports settings for grid mode, energy-saving mode, and battery mode, providing flexible applications.
  • Equipped with an RS232 communication port.
  • Features power-on self-test, soft output start, and automatic restart when AC or DC power is restored.
  • Has an auto-switch function: switching between DC to AC and AC bypass takes less than 6 ms.
  • Conducts real-time monitoring of the system operating status, with audible and visual alarms.
  • Records historical alarm messages for easy query.
  • Built-in voltage regulator to stabilize the AC voltage.
  • Maintenance bypass and DC backup options are available.
  • Provides multiple protections: short load protection, overload protection, battery over/under voltage protection,
  • overcurrent protection, and over-temperature protection.

Parameters:

Technical Data
Model BWT12/220-3000W
INPUT
AC Input Voltage 170~270 VAC (220V Norm)
AC Breaker 13.63A MCB
Battery Input Voltage 12Vdc
Battery Voltage Range 10-15Vdc
Battery Input Breaker 250@MCB
Cooling Force Cooling
DC Input Current 300A Max
Output Frequency 50Hz±0.1%
OUTPUT
Rated Output Capacity 3000W
Rated output Voltage 220VAC (Inverter Mode)
Rated Output Current 13.63A
Output Voltage Range 220Vac(Tolerance ±5% @Inverter Mode)
AC Output Socket NEMA L5-30R*2
Output Efficiency 85~90% (Inverter Mode)
Output Frequency 50Hz
Frequency Range 47~53Hz
Output Wave Pure sine wave
THD ≤3% (Line Load)
Switch Time (By pass to Inverter mode) ≤6ms (With Load)
PROTECTIVE FEATURE
AC Under Voltage Switch Protection ≤170Vac (Backlash voltage≥10Vac)
AC over Voltage Switch protection ≥280AC
Over-Temperature Yes (Auto Switch)
Battery under voltage protection point ≤85
Battery Low-voltage alarm 12.6±0.5
Output Over Current Protection
Over Load Capacity Continue working 30s @ overload 110%~120%
Over Load Capacity Continue working 300ms @over load 160%
Over Temp. Protection Yes
short circuit Protection Yes (Don’t test under AC Connect)
Reverse connection protection Yes
Output OVP ≥140VAC(Inverter Mode)
Output low voltage alarm ≤85VAC (Inveter Mode)
SAFETY AND EMC
Dielectric strength(AC-Chassis) 3500Vdc/10mA//1min .No flash over, no breakdown, no arc (Only AC Input priority)
Dielectric strength(DC-Chassis)

750Vdc/10mA/1min. No flash over, no breakdown


LVD EN 60950-1
EMC/EM I EN 61000-6-3; EN 61000-6-1 ;IEC 61000-6-2 and IEC 61000-6-4

ROHS


IEC 62321-4 , IEC 62321-5,IEC 62321-6,IEC 62321-7,IEC 62321-8


ENVIRONMENT TEST PERFORMANCE
Ambient Temp. 0~ +40℃
High temperature operation 40±2℃ (rated load 24H)
Low temperature operation 0±2℃ (rated load 24H)
High temperature storage 50±2 ℃,24H
Low temperature storage -150±2℃,24H
Humidity 0~90%,No moisture condensation
Operating Altitude (m) Altitude Full power up to 2000m.derating -2% / 100m, max altitude 5000m
COMMUNICATION
Rs232 Yes
LCD DISPLAY

LCD Status


Input and output Voltage, Frequency ,Output Current,Temp., Load Rate, etc.


Inverter Status


Normal Mains, Normal Inverter, Battery Under-voltage and output overload etc.


MEASUREMENT
Size W*D*H(mm) 484*452*176mm



Stable 19 Inch Rack Mounted 1KW 2KW 3kW DC - AC Inverter Professionally Custom Made For 12V DC To 220V AC Power Needs 1

Stable 19 Inch Rack Mounted 1KW 2KW 3kW DC - AC Inverter Professionally Custom Made For 12V DC To 220V AC Power Needs 2Stable 19 Inch Rack Mounted 1KW 2KW 3kW DC - AC Inverter Professionally Custom Made For 12V DC To 220V AC Power Needs 3

Stable 19 Inch Rack Mounted 1KW 2KW 3kW DC - AC Inverter Professionally Custom Made For 12V DC To 220V AC Power Needs 4


 ( Custom- made , 1KW/2KW/3KW ,  Battery Input 12Vdc Output 220Vac  Colors can be grey or black )


Stable 19 Inch Rack Mounted 1KW 2KW 3kW DC - AC Inverter Professionally Custom Made For 12V DC To 220V AC Power Needs 5




Stable 19 Inch Rack Mounted 1KW 2KW 3kW DC - AC Inverter Professionally Custom Made For 12V DC To 220V AC Power Needs 6

Stable 19 Inch Rack Mounted 1KW 2KW 3kW DC - AC Inverter Professionally Custom Made For 12V DC To 220V AC Power Needs 7


Stable 19 Inch Rack Mounted 1KW 2KW 3kW DC - AC Inverter Professionally Custom Made For 12V DC To 220V AC Power Needs 8
