Name: Eltek FP2 24V 7.2KW Powercore 2U 19 Inch Max 4 Slots For Flatpack2 24/1800 HE Smartpack R Controller
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: FP2 24V 7.2KW
Price: 15000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

MODEL: FP2 24V 7.2KW

Product Family: FP2 24V 7.2KW

Voltage: 21.75 - 28.8 VDC

Max Power, Nominal Input: 7200W

Max Current: 75 A

Efficiency: 95 %

Frequency: 45 - 66 Hz, 15-18.5 Hz1) / 0 Hz

Current: 11.25 ADC

Highlight:

Eltek FP2 24V

Eltek FP2 7.2KW

Eltek FP2 2U

Basic Infomation

Place of Origin: China

Brand Name: Eltek

Model Number: FP2 24V 7.2KW

Payment & Shipping Terms

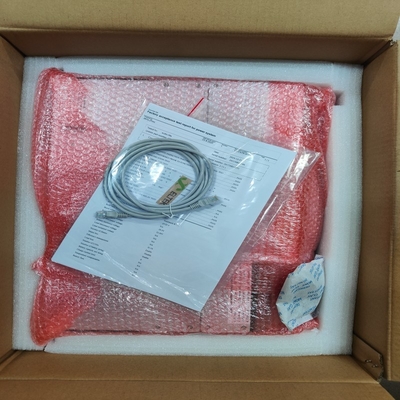

Packaging Details: carton

Delivery Time: 15-30 days

Payment Terms: T/T

Gallery

Eltek FP2 24V 7.2KW Powercore 2U 19 Inch Max 4 Slots For Flatpack2 24/1800 HE Smartpack R Controller

Product Description

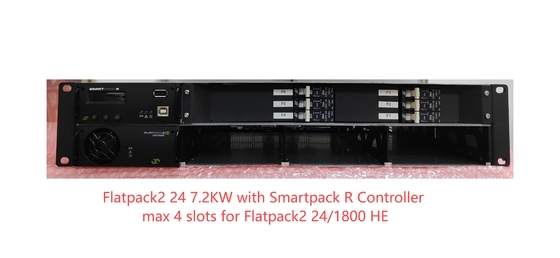

Eltek FP2 24V 7.2KW Powercore 2U 19 Inch Max 4 Slots For Flatpack2 24/1800 HE Smartpack R Controller 0

The Flatpack2 modular concept has a lot of benefits compared to traditional solutions in the industry. It has high efficiency; less power consumption and heat dissipation. The overall Size and footprint of cabinet is 50% of Thyristor Controlled Size. Modular Hot Plug-in Construction allows redundancy, n+1, n+2 configurations.

It's easy to do repairing with MTTR< 5 minutes.Very high MTBF > 350000 hours, wide input AC Voltage and frequency range.Possibility to build combined systems with rectifiers, DC/DC converters and inverters controlled by one controller.

Specification


Model	24/1800 HE
Part number	241115.205
INPUT DATA
Voltage (nominal)	185 - 275 V_AC / 185 - 300 V_DC
Voltage (range)	85 - 300 V_AC / 85 - 300 V_DC
Frequency	45 - 66 Hz, 15-18.5 Hz1) / 0 Hz
Current (maximum) @ nominal input, full load	11.25 A_DC
Power Factor	0.99 (@ 50-100% load)
THD (@ 230 V_AC)	< 4 % (@ full load)
Protection	Fuse in both lines, varistor for transient protection, shutdown when V_IN is out of range
OUTPUT DATA
Voltage (default)	26.75 V_DC
Voltage (adjustable range)	21.75 - 28.8 V_DC
Max power, nominal input	1800 W
Max power, de-rated @V_IN = 85 V_DC	750 W
Max current, @V_OUT ≤ 24 V_DC	75 A
Hold-up time, default voltage and 1000 W load	20 ms, V_OUT > 21 V_DC
Current sharing	± 5% of maximum current from 10 to 100% load
Static voltage regulation (10-100% load)	±0.5% from 10 - 100% load and supplied power not limited by PV panels
Dynamic voltage regulation	±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms
Ripple	< 250 mV_PP , 30 MHz bandwidth
Psophometric noise	< 2 mV_RMS
Protection	Overvoltage shutdown, short circuit proof, high temperature, hot plug-in inrush current limiting
OTHER SPECIFICATIONS
Peak Efficiency	95 %
Isolation	3 kV_AC – input and output, 1.5 kV_AC – input earth, 0.5 kV_DC – output earth
Alarms (Red LED)	Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure
Warnings (Yellow LED)	Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage
Normal (Green LED)	Input and output ok
MTBF (Telcordia SR-332 Iss.I method III (a))	>300 000 (@ T_ambient : 25 °C)
Operating temperature (5 - 95% RH non-cond.)	- 40 -75°C [-40 - 167°F ]
Max output power de-rates above temp / to	45°C [+113°F] / 1200W
Storage temperature	-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing
Dimensions[WxHxD] / Weight	109 x 41.0 x 327mm [4.25 x 1.61 x 13”] / 1.950 kg [4.3lbs]
DESIGN STANDARDS
Electrical safety	EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC 60950-1:2013 UL 60950-1:2014
EMC	EN 61000-6-1:2007, -6-2:2005, -6-3:2007 + A1:2010, -6-4:2007 + A1:2010 IEC 61000-6-5:2015, EN 300 386:v2.1.1, FCC CFR 47 Part 15:2008
Environment	ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) 2011/65/EU (RoHS) & 2012/19/EU (WEEE) Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised
1) Maximum power de-rated to 1000W @230Vac & 16 2/3Hz input

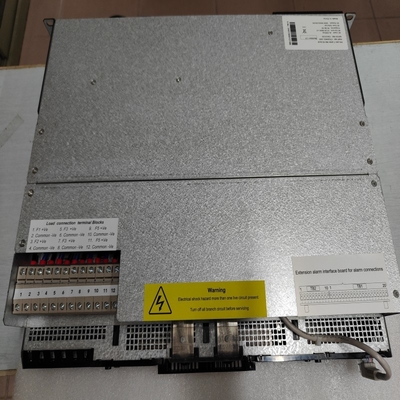

Eltek FP2 24V 7.2KW Powercore 2U 19 Inch Max 4 Slots For Flatpack2 24/1800 HE Smartpack R Controller 2

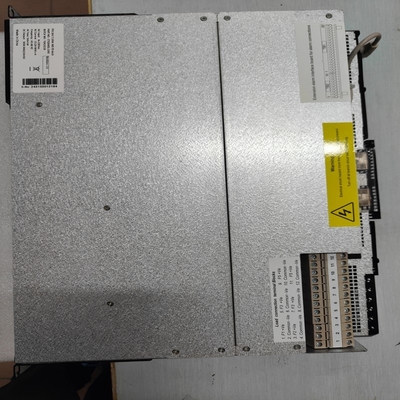

Eltek FP2 24V 7.2KW Powercore 2U 19 Inch Max 4 Slots For Flatpack2 24/1800 HE Smartpack R Controller 7

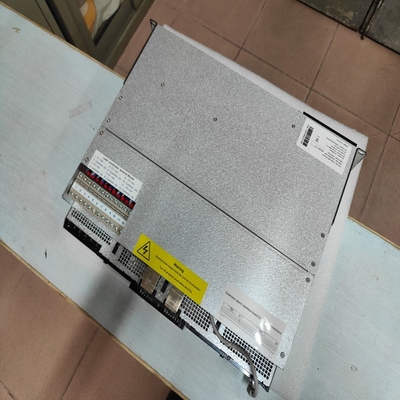

Eltek FP2 24V 7.2KW Powercore 2U 19 Inch Max 4 Slots For Flatpack2 24/1800 HE Smartpack R Controller 8

Eltek FP2 24V 7.2KW Powercore 2U 19 Inch Max 4 Slots For Flatpack2 24/1800 HE Smartpack R Controller 10
