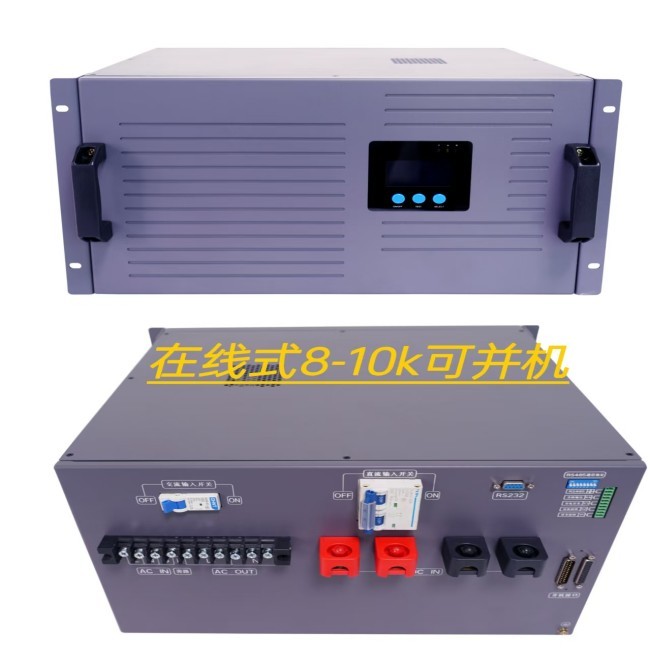

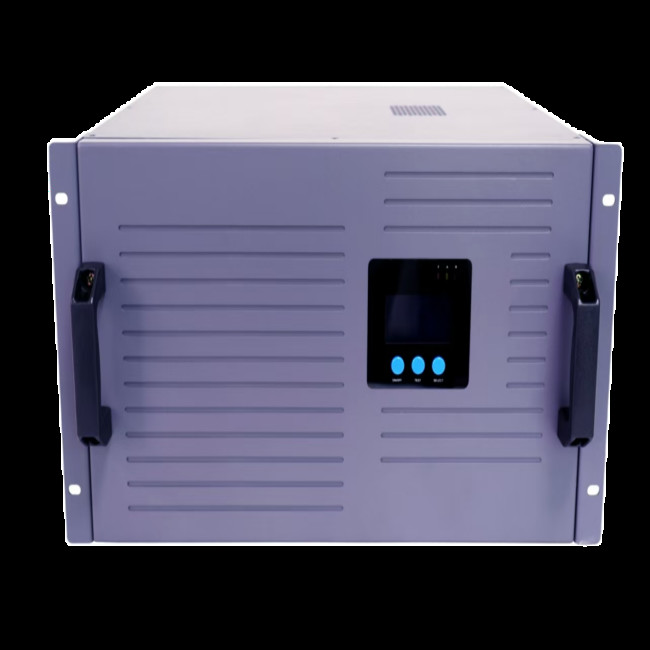

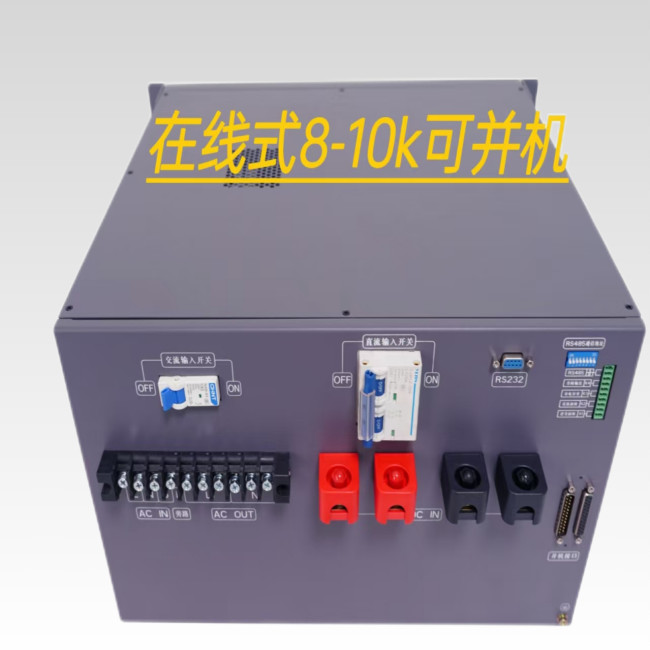

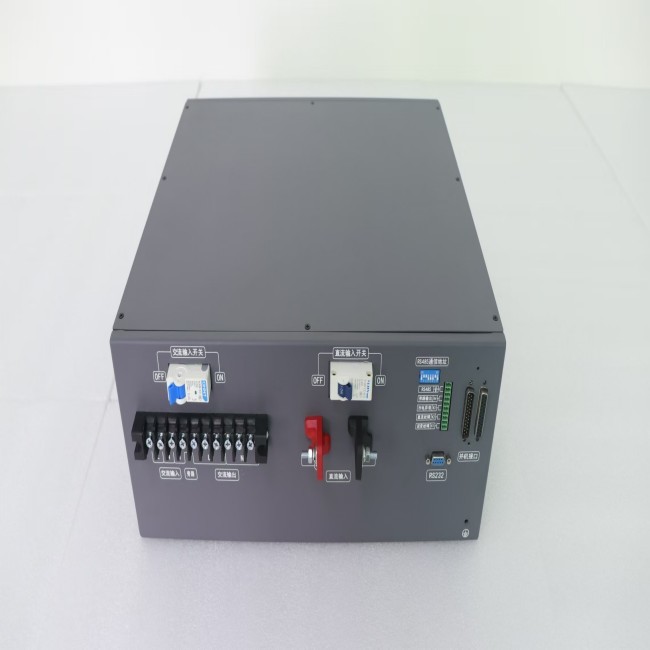

48vdc 230vac Online UPS 8kva Inverter Module

This series of inverter power supplies stands out as a premium, double-conversion online uninterruptible power source, featuring single-phase input and output capabilities. Engineered for exceptional efficiency and unwavering reliability, it delivers top-notch AC power to your equipment, ensuring optimal performance. The sleek and compact design of our 5~10KVA model boasts a high AC input power factor, and its unique parallel operation feature allows two units to run redundantly, significantly enhancing power supply reliability. Tailor-made for critical infrastructure in sectors like electricity, telecommunications, mobile networks, Unicom, and railways, this power supply is a must-have for ensuring uninterrupted operation of your essential equipment.

Operation Instructions

Basic Operations: Always adhere to the operational guidelines specified for individual units.

Parallel Power-Up Sequence: Once the main power supply is connected, simply press and hold the start button on any one of the inverters. The second inverter will power up simultaneously, and both will seamlessly transition to the inverter state. For battery power-up, press and hold the power button on both inverters consecutively, causing the power supply to switch to battery inverter mode.

Parallel Shutdown Procedure: To achieve parallel shutdown, press and hold the shutdown button on any unit for more than 4 seconds (accompanied by two audible prompts). For individual power-off, press the power-off button on any unit for a duration between 1 and 4 seconds (accompanied by an audible prompt). To fully shut down the power supply, ensure that the AC input is disconnected to render the bypass circuit inactive.

Specification
