BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution

5
MOQ
1USD
Price
BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Rated  Capacity: 6KVA
Rated Voltage: 220VAC
Rated Frequency: 50HZ
Power Off Voltage: ≤120Vac Or ≥260Vac,backlash±5V
   Communication: RS485
Insulation Strength: 2KVac,1min
Highlight:

BWT STS 190-250VAC Parallel Model

,

6-30KVA Parallel Model Solution

,

190-250VAC Parallel Model Solution
Basic Infomation
Place of Origin: CHINA
Brand Name: BWitt
Model Number: STS 190-250VAC
Payment & Shipping Terms
Packaging Details: 27*32*10.5
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: lakh
Product Description

BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution 0

The single-phase STS static switch is specially design for the important

equipment that cannot be powered off. It is a non-contact electronic switch

device that realizes two-way AC power supply backup and fast switching to

each other. It can be switched automatically or manually, and the switching

time less than 4mS to ensure the supply continue.Always used it in parallel model solution.



Feature

Full digital control, strong anti-jamming capability and high computerization speed;



The transfer time is ≤5ms; high reliability; manual and automatic switches are both available;



Strong overload capacity; can be started under the full load



Having input and output over-voltage and under-voltage, over-temperature and overload protection functions, etc.;

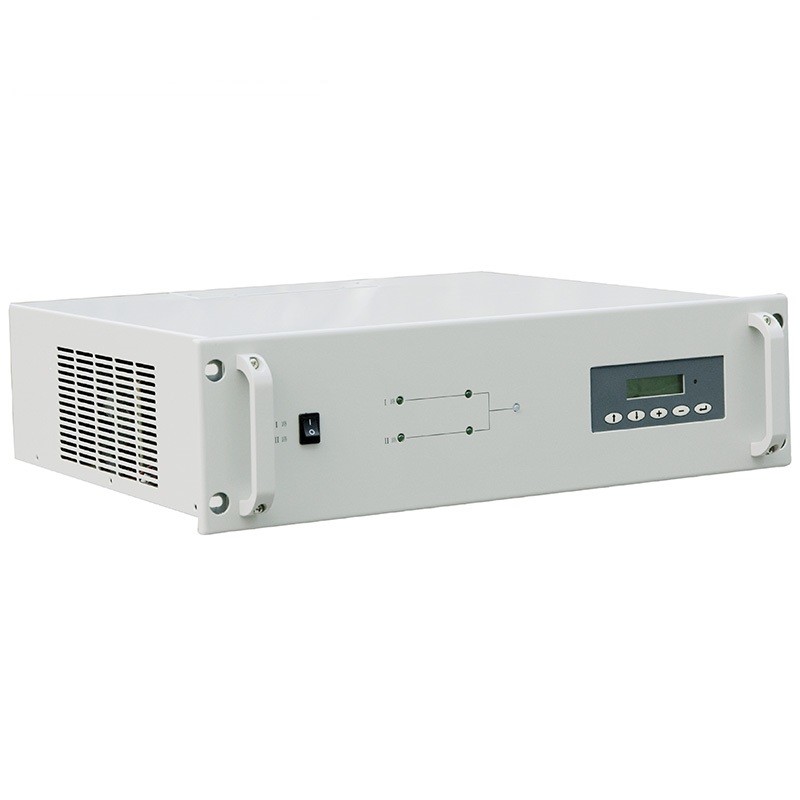

The front panel is equipped with a control panel (NA for the one less than 10K), so the information about the condition is obvious.



Specification

oduct Size Rated Capacity 6KVA 10KVA 15KVA 20KVA 30KVA

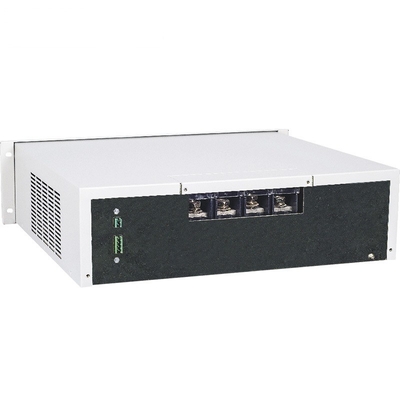

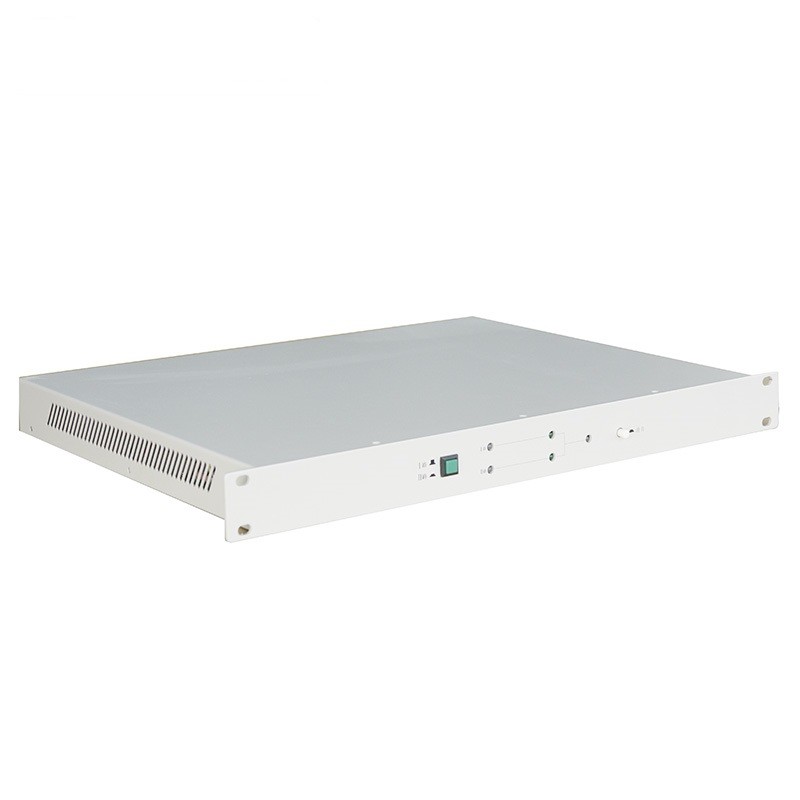

Size (W×H×D)(mm) 19"1U 19"3U
490*44*343 490*132*404
Switch Time ≤4mS
AC Input Rated Voltage 220VAC
Rated Voltage Range 190~250VAC
Rated frequency 50HZ
Valid working Voltage 220Vac±12.5%,backlash±5V
frequency 50Hz±10%,backlash±0.2Hz
Power off Voltage ≤120Vac Or ≥260Vac,backlash±5V
Power off frequency ≤42.5Hz or ≥57.5Hz,Power off Voltage=±0.2Hz
Overload capacity

Load current ＜105％, continue running

Load current: ＞105％, 60mS power off
Communication Interface RS485
Environment Insulation strength 2KVac,1min
Noise (1m) ＜45dB ＜50dB
Working environment temperature －10～50℃
Transportation and storage temperature －40～70℃
Humidity 0～90%, non condensing
altitude(M) ≤3000m,1500～3000m, Rise every 100m, 1% derated.



BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution 1

BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution 2BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution 3BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution 4



=BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution 5

BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution 6BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution 7

BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution 8BWT Single Phase 6-30KVA STS 190-250VAC Parallel Model Solution 9
