BWT 220Vdc 220Vac Hot-Swap Modular Power Inverter 2KVAS BWT220/220-2KVAS
Features Gallery Product Description Request A Quote
Features
Specifications
Model: BWT220/220-2KVAS
DC Input Voltage: 220Vdc
DC Input Current: 9.1Max
Rated Input Current: 9.1A
Output Capacity: 2000VA
Rated Output Voltage: 220VAC
Rated Output Current: 7.3A
Efficiency: ≥85%
Output Frequency: 50Hz
Output Wave: Pure Sine Wave
Highlight:

220Vac Hot-Swap Modular Power Inverter

,

BWT Hot-Swap Modular Power Inverter

,

2KVAS Hot-Swap Modular Power Inverter

Basic Infomation
Place of Origin: CHINA
Brand Name: BWitt
Model Number: BWT220/220-2KVAS
Payment & Shipping Terms
Packaging Details: 27*32*10.5
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: lakh
Product Description

BWT 220Vdc 220Vac Hot-Swap Modular Power Inverter 2KVAS BWT220/220-2KVAS 0

BWT1500 serial 220Vdc &220Vdc modular parallel connection inverter is an inversion device that converts 220V dc/220Vdc power supplied by communication DC power supply into 220V/50Hz sinusoidal AC power. Through conversion on the input DC power, the Pure Sine wave inverter offers users stable and Non-distorted AC power. In case of a power failure in business places, it offers key devices the power of flexible output voltage and frequency.



Feature

Digital control: It adopts 32-bit DSP full digital and high-frequency SPWM technology, featuring strong anti-interference ability, fast calculation speed, high intelligence, accurate control precision and pure output waveform

N+1 parallel redundant design: It can form an N+1 parallel redundant power supply system. The modules are backup each other, with high reliability and flexible configuration.Large 128*64 digital LCD display data information,4 led display working;

No master-slave parallel technology: The operation and parallel connection of each module are independently controlled by the built-in DSP, no single point of failure, independent flow between modules.

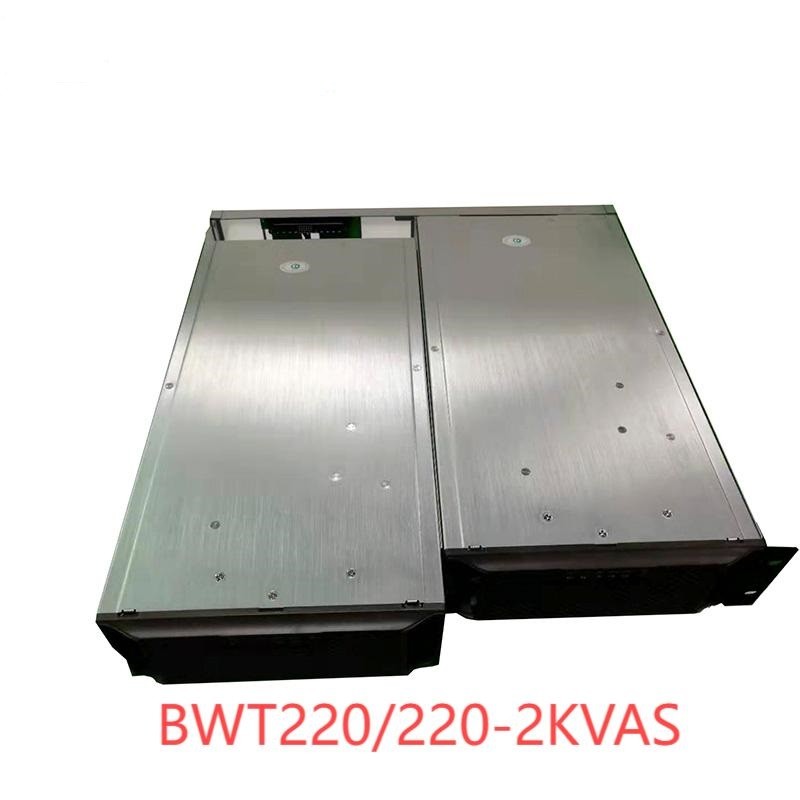

With hot plugging: no need to do any parameter setting and operation, plug and play, the module automatically enters the normal working state, maintenance and replacement is simple and fast.

Module built-in bypass: Users can choose inverter priority or bypass priority

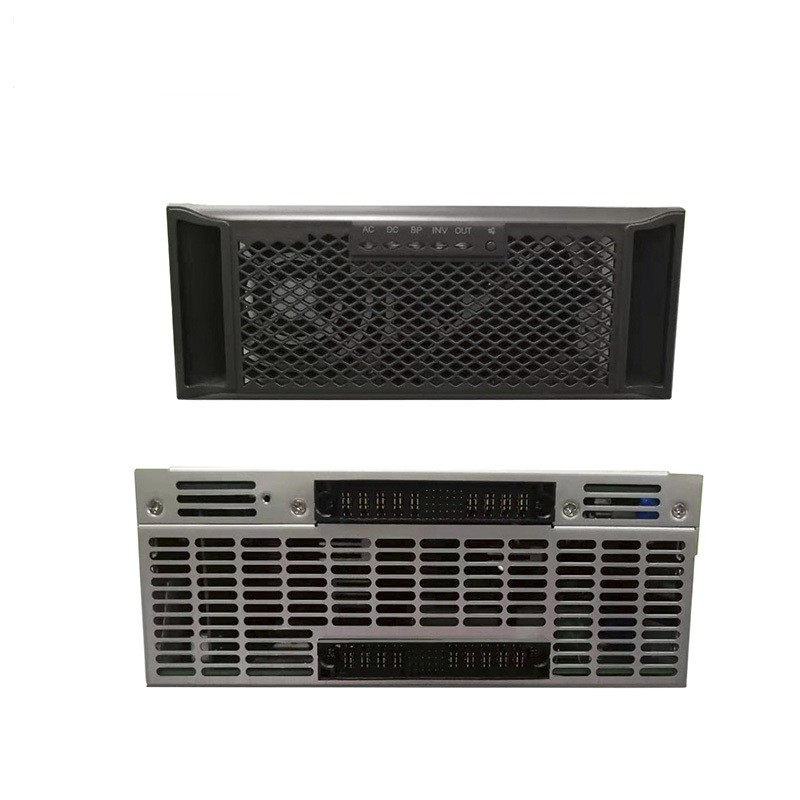

Monitoring management: indicator panel, fault sound and light alarm, RS485 communication interface and fault dry contact.

Protection function: It has the functions of input over-voltage, output over-voltage, over-temperature, short-circuit and so on.

High power density: 1/2 19〞 width design, the volume is only half the width of the conventional inverter, saving space and convenient parallel.



Specification

Technical Data
Model BWT220/220-2KVAS
INPUT
DC Input Voltage 220Vdc
DC Input Current 9.1Max
DC Input Voltage Range 190-270V
Backfill Noise Current ≤10%
PF 0.8
AC BY-PASS INPUT
Input Voltage Range 270V-190V(±10Vac)
Rated Input Current 9.1A
Transfer Time <12ms
OUTPUT
Output Capacity 2000VA
Rated Output Capacity 1600W
Rated output Voltage 220VAC
Rated Output Current 7.3A
Output Voltage Range 220Vac(Tolerance ±1.5% )
Output Efficiency ≥85%
Output Frequency 50Hz
Frequency Range 43~67Hz
Output Wave Pure sine wave
THD ≤3% (Line Load)
Switch Time (By pass to Inverter mode) ≤12ms (With Load)
Output Frequency Range 50±0.1% or 60±0.1%
Dynamic Response Time 5%(load 0←→100%)
PF 0.8
Output Over Current Protection
Over Load Capacity Continue working 10min @105%<load<125%
Over Load Capacity Continue working1min @ 125%<Load<150%
Over Temp. Protection Yes
short circuit Protection Yes (Don’t test under AC Connect)
Reverse connection protection Yes
ENVIRONMENT TEST PERFORMANCE
Ambient Temp. -20~ +50℃
High temperature operation 50±2℃ (rated load 24H)
Low temperature operation -20±2℃ (rated load 24H)
High temperature storage 80±2 ℃,24H
Low temperature storage -40±2℃,24H
Humidity 0~90%,No moisture condensation
Operating Altitude (m) Altitude Full power up to 2000m.derating -2% / 100m, max altitude 5000m
PARALLEL MODE
Max Parallel quantities 8 units
