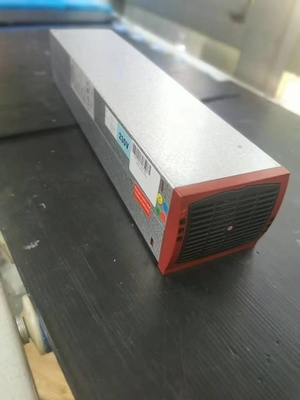

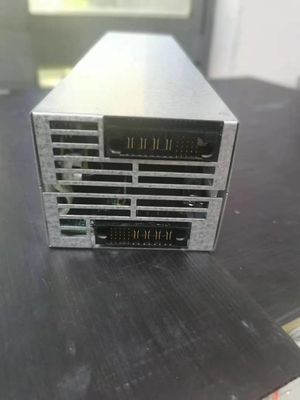

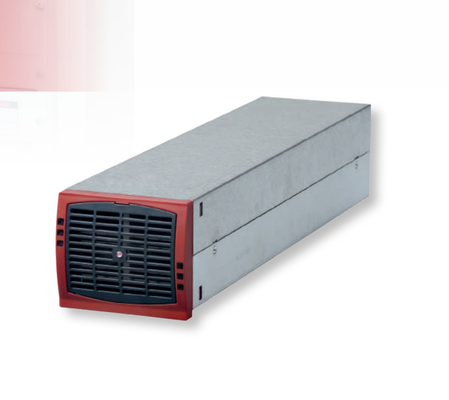

24 / 230 |
48 / 230 |
60 / 230 |
110 ** / 230 |
220***/ 230 |
| GENERAL |
| EMC (immunity) |
EN 61000-4-2 / EN 61000-4-3 / EN 61000-4-4 / EN 61000-4-5 / EN 61000-4-6 / EN 61000-4-8 |
| EMC (emission) (class) |
EN 55022 (A) |
EN 55022 (B) |
EN 55022 (A) |
EN 55022 (B) |
| Safety |
EN62040-1 |
| Cooling / Isolation |
Forced / Doubled |
| MTBF |
240 000 hrs (MIL-217-F) |
| Efficiency (Typical): Enhanced power conversion / on line |
> 95.5% / > 89.5% |
96% / 91% |
96.5% / 92.5% |
| Dielectric strength DC/AC |
4300 Vdc |
| True Redundant Systems – compliant |
3 disconnection levels on AC out and DC in power ports
4 disconnection levels on AC in port
|
| RoHS |
Compliant |
| Vibration |
GR63 office vibration 0 to 100 hz-0.1 g / transport vibration 5-100 Hz 0.5 g 100 to 500 hz-1.5 g / Drop test |
| Operating conditions |
Designed for installation in an IP20 or IP21 environment.
When installed in a dusty or humid environment, appropriate measures (air filtering, …) must be taken.
|
| Altitude above sea without de-rating |
< 1500 m / derating > 1500 m – 0.8 % per 100 m |
| Ambient / storage temperature / relative humidity |
-20 to 50 ° C / -40 to 70 ° C / 95 %, non-condensing |
| Material (casing) |
Coated steel-ALU ZINC |
|

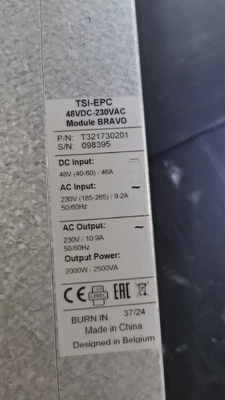

| AC OUTPUT POWER |
| Nominal Output power (VA) / (W) |
1500 / 1200 |
2500 / 2000 |
| Short time overload capacity |
150 % (15 seconds) 110 % permanent within T° range |
| Admissible load power factor |
Full power rating from 0 inductive to 0 capacitive |
| Internal temperature management and switch off |
Yes |
| DC INPUT SPECIFICATIONS |
| Nominal voltage (DC) |
24 V |
48 V |
60 V |
110 V |
220 V |
| Voltage range (DC) |
19 – 35 V |
40 - 60 V |
48 - 72 V |
90 - 160 V |
170 - 300 V |
| Nominal current |
56 A (at 24 Vdc and
1200 W output)
|
46 A (at 48 Vdc and
2000 W output)
|
35 A (at 60 Vdc and
2000 W output
|
19 A (at 110 Vdc and
2000 W output)
|
9.8 A (at 220 Vdc and
2000 W output
|
| Maximum input current (for 15 second) / voltage ripple |
84 A / < 100 mV rms |
84 A / < 2 mV
Psopho
|
52 A < 100 mV rms |
29 A / < 200 mV rms |
14.9 A / < 200 mV
rms
|
| Input voltage boundaries |
User selectable with T2S interface |
|
AC INPUT SPECIFICATIONS
AC input available only with EPC modules, REG modules do not have any ACin
|
| Nominal voltage (AC) |
220/230/240 V 1P or 3P (Min 3 shelves for 3P) |
| Voltage range (AC) |
150-265 V |
|
Brownout
|
150 to 185 V linear derating 150 VA/120 Watts per 10 Vac |
|
1200 VA / 960 W
@ 150 Vac
|
2000 VA/1600 W @ 150 Vac |
| Conformity range before transfer to DC |
Adjustable |
| Power factor |
> 99% |
| Frequency range (selectable) / synchronization range |
50 – 60 Hz / range 47 – 53 Hz / 57 – 63 Hz |
| AC OUTPUT SPECIFICATIONS |
| Nominal voltage (AC*) |
220/230/240 V |
| Frequency / frequency accuracy |
50 - 60 Hz / 0.03 % |
| Total harmonic distortion (resistive load) |
< 1.5 % |
| Load impact recovery time |
0.4 ms |
| Turn on delay |
20 s to 40 s depending on the number of module installed |
| Nominal current. Protected against reverse current |
6.6 A |
10.9 A |
| Crest factor at nominal power |
2.8 : 1 |
3 : 1 |
| With short circuit management and protection |
| Short circuit clear up capacity |
10 x In for 20 msec - Available while Mains is available at AC input port
With magnitude control and management
|
| Short circuit current after clear up capacity |
2.1 In during 15 s and 1.5 In after 15 s |
| IN TRANSFER PERFORMANCE |
| Max. voltage interruption / total transient voltage duration (max) |
0 s / 0 s |
| SIGNALING & SUPERVISION |
| Display |
Synoptic LED |
| Alarms output / supervision |
Dry contacts on shelf / Standard USB port and MODBUS on T2S, optional : Candis Display / Candis TCP-IP |
| Remote on / off |
on rear terminal of the shelf via T2S |
