Name: BWT 5KW MPPT Hybrid Inverter 230Vac 5KW Pure Sine Wave Inverter SCG1-5KW
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: SCG1-5KW
Price: 1 USD
Availability: InStock

BWT 5KW MPPT Hybrid Inverter 230Vac 5KW Pure Sine Wave Inverter SCG1-5KW

MOQ

1USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Inverter Model: SCG1-5KW

Input Voltage Waveform: Pure Sine Wave

Nominal Input Voltage: 230Vac

Frequency Range: 50/60Hz

AC Surge Power: 10000VA

Efficiency(Peak) PV To INV: 97%

Transfer Time: 10ms

Battery Voltage: 48Vdc

Highlight:

SCG1-5KW MPPT Hybrid Inverter

5KW MPPT Hybrid Inverter

230Vac 5KW MPPT Hybrid Inverter

Basic Infomation

Place of Origin: CHINA

Brand Name: BWitt

Certification: CE

Model Number: SCG1-5KW

Payment & Shipping Terms

Packaging Details: 27*32*10.5

Delivery Time: 7-15days

Payment Terms: T/T

Supply Ability: lakh

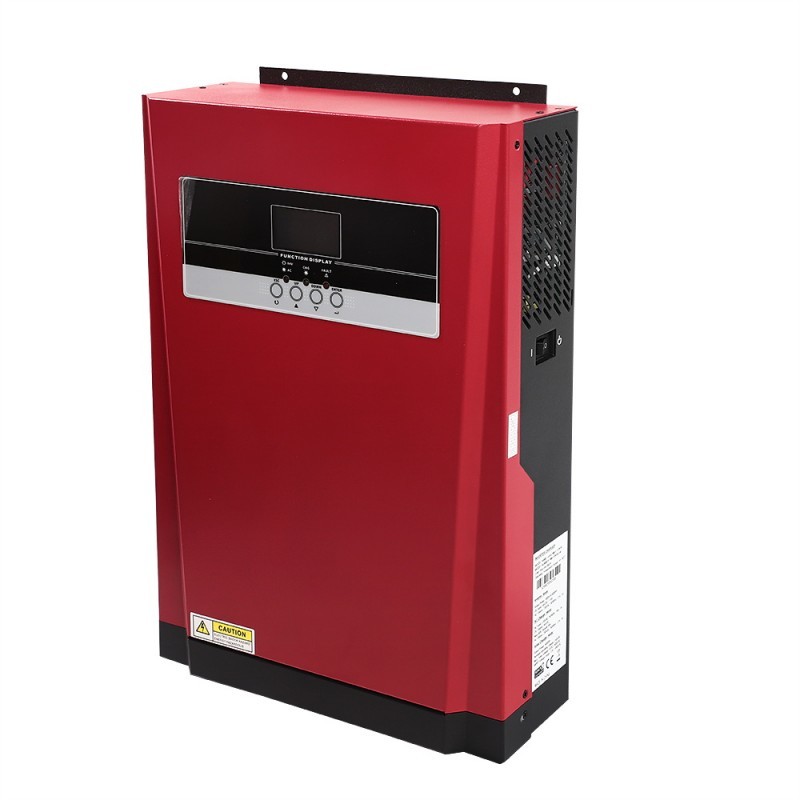

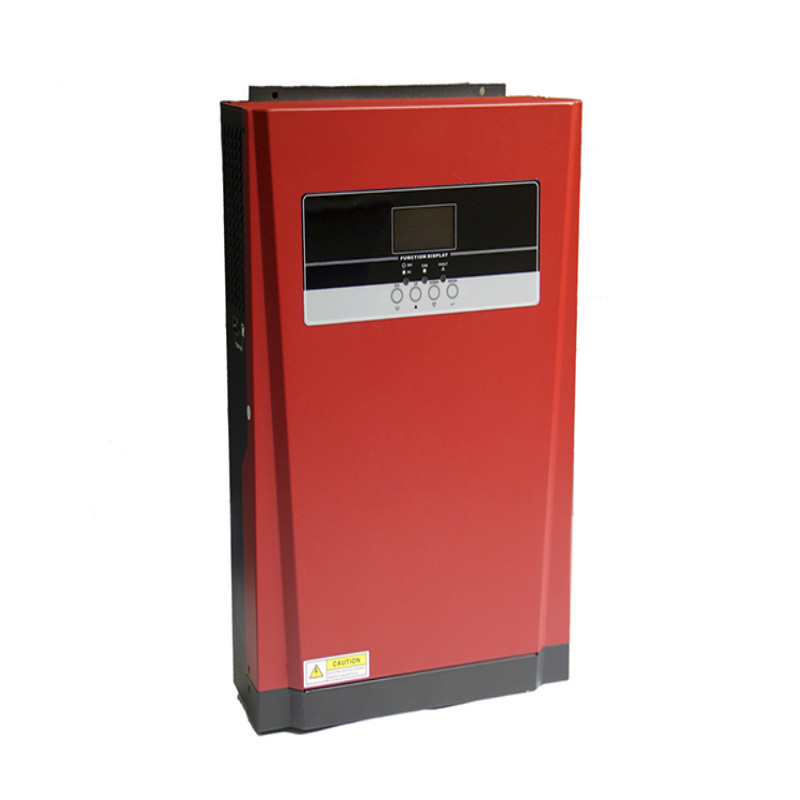

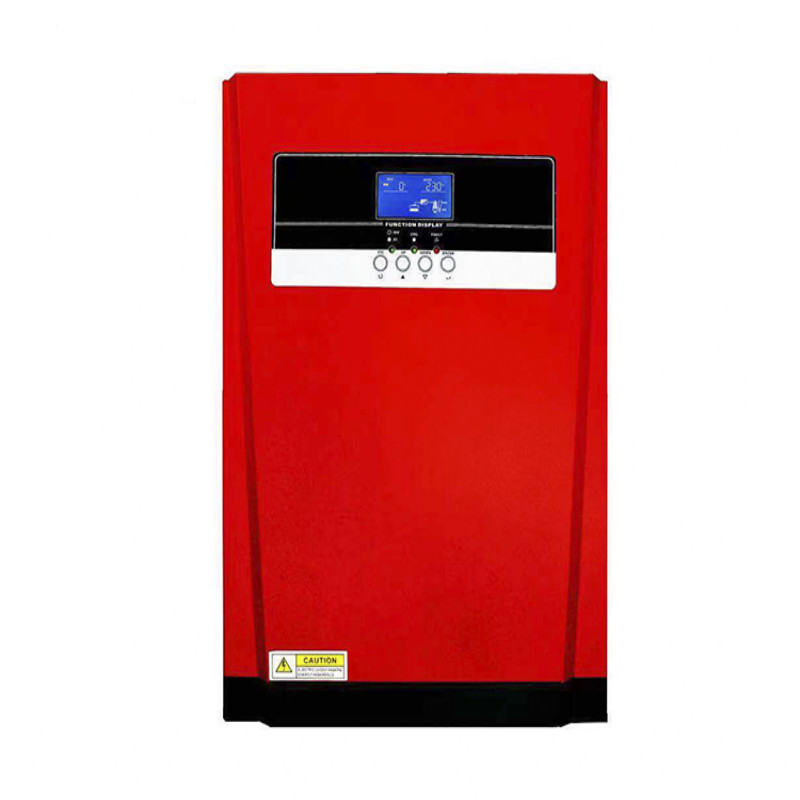

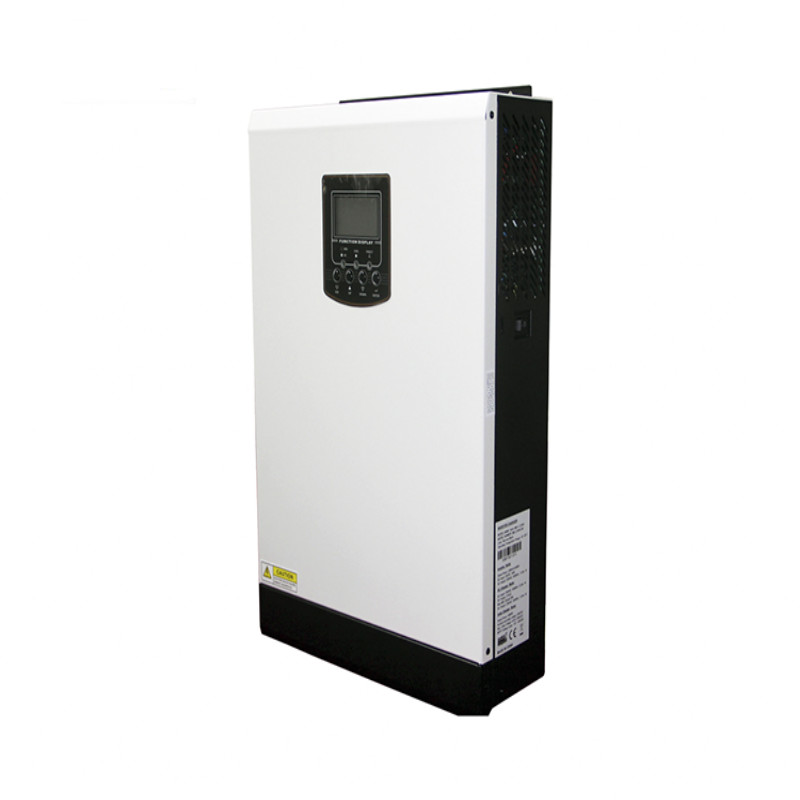

Gallery

BWT 5KW MPPT Hybrid Inverter 230Vac 5KW Pure Sine Wave Inverter SCG1-5KW

Product Description

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Feature

Pure sine wave inverter

Configurable input voltage range for home appliances and personal computers via LCD setting

Configurable battery charging current based on applications via LCD setting

Configurable AC/Solar Charger priority via LCD setting

Compatible to mains voltage or generator power

Auto restart while AC is recovering

Overload/ Over temperature/ short circuit protection

Smart battery charger design for optimized battery performance

Cold start function

Specification

Inverter Model	SCG1-5KW
Input Voltage Waveform	Pure sine wave
Nominal Input Voltage	230Vac
Frequency Range	50/60Hz
AC Surge Power	10000VA
Efficiency(Peak) PV to INV	97%
Efficiency(Peak) Battery to INV	94%
Transfer Time	10ms
Battery Voltage	48Vdc
Floating Charge Voltage	54Vdc
Overcharge Protection	63Vdc
Max charge Current	60A
Maximum PV Array Power	6000W
MPPT Range @Operating Voltage	120~450Vdc
Maximum PV Array Open Circuit Voltage	500Vdc
Maximum PV efficiency	98%
Dimension	100300440
