CE+T Inverter Module Bravo 10 48Vdc 120Vac 1000VA Power Shelf Part No T611330201 T614330000

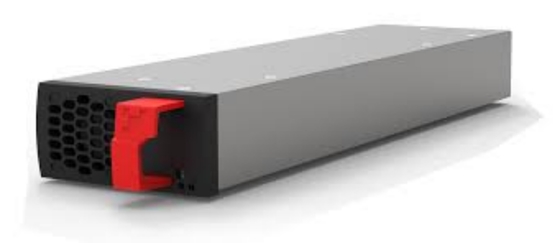

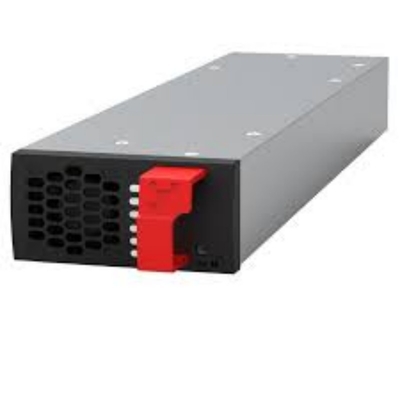

Bravo 10 is a small modular inverter offering many opportunities to design a solution that perfectly fits your needs. The ECI technology offers both AC and DC inputs to provide a perfect AC power while reducing the number of power conversion (the module operates under normal condition with the AC input delivering a 94% efficiency)! In conjunction with the DC input, it provides an excellent AC backup solution.

From 1 to 32 modules, with several options available (manual external by-pass and AC distribution), the Bravo 10 modular inverter is also hot-swappable meaning a very easy and cheap maintenance. The modules are delivered with our new monitoring solution.

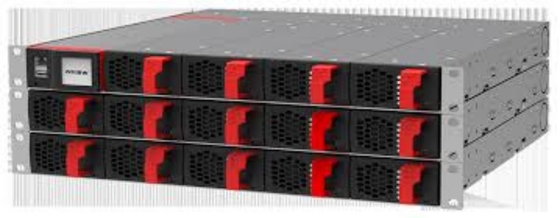

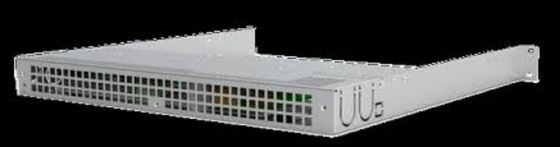

Bravo 10 can be used with the Inview S (DIN or panel mounting) and Inview S Slot monitoring. One shelf can accommodate 5 modules (5 kVA) or 4 modules (4 kVA) with Inview S Slot monitoring included. For third party application the Inview GW Rack or DIN mount could be used.

Applications

An ideal solution for securing small but critical AC loads, from 1 kVA to 32 kVA, such as telecom small cells (4G and 5G), access control, traffic lights, security, etc. The module can be integrated into shelves for single-phase (120 Vac) or split-phase (120/240 Vac), and three-phase (3x208 Vac) configuration can be achieved within two shelves.

Specification
