CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202

5
MOQ
1USD
Price
CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202
Features Gallery Product Description Request A Quote
Features
Specifications
Part Number: T311730202
Efficiency: 93% / 89%
Dielectric Strength DC/AC: 4300 Vdc
AC Output Power (VA) / (W): 750 VA / 525 W
DC INPUT Voltage: 48 V
Nominal Current: 12.5 A
Input Voltage (AC): 220/230/240 V 1P Or 3P (Min 3 Shelves For 3P)
Brownout: 438 W
Output Voltage (AC*): 220/230/240 V
Frequency: 50 - 60 Hz / 0.03 %
Highlight:

Modular Inverter 0.75kVA

,

CE+T TSI NOVA Modular Inverter

,

48Vdc Modular Inverter
Basic Infomation
Place of Origin: CHINA
Brand Name: CE+T
Certification: CE
Model Number: TSI NOVA 230 VAC 48Vdc
Payment & Shipping Terms
Packaging Details: 27*32*10.5
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: lakh
Product Description

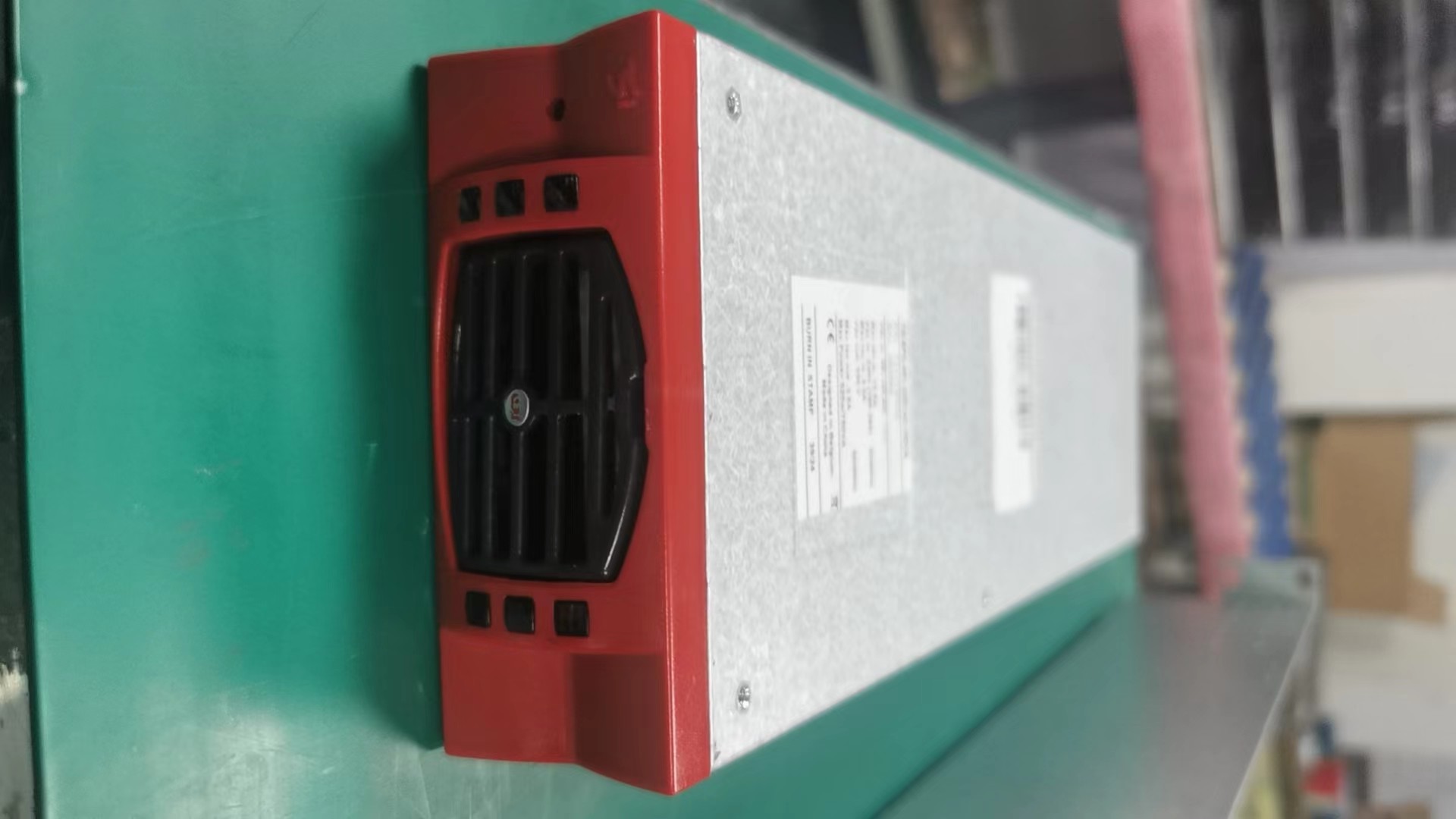

CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202 0

NOVA is a compact and scalable modular inverter providing a pure sine wave AC supply. In conjunction with a DC Power system, it provides an excellent AC backup solution. It uses the latest inverter technology, providing superior energy efficiency in a compact size.

The “Twin Sine Innovation” (TSI) technology eliminates all single points of failure with full scalability; up to 32 modules in parallel and high efficiency of up to 93 % reducing operating costs.

Applications

All business critical applications and all types of AC loads. The design is modular and scalable with hot- swappable inverter modules which ensures low Mean Time to Repair (MTTR), reduction in service costs and meets the changing needs for future expansion.



Specification



  48 / 230
GENERAL
EMC (immunity) EN 61000-4-2 / EN 61000-4-3 / EN 61000-4-4 / EN 61000-4-5 / EN 61000-4-6 / EN 61000-4-8
EMC (emission) (class) EN 55022 (A)
Safety EN62040-1
Cooling / Isolation Forced / Doubled
MTBF 200 000 hrs (MIL-217IF)
Efficiency (Typical): Enhanced power conversion / on line 93% / 89%
Dielectric strength DC/AC 4300 Vdc
True Redundant Systems – compliant

3 disconnection levels on AC out and DC in power ports

4 disconnection levels on AC in port
RoHS Compliant
Vibration GR63 office vibration 0 to 100 hz-0.1 g / transport vibration 5-100 Hz 0.5 g 100 to 500 hz-1.5 g / Drop test
Operating conditions

Designed for installation in an IP20 or IP21 environment.

When installed in a dusty or corrosive environment, appropriate measures (air filtering, …) must betaken.
Altitude above sea without de-rating < 1500 m / derating > 1500 m – 0.8 % per 100 m
Ambient / storage temperature / relative humidity -20 to 50 ° C / -40 to 70 ° C / 95 %, non-condensing
Material (casing) Coated steel-ALU ZINC
AC output power
Nominal Output power (VA) / (W) 750 VA / 525 W
Short time overload capacity 135 % (15 seconds) 105 % permanent within T° range
Admissible load power factor Full power rating from 0 inductive to 0 capacitive
Internal temperature management and switch off /
DC INPUT SPECIFICATIONS
Nominal voltage (DC) 48 V
Voltage range (DC) 40 - 60 V
Nominal current (at 48 Vdc and 525 W output) 12.5 A
Maximum input current (for 15 second) / voltage ripple 22 A / < 2 mV
Input voltage boundaries /
AC INPUT SPECIFICATIONS
Nominal voltage (AC) 220/230/240 V 1P or 3P (Min 3 shelves for 3P)
Voltage range (AC) 150 - 265 V
Brownout 150 to 185 V
438 W @ 150 Vac
Power factor > 99%
Frequency range (selectable) / synchronization range 50 – 60 Hz / range 47 – 53 Hz / 57 – 63 Hz
AC OUTPUT SPECIFICATIONS
Nominal voltage (AC*) 220/230/240 V
Frequency / frequency accuracy 50 - 60 Hz / 0.03 %
Total harmonic distortion (resistive load) < 3 %
Load impact recovery time 0.4 ms
Turn on delay 20 s to 40 s depending on the number of modules installed
Nominal current 3.25 A
Crest factor at nominal power 2.5 : 1
With short circuit management and protection
Short circuit clear up capacity 9 x In for 20 msec - Available while Mains is available at AC input port With magnitude control and management
Short circuit current after clear up capacity 1.89 In
IN TRANSFER PERFORMANCE
Max. voltage interruption / total transient voltage duration (max) 0 s / 0 s
SIGNALING & SUPERVISION
Display Synoptic LED
Alarms output / supervision Dry contacts on shelf / Use optional devices
Remote on / off On rear terminal of the shelf via T2S ETH

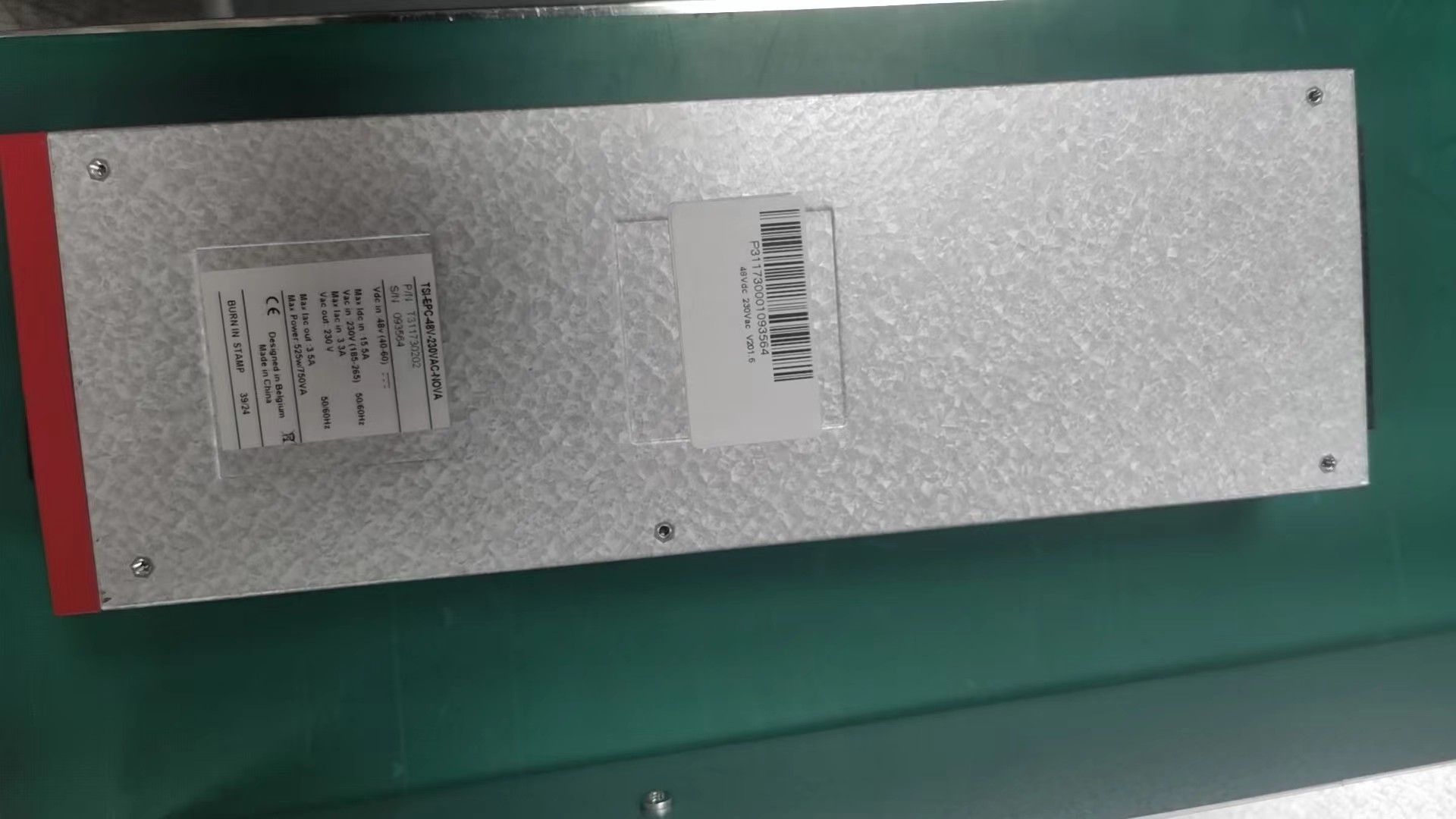

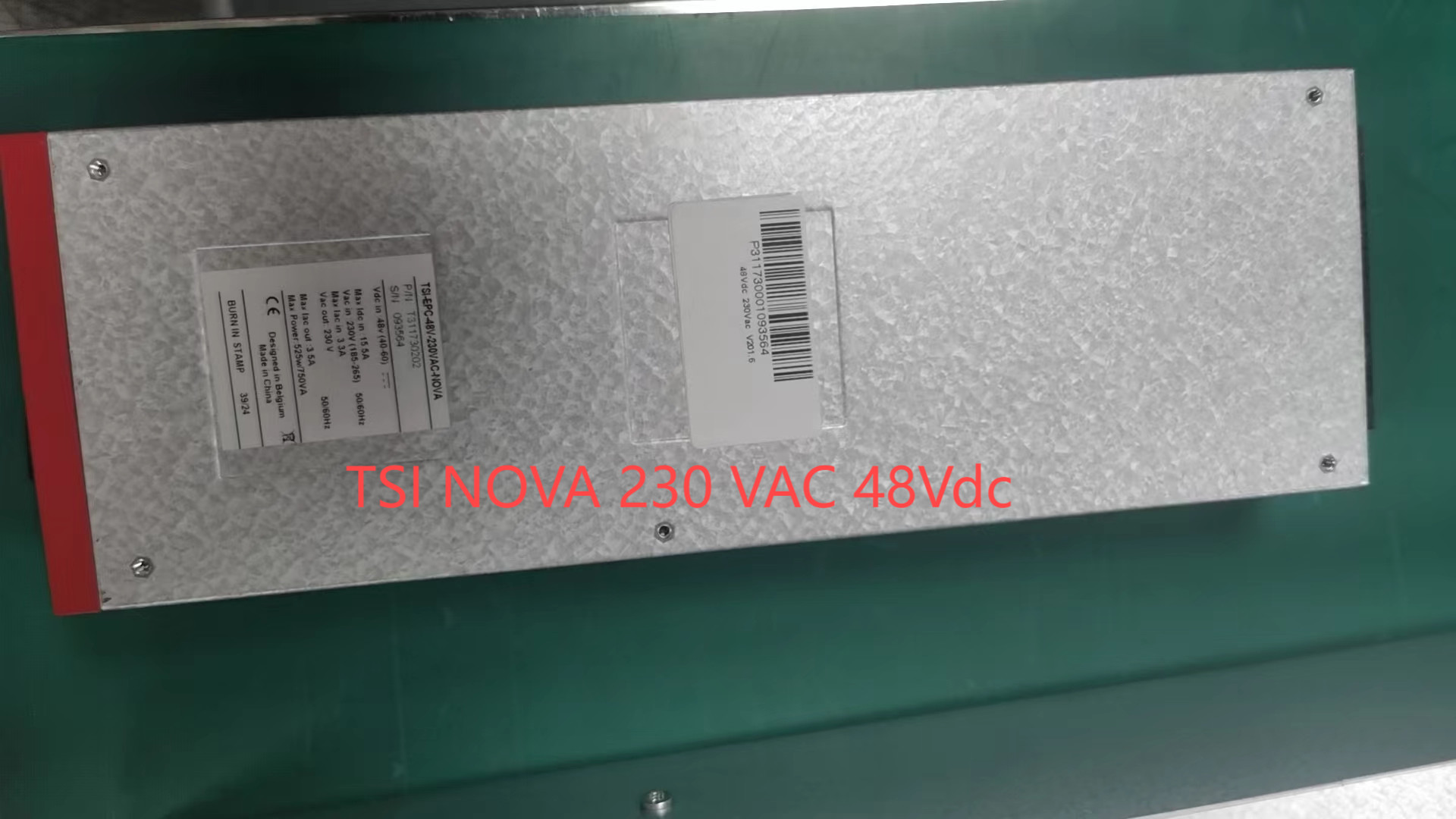

CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202 1

CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202 2CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202 3CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202 4CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202 5

CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202 6

CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202 7CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202 8

CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202 9CE+T TSI NOVA 230 VAC 48Vdc Modular Inverter 0.75kVA PN T311730202 10​
