Home /Products/DC AC Inverters/Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000

Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000

10 Pcs
MOQ
Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000
Features Gallery Product Description Request A Quote
Features
Specifications
MODEL: SP-2000-112, SP-2000-124, SP-2000-148, SP-2000-212, SP-2000-224, SP-2000-248
AC Output Voltage: 100/110/115/120 VAC; 200/220/230/240 VAC
Rated Power: 2000W(VA)
Frequency: 50/60 Hz ± 0.5% (Dip Switch Selectable)
DC Input Voltage: 12V; 24V; 48V
Efficiency: 92%; 93%; 94%; 94%; 94%; 95%
Operating Temperature: -20~40℃
Storage Temperature: -30 ℃~70 ℃
Dimension (WxHxD): 248x83x421 Mm
Weight (Net): 5.24kg
Highlight:

SP series Power Inverter

,

2000W Power Inverter

,

Pure Sine Wave Power Inverter
Basic Infomation
Place of Origin: China
Brand Name: cotek
Model Number: SP-2000
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 15-30 days
Payment Terms: T/T
Product Description

Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 0

SP-2000 Features



Pure sine wave output

Power ON / OFF remote control (Green Terminal)

Input & output fully isolation

Temperature & load controlled cooling fan

User friendly interface

Output frequency 50/60 Hz selectable by DIP switch

Output voltage DIP switch selectable

Power saving mode by variable resister

3-color LED status indicators

Input protection:Reverse Polarity (Fuse) / Under Voltage / Over Voltage

Output protection:Short Circuit / Overload / Over Temperature

E13 / UL / CE / FCC approved

Accessory:

Remote controller CR-8

Remote controller CR-16A

By-pass switch TR-40



Specification

MODEL SP-2000-112, SP-2000-124, SP-2000-148, SP-2000-212, SP-2000-224, SP-2000-248
Main Features ◎ New generation pure sine wave inverter ◎ Higher efficiency, high power density ◎ Selectable output voltage and frequency ◎ Robust aluminum case
AC Output Voltage 100/110/115/120 VAC; 200/220/230/240 VAC
Rated Power 2000W (VA)
Surge Power < 3500W (VA)
Output Waveform Pure Sine Wave (100V series:THD<5%@Normal Load / 200V series:THD<3%@Normal Load)
Frequency 50/60 Hz ± 0.5% (Dip switch selectable)
DC Output Voltage ─
DC Output Voltage Range ─
DC Input Voltage 12V; 24V; 48V
DC Input Voltage Range 10.5~16.5VDC; 21~33VDC; 42~66VDC
Efficiency 92%; 93%; 94%; 94%; 94%; 95%
Operating Temperature -20~40℃, Power De-rating from 40°C~60°C
Storage Temperature -30 ℃~70 ℃
Safety CE / FCC / UL (only for 112/124 GFCI receptacles) / E13
Dimension (WxHxD) 248x83x443 mm
Weight (Net) 5.24kg
Socket Type GFCI / NEMA 5-20R / GE /

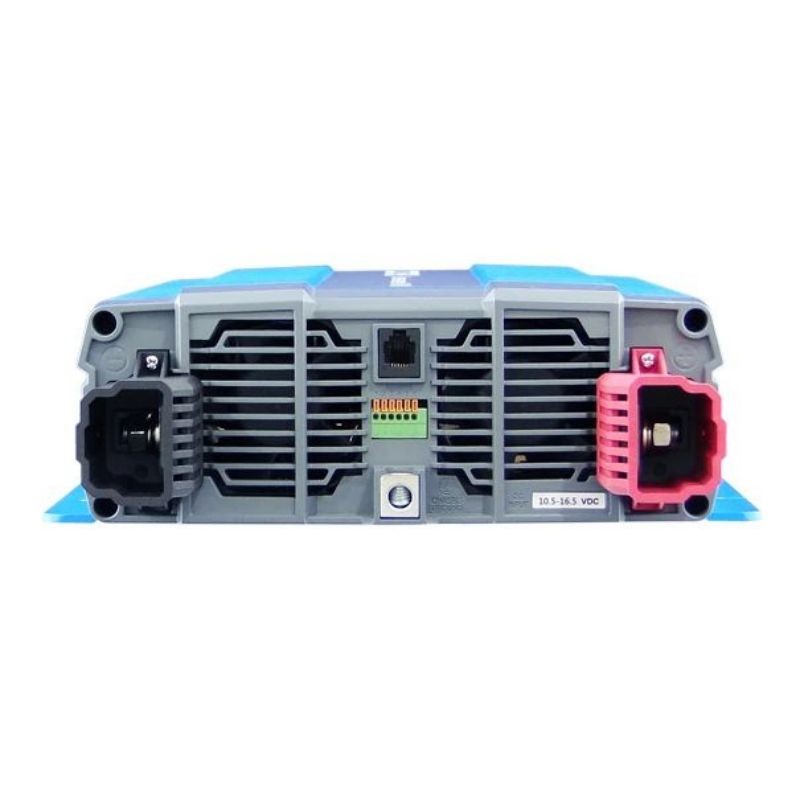

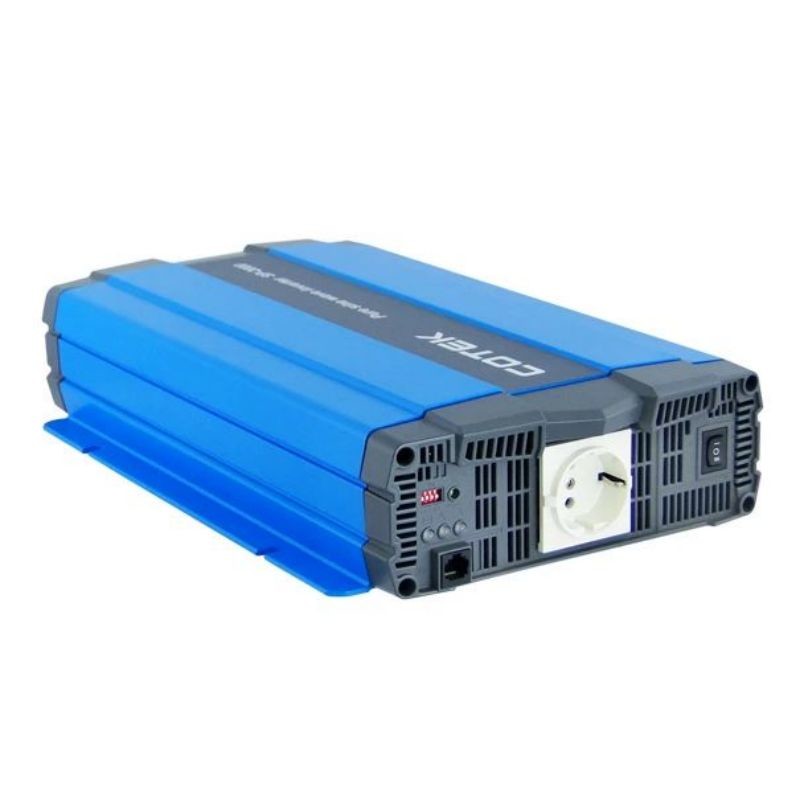

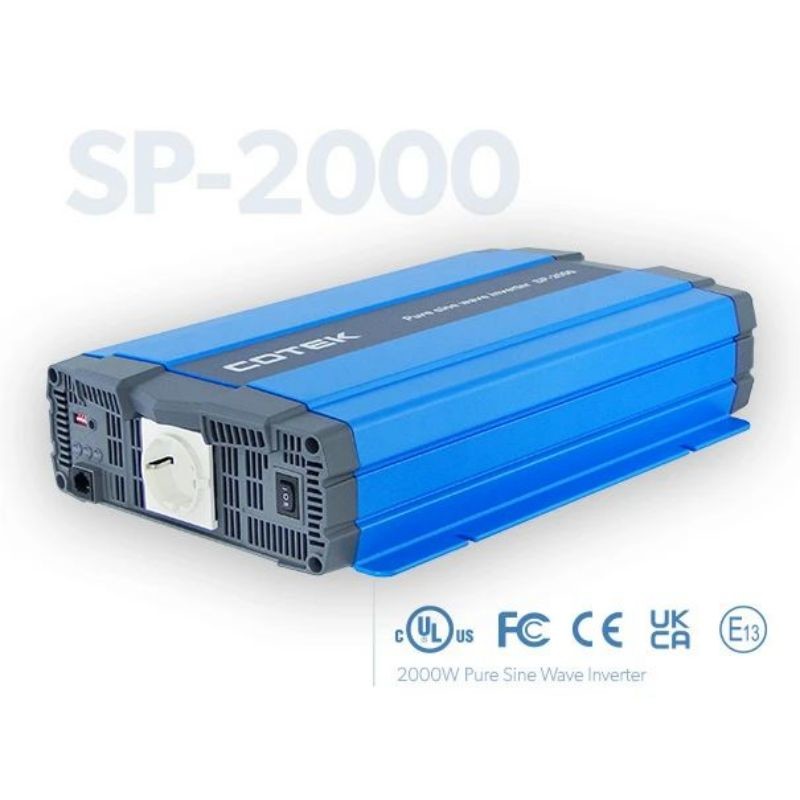

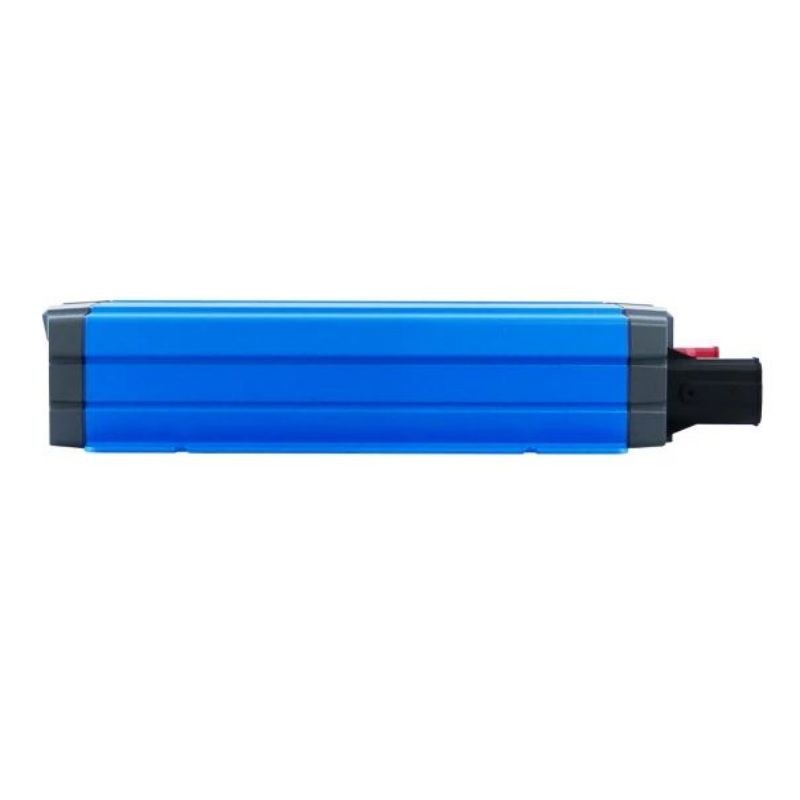

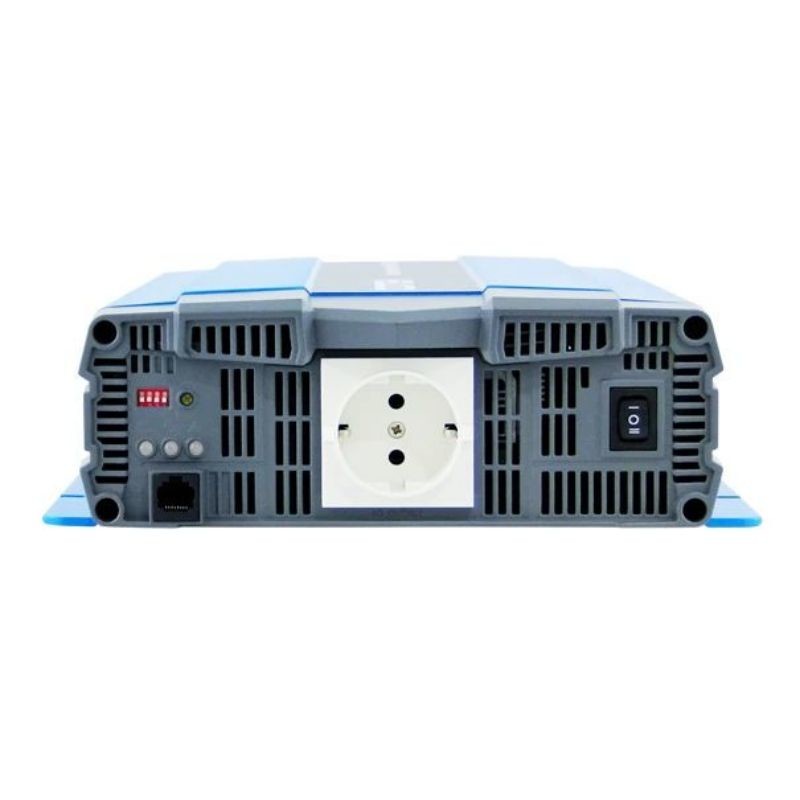

Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 1

Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 2Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 3Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 4Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 5Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 6Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 7





Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 8

Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 9Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 10

Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 11Cotek 2000W Power Inverter Pure Sine Wave Inverter SP Series SP-2000 12​
