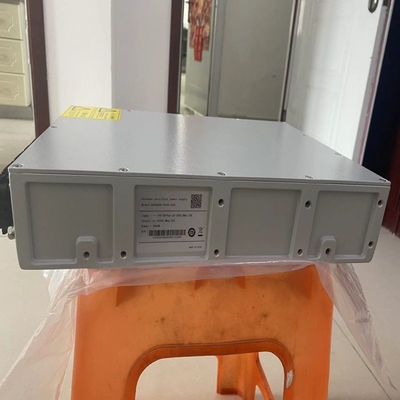

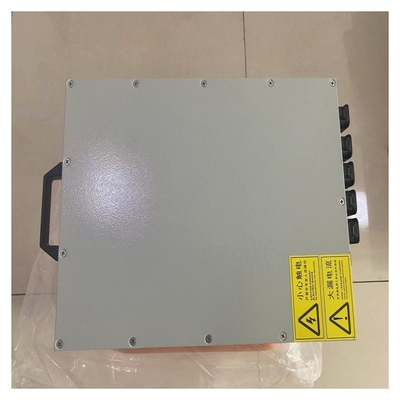

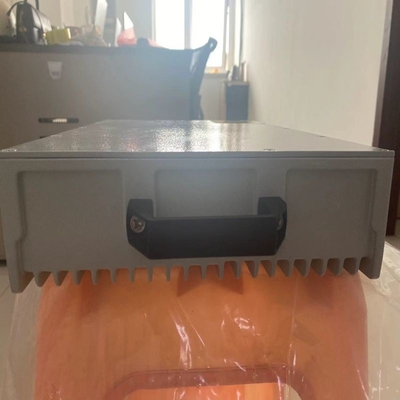

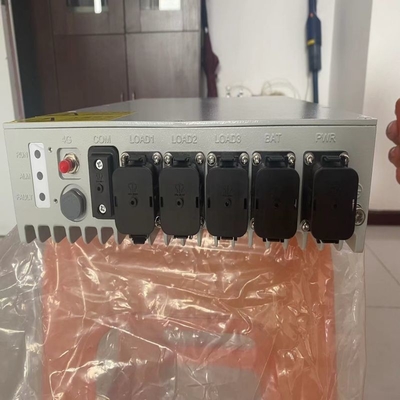

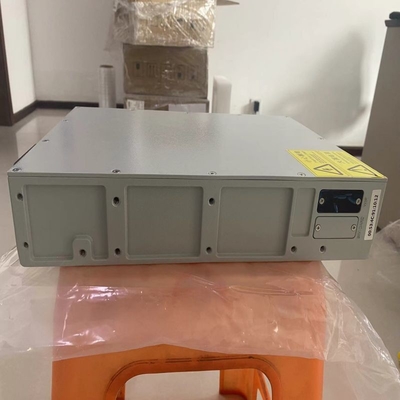

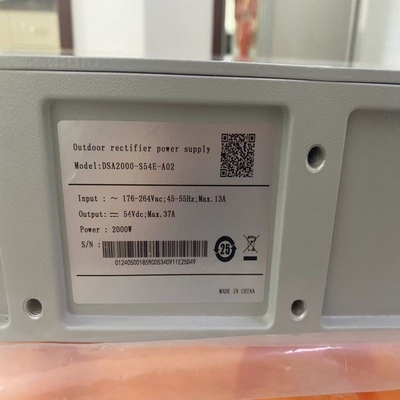

ZTT Waterproof Outdoor Rectifier Power Supply DC Output 54Vdc 2000w DSA2000-S54E-A02

This power supply is a DC output waterproof outdoor power supply product designed by our company for outdoor waterproofing. It is flexible in installation and can meet application scenarios such as wall-mounted poles and angle steel towers. It supports flag-mounted, flat-mounted, floor-standing and other installation methods. The product input voltage range is 176~264VAC. (AC), output voltage: 54Vdc.

The main features of this product are:

1. The product has flexible expansion capabilities to meet the needs of the total output load.

2. Wide input voltage range, high output efficiency, high voltage regulation accuracy, and low ripple noise.

3. The equipment is small in size, light in weight, and has strong heat dissipation and anti-interference capabilities, making it easy to install in various scenarios; the shell protection level reaches IP65, which meets the installation requirements outdoors and under harsh conditions. 4. This product has very complete protection functions (including: input under-voltage protection, over-temperature protection, output over-voltage protection, current limiting protection, short-circuit protection function, built-in fuse, etc.) and its protection capabilities meet the relevant standards of the communication industry.

Specification
