Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001

10 Pcs
MOQ
Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001
Features Gallery Product Description Chat Now
Features
Specifications
MODEL: 4 KW / 2 KW
Product Family: CTOR0201.00X
Voltage Range AC: 185-275 / 95-140 V
Voltage Range DC: 40-58 V
Frequency: 47-53 / 57-63 Hz
Adjustable Range AC: 200-240 / 100-127 V
Adjustable Range DC: 43-58 V
2 Pole AC Distribution: 3*10 A
Highlight:

3 kVA Rectiverter Integration

,

Standalone System Rectiverter Integration

,

1ph Rectiverter Integration
Basic Infomation
Place of Origin: China
Brand Name: Eltek
Model Number: Rectiverter Integration Standalone System
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 15-30 days
Payment Terms: T/T
Product Description

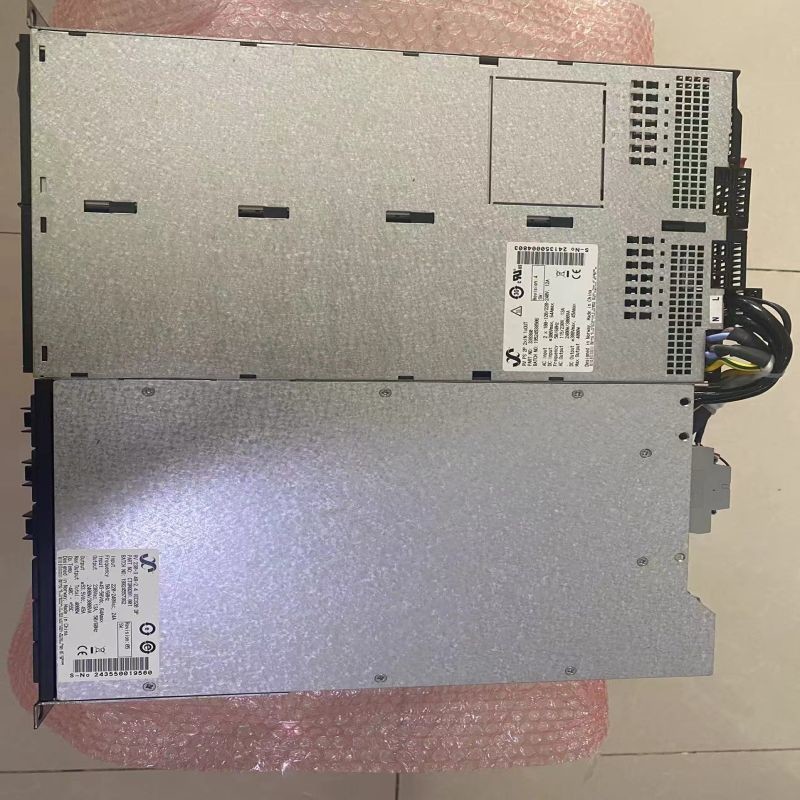

Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 0

The Rectiverter integration/standalone system can be used in applications where a 230/115 VAC backup is needed in parallel with the 48 VDC backup.

The system can be integrated into an Eltek DC system and connected to the same controller as the 48 VDC system

It can also be used as a standalone system connected to any available 48 VDC source.

The total output power for both AC and DC output is limited to max 4 kW.

AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 3 kVA.





APPLICATIONS

TELECOM-MOBILE/WIRELESS

LTE/4G/WiMAX

Distributed antenna system

Broadband

Radio base stations/cell sites

RAILWAY & METRO INFRASTRUCTURE

Control & protection

Signaling

GSM-R

Safety Systems

POWER UTILITIES

Control & protection

SCADA system



Specification

model 4 KW / 2 KW
Product family CTOR0201.00X
INPUT DATA
Voltage range AC 185-275 / 95-140 V
Voltage range DC 40-58 V
Maximum current AC 14-24 A
Frequency 47-53 / 57-63 Hz
Power factor > 0.99
OUTPUT DATA
Adjustable range AC 200-240 / 100-127 V
Adjustable range DC 43-58 V
Max output power AC 3,0 / 1,5 kVA
Max output power DC 2,4 / 1,2 kW
Admissible load power factor 0 Ind. To 0 Cap.
Frequency 50Hz, 60 Hz
OTHER SPECIFICATIONS
2 pole AC distribution 3*10 A
3*IEC sockets (IEC320-C13) front connection

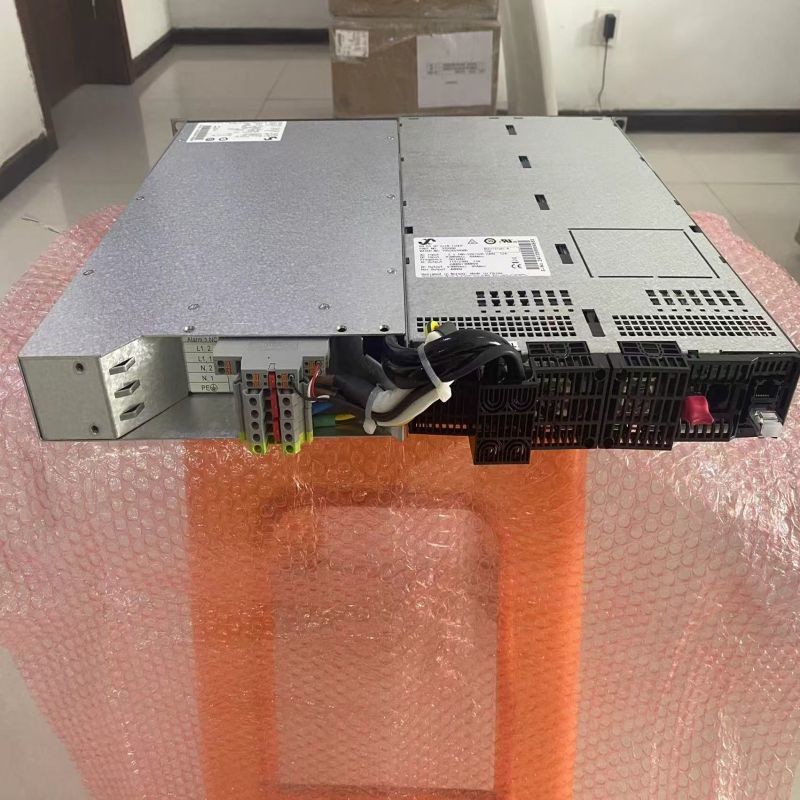

Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 1

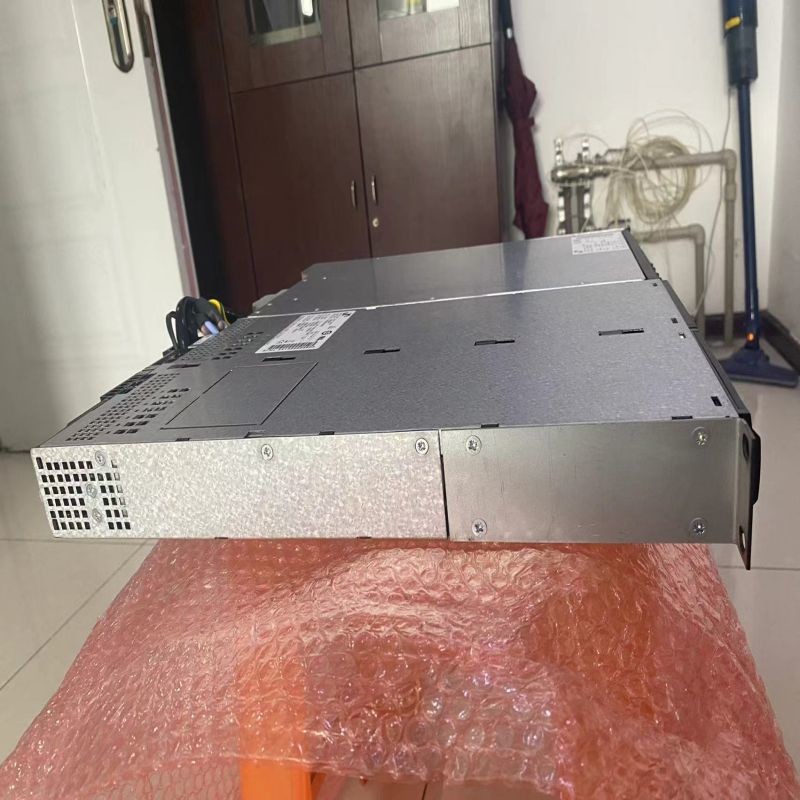

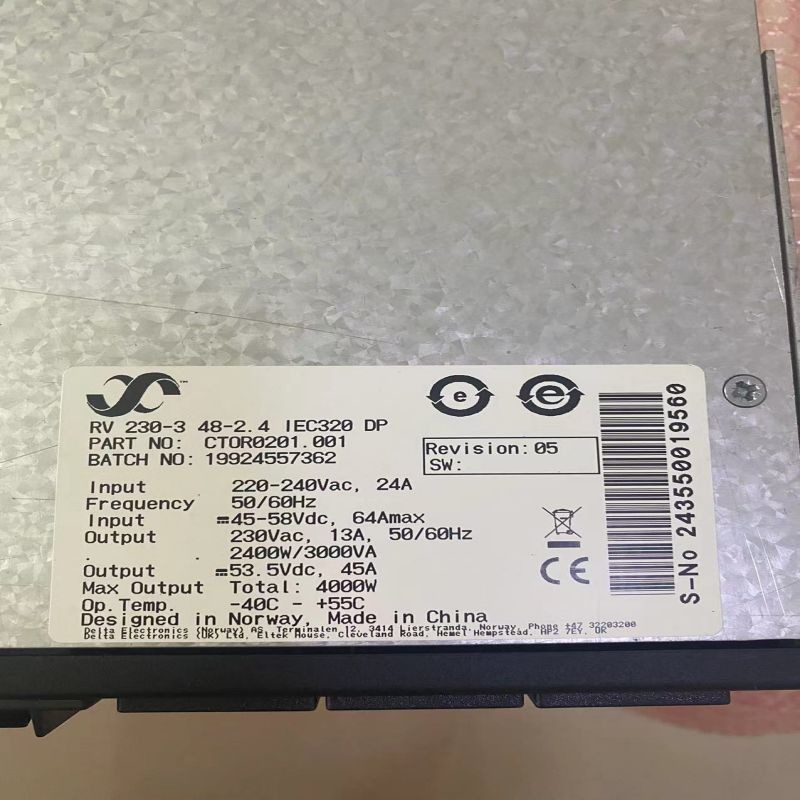

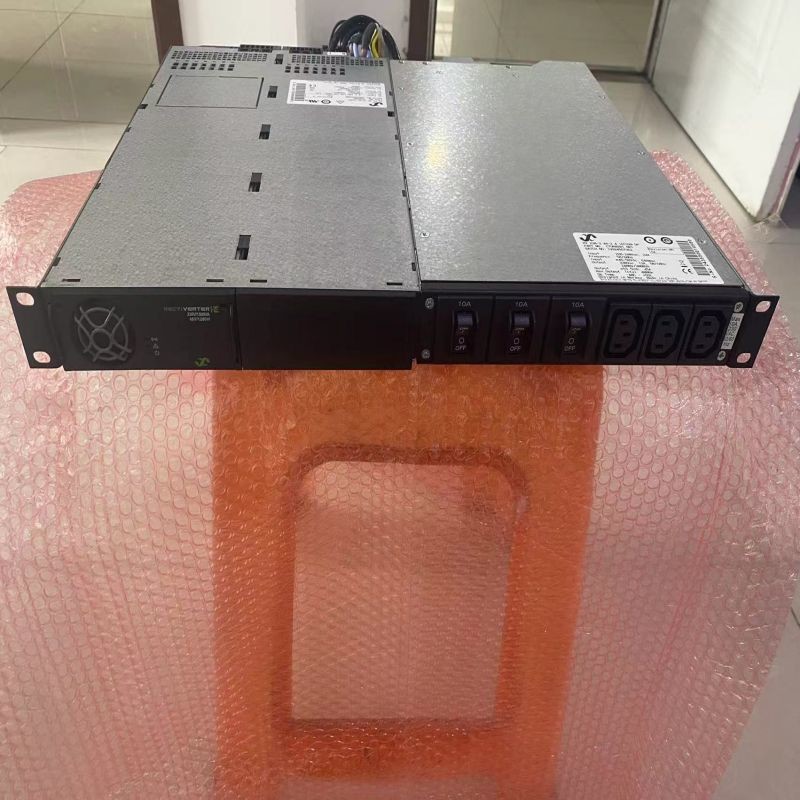

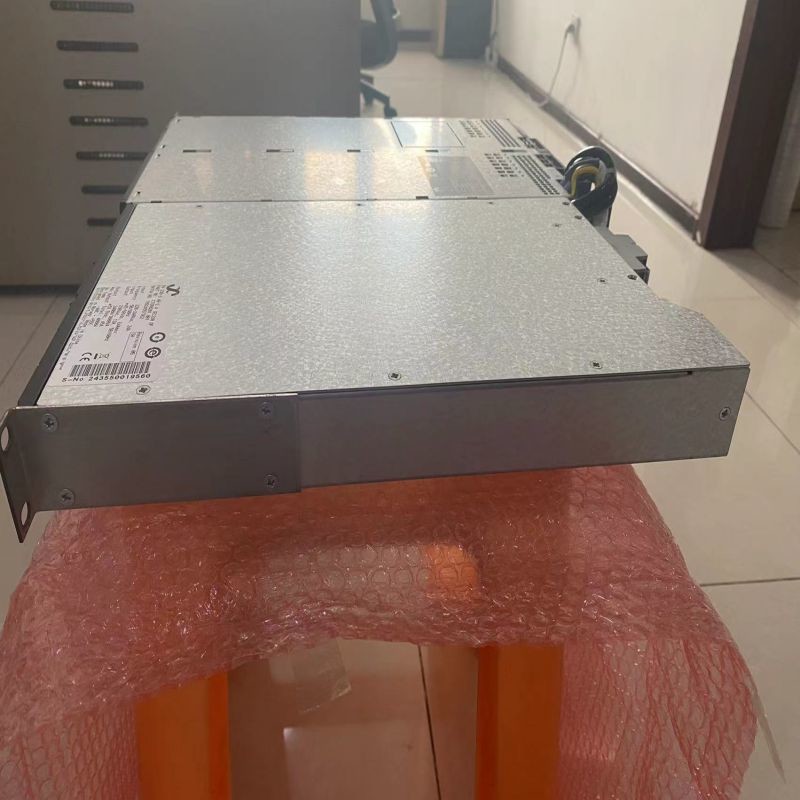

Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 2Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 3Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 4Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 5Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 6Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 7

Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 8



Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 9Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 10





Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 11Eltek Rectiverter Integration Standalone System 48 Vdc 3 KVA 1ph CTOR0201.001 12
