Name: CE+T TSI Bravo125/120 With Extra AC Input 125Vdc 120 Vac 2.5KVA 2.5KW P/N T321350201
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: TSI Bravo125/120
Price: 0.09 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Brand: CE+T

Product Name: TSI Bravo125/120

Part Number: T321350201

Efficiency (Typical): 95% / 91%

Dielectric Strength DC/AC: 4300 Vdc

Nominal Output Power (VA) / (W): 2500 / 2000

Voltage (DC): 125 V

Current: 37 A

Highlight:

125Vdc TSI Bravo125/120

2.5KVA TSI Bravo125/120

P/N T321350201

Basic Infomation

Place of Origin: China

Brand Name: CE+T

Certification: CE

Model Number: TSI Bravo125/120

Payment & Shipping Terms

Packaging Details: Box Ctn

Delivery Time: 15-30days

Payment Terms: T/T

Supply Ability: 10000 Box

Gallery

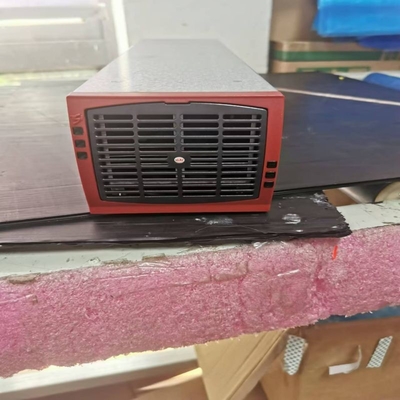

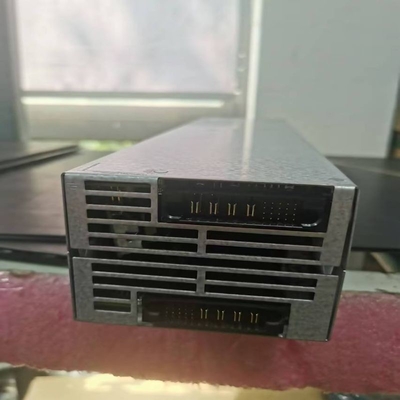

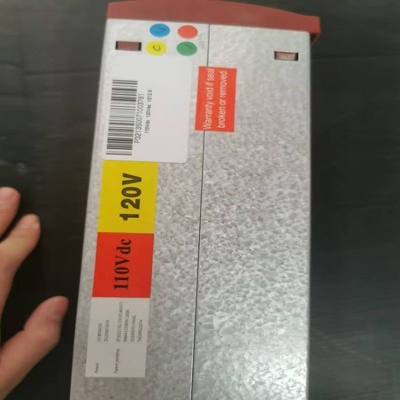

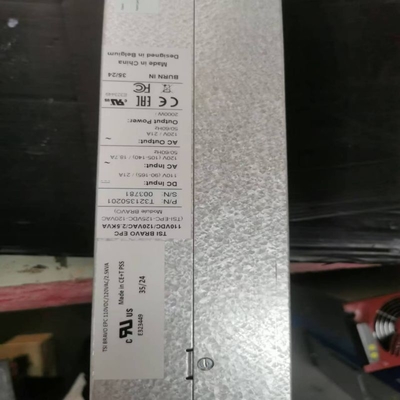

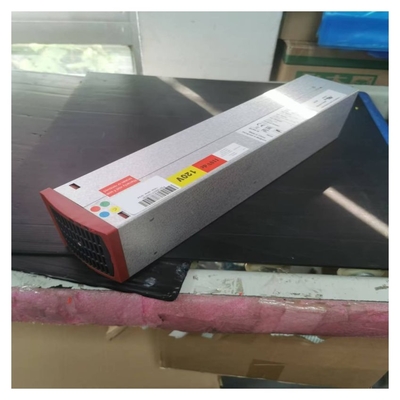

CE+T TSI Bravo125/120 With Extra AC Input 125Vdc 120 Vac 2.5KVA 2.5KW P/N T321350201

Product Description

CE+T TSI Bravo125/120 With Extra AC Input 125Vdc 120 Vac 2.5KVA 2.5KW P/N T321350201 0

TSI Bravo – 125/120 is a compact modular inverter that converts 125 Vdc power source into 120 Vac and provides a pure sine wave. By using several modules, we can offer solutions for two-phase (2x120Vac + N) or three-phase (3x208Vac + N) infrastructures.

The extra AC input ensures a high overall efficiency (up to 95%) which results in a reduction of energy loss and heat dissipation.

This module has a modularity from 2.5 kVA to up to 80 kVA in order to be able to evolve with your needs. The hot swap feature makes maintenance easier and reduces the risk of errors.

The low ripple voltage avoids any disturbances on DC loads and batteries.

Part number	T321350201
EMC (immunity)	IEC 1000 - 4
EMC (emission) (class)	FCC part 15
Safety	cUL 1778 Recognized
Cooling / Isolation	Forced / Doubled
MTBF	240 000 hrs (MIL-217-F)
Efficiency (Typical): Enhanced power conversion / on line	95% / 91%
Dielectric strength DC/AC	4300 Vdc
True Redundant Systems – compliant	3 disconnection levels on AC out and DC in power ports 4 disconnection levels on AC in port
RoHS	Compliant
Vibration	GR63 office vibration 0 to 100 hz-0.1 g / transport vibration 5-100 Hz 0.5 g 100 to 500 hz-1.5 g / Drop test
Operating ambiance / Ingress Protection	Free from dust and corrosive materials / NEMA 1
Altitude above sea without de-rating	< 1500 m / derating > 1500 m – 0.8 % per 100 m
Ambient / storage temperature / relative humidity	-20 to 50 ° C / -40 to 70 ° C / 95 %, non-condensing
Material (casing)	Coated steel-ALU ZINC

Nominal Output power (VA) / (W)	2500 / 2000
Short time overload capacity	150 % (15 seconds) 110 % permanent within T° range
Admissible load power factor	Full power rating from 0 inductive to 0 capacitive
Internal temperature management and switch off	2 %/°C derating beyond 50° C with cutoff at 65° C

DC INPUT SPECIFICATIONS

Nominal voltage (DC)	125 V
Voltage range (DC)	90 - 160 V
Nominal current	25 A (at 90 Vdc and 2000 W output)
Maximum input current (for 15 second) / voltage ripple	37 A / < 200 mV rms
Input voltage boundaries	User selectable with T2S interface

AC INPUT SPECIFICATIONS

Nominal voltage (AC)	120 Vac (120/240 V or 120/208 V with combination of shelves)
Voltage range (AC)	100 - 138 Vac (without derating) (can be disabled)
Brownout	80 – 100 Vac use DC source contribution if need be (can be disabled)
Brownout	2000 VA/1600 W @ 100 VAC
Conformity range before transfer to DC	Adjustable
Power factor	> 99%
Frequency range (selectable) / synchronization range	50 – 60 Hz / range 47 – 53 Hz / 57 – 63 Hz

AC OUTPUT SPECIFICATIONS

*Nominal voltage (AC)**	120 V
Frequency / frequency accuracy	50 - 60 Hz / 0.03 %
Total harmonic distortion (resistive load)	< 1.5 %
Load impact recovery time	0.4 ms
Turn on delay	20 s to 40 s depending on the number of module installed
Nominal current. Protected against reverse current	21 A
Crest factor at nominal power	3 : 1
With short circuit management and protection	3 : 1
Short circuit clear up capacity	10 x In for 20 msec - Available while Mains is available at AC input port With magnitude control and management
Short circuit current after clear up capacity	2.1 In during 15 s and 1.5 In after 15 s

IN TRANSFER PERFORMANCE

Max. voltage interruption / total transient voltage duration (max)

0 s / 0 s

SIGNALING & SUPERVISION

Display	Synoptic LED
Alarms output / supervision	Dry contacts on shelf / Standard USB port and MODBUS on T2S, optional : Candis Display / Candis TCP-IP
Remote on / off	on rear terminal of the shelf via T2S

CE+T TSI Bravo125/120 With Extra AC Input 125Vdc 120 Vac 2.5KVA 2.5KW P/N T321350201 8

CE+T TSI Bravo125/120 With Extra AC Input 125Vdc 120 Vac 2.5KVA 2.5KW P/N T321350201 10
