Name: CE+T Modular Inverters Bravo ECI 48/230 2.4KW Power Core Inverters Part Nuaber T521730301
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: Bravo ECI 48/230 2.4KW
Price: 1 USD
Availability: InStock

CE+T Modular Inverters Bravo ECI 48/230 2.4KW Power Core Inverters Part Nuaber T521730301

MOQ

1USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Brand: CE+T

Nominal Voltage (AC): 230 V

Brownout: 1600 W

Part Number: T521730301

Nominal Output Power (VA) / (W): 3000 VA / 2400 W

Dielectric Strength DC/AC: 4300 Vdc

DC Voltage: Nominal / Range: 48 VDC / (40-60V)*

Voltage Range (AC): 150 - 265 V

Highlight:

CET Modular Inverters

2.4KW Power Core Inverters

Part Nuaber T521730301

Basic Infomation

Place of Origin: CHINA

Brand Name: CE+T

Certification: CE

Model Number: Bravo ECI 48/230 2.4KW

Payment & Shipping Terms

Packaging Details: 48*20*15

Delivery Time: 7-15days

Payment Terms: T/T

Supply Ability: In stock + within one week

Gallery

CE+T Modular Inverters Bravo ECI 48/230 2.4KW Power Core Inverters Part Nuaber T521730301

Product Description

The ECI technology eliminates all single points of failure with full scalability; up to 32 modules in parallel and high efficiency of up to 96% in AC to AC conversion, and above 93.5% in DC/AC conversion, hence reducing operating costs. We can build the systems up to 2.7 MVA.

BRAVO is a compact and scalable modular inverter providing a pure sine wave AC supply. In conjunction with a DC Power system, it provides an excellent AC backup solution. It uses the latest inverter technology, providing superior energy efficiency in a compact size.

Applications

All business critical applications and all types of AC loads. The design is modular and scalable with hot- swappable inverter modules which ensures low Mean Time to Repair (MTTR), reduction in service costs and meets the changing needs for future expansion

Specification

Part number	T521730301
Efficiency (Typical): Enhanced power conversion / on line	96% / >93.5%
Dielectric strength DC/AC	4300 Vdc
Operating T° / Relative Humidity (RH) non-condensing	Tested according ETS300-019-2-3 Class 3.1 -20°C to 65°C, power de-rating from 40°C to 65°C / Max RH 95% for 96 hours per year
Storage T° / Relative Humidity (RH) non-condensing	Tested according ETS300-019-2-1 Class 1.2 -40°C to 70°C / Max RH 95% for 96 hours per year
AC Output power (VA) / (W)	3000 VA / 2400 W
Short time overload capacity	125% (15 seconds)
DC Input voltage: Nominal / range	48 VDC / (40-60V)*
Nominal current	53.2 A
Input Nominal voltage (AC)	230 V
Brownout	1600 W
Power factor	> 99%
Ac output Nominal voltage (AC**)	220 VAC - 240 VAC
Frequency	50 or 60 Hz
Nominal current	13 A

Product Display

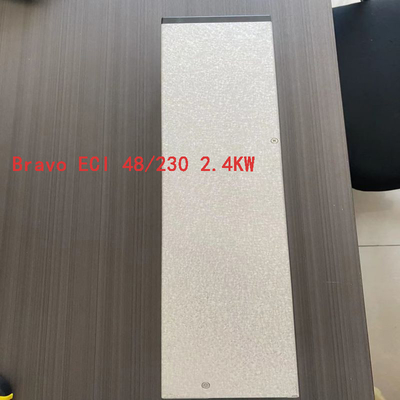

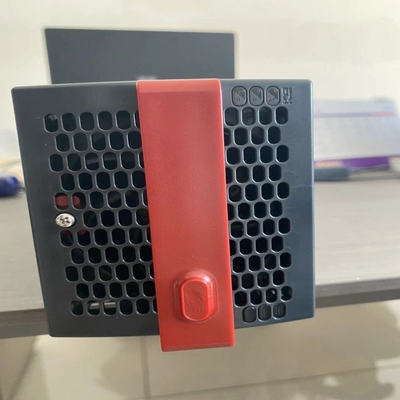

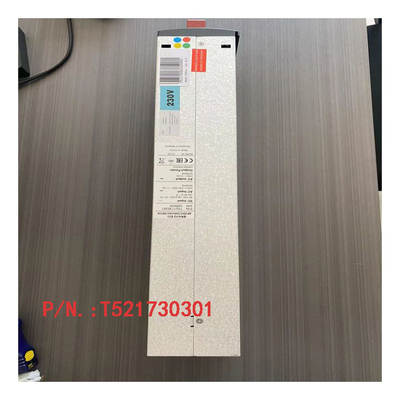

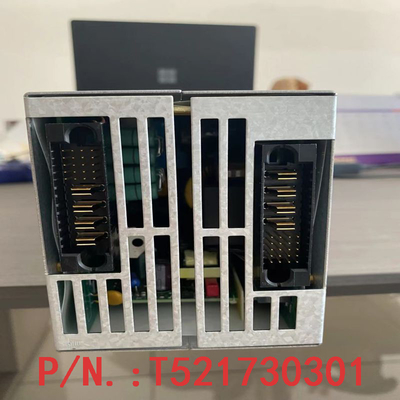

CE+T Modular Inverters Bravo ECI 48/230 2.4KW Power Core Inverters Part Nuaber T521730301 4
