CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core

5
MOQ
1USD
Price
CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core
Features Gallery Product Description Request A Quote
Features
Specifications
Brand: CE+T
Part Number: T521730301
Efficiency: 96% / >93.5%
Dielectric Strength DC/AC: 4300 Vdc
Operating T°: -20°C To 40°C
Storage T° /: -40°C To 70°C
Nominal Output Power (VA) / (W): 3000 VA / 2400 W
DC Voltage: Nominal / Range: 48 VDC / (40-60V)*
Highlight:

CET Modular Inverters

,

Bravo ECI 48/230 2.4KW Inverters

,

P/N T521730301
Basic Infomation
Place of Origin: CHINA
Brand Name: CE+T
Certification: CE
Model Number: Bravo ECI 48/230 2.4KW
Payment & Shipping Terms
Packaging Details: 48*20*15
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: lakh
Product Description
CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 0
BRAVO is a compact and scalable modular inverter that delivers a pure sine wave AC supply. When integrated with a DC power system, it serves as an excellent AC backup solution. Leveraging the latest inverter technology, it ensures superior energy efficiency within a compact footprint.

The ECI technology eliminates all single points of failure through full scalability, supporting up to 32 modules in parallel. It achieves high efficiency of up to 96% in AC-to-AC conversion and over 93.5% in DC/AC conversion, thereby reducing operational costs. Systems can be built up to 2.7 MVA in capacity.




Specification

Part number T521730301
Efficiency (Typical): Enhanced power conversion / on line 96% / >93.5%
Dielectric strength DC/AC 4300 Vdc
Operating T° / Relative Humidity (RH) non-condensing

Tested according ETS300-019-2-3 Class 3.1

-20°C to 65°C, power de-rating from 40°C to 65°C / Max RH 95% for 96 hours per year
Storage T° / Relative Humidity (RH) non-condensing

Tested according ETS300-019-2-1 Class 1.2

-40°C to 70°C / Max RH 95% for 96 hours per year

AC Output power (VA) / (W) 3000 VA / 2400 W
Short time overload capacity 125% (15 seconds)
DC Input voltage: Nominal / range 48 VDC / (40-60V)*
Nominal current 53.2 A
Input Nominal voltage (AC) 230 V
Brownout 1600 W
Power factor > 99%
Ac output Nominal voltage (AC**) 220 VAC - 240 VAC
Frequency 50 or 60 Hz
Nominal current 13 A

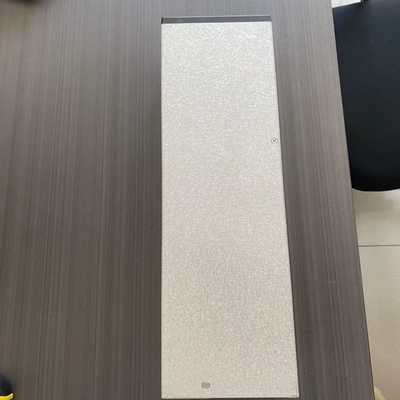

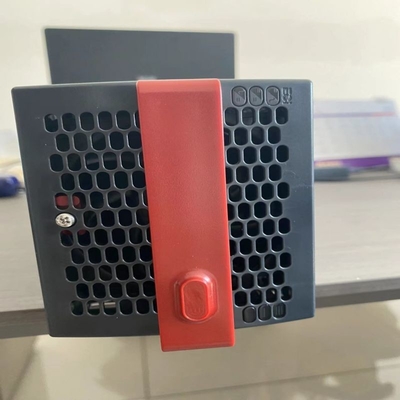

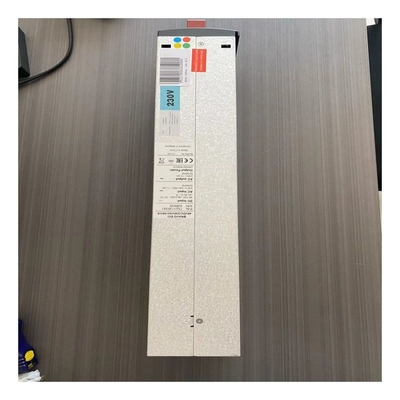

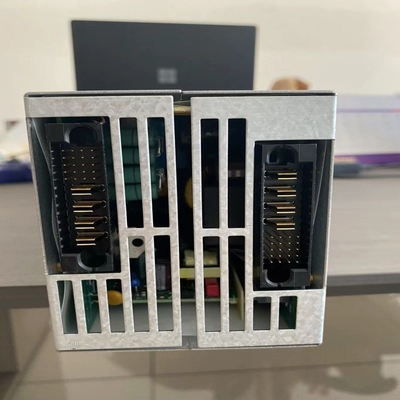

CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 1CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 2CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 3CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 4CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 5

CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 6

Video



CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 7

CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 8
CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 9CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 10

CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 11CE+T Modular Inverters Bravo ECI 48/230 2.4KW Inverters P/N T521730301 Power Core 12​
