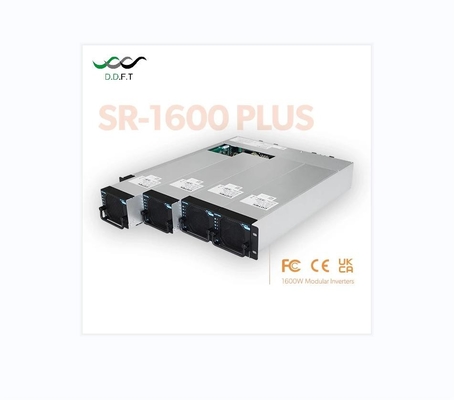

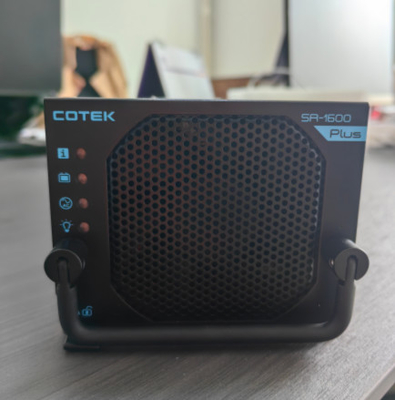

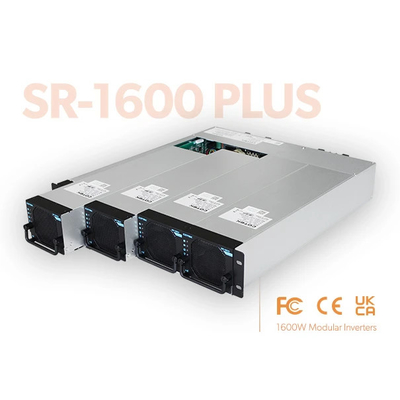

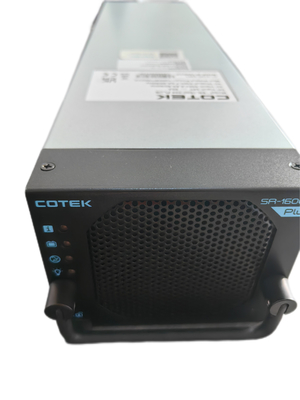

SR-1600 PLUS Features
Zero transfer time
Standard 19”2U rackmount
Selectable DC Mode / AC Mode (AC Sharing)
High eciency up to 95% at AC Mode
Dual input sources ( AC & DC )
Up to 32 modules can be connected in parallel
Hot swappable module design
Replacable fan module to make maintenance easily
Input Protection: Reverse Polarity / Under Voltage / Over Voltage
Output Protection: Short Circuit / Over Temperature
Unity power factor at AC input
Wide AC&DC input range 150Vac to 265Vac / 36Vdc to 68Vdc
Modbus Protocol Communication
Specification
| MODEL |
SR-1600-124 PLUS, SR-1600-148 PLUS, SR-1600-224 PLUS, SR-1600-248 PLUS |
| Main Features |
◎ New Intelligent Power Conversion Control~ (Software) ◎ Module design hot-swappable, redundancy rack mount inverter ◎ Parallelable module up to 32 pcs ◎ Selectable DC Mode / AC Mode / AC Sharing |
| AC Output Voltage |
100~120VAC; 200~240VAC |
| Rated Power |
1200W/1600VA; 1600W/1600VA; 1200W/1600VA; 1600W/1600VA |
| Surge Power |
─ |
| Output Waveform |
Pure Sine Wave |
| Frequency |
50/60 Hz |
| DC Output Voltage |
─ |
| DC Output Voltage Range |
─ |
| DC Input Voltage |
24V / 48V |
| DC Input Voltage Range |
18~34VDC ± 3%; 36~68VDC ± 3%; 18~34VDC ± 3%; 36~68VDC ± 3% |
| Efficiency |
AC Mode: 95% DC Mode: 89%; 90%; 90%; 91% |
| Operating Temperature |
-25°C ~ 40°C ; Power De-rating from 40°C to 60°C |
| Storage Temperature |
-40~70℃ |
| Safety |
CE / FCC |
| Dimension (WxHxD) |
Module: 105x83x410 mm; Shelf: 446x85x509 mm |
| Weight (Net) |
Module: 3.8kg; Shelf: 6.5kg |
| Socket Type |
Terninal |
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
