Home /Products/DC AC Inverters/Cotek Sub Rack For Use With SR-1600 PLUS Inverter SR-2U2 Rack Plus Power Shelf

Cotek Sub Rack For Use With SR-1600 PLUS Inverter SR-2U2 Rack Plus Power Shelf

100box
MOQ
Negotiable
Price
Cotek Sub Rack For Use With SR-1600 PLUS Inverter SR-2U2 Rack Plus Power Shelf
Features Gallery Product Description Request A Quote
Features
Specifications
Accessory Type: Rack Shelf
AC Output Voltage: 200~240VAC
Rated Power: 1200W/1600VA
Output Waveform: Pure Sine Wave
Frequency: 50/60 Hz
DC Input Voltage: 24V / 48V
Efficiency: AC Mode: 95% DC Mode: 89%; 90%; 90%; 91%
Operating Temperature: -25°C ~ 40°C
Storage Temperature: -40~70℃
Dimension: 446x85x509 Mm
Highlight:

cotek sub rack

,

SR-1600 PLUS Inverter cotek sub rack

,

SR-2U2 cotek sub rack
Basic Infomation
Place of Origin: China
Brand Name: Cotek
Certification: CE
Model Number: SR 1600-224 Plus
Payment & Shipping Terms
Packaging Details: 41*58*39
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: lakh
Product Description

SR-1600 PLUS Features

Modbus Protocol Interface

Engineering Bootloader Mode

Monitoring Event Log

Direct Alarm Message

EPO mode (Emergency Power Off)

Hot swappable module with LED indicator

Standard 19” 2U rack mount

Zero transfer time

DC Mode / AC Mode selectable (Dual input AC / DC)

High efficiency up to 95% at AC Mode

Up to 32 modules can be connected in parallel (up to 51.2KW)

CE / FCC approved



Specification

MODEL SR-1600-124 PLUS, SR-1600-148 PLUS, SR-1600-224 PLUS, SR-1600-248 PLUS
Main Features ◎ New Intelligent Power Conversion Control~ (Software) ◎ Module design hot-swappable, redundancy rack mount inverter ◎ Parallelable module up to 32 pcs ◎ Selectable DC Mode / AC Mode / AC Sharing
AC Output Voltage 100~120VAC; 200~240VAC
Rated Power 1200W/1600VA; 1600W/1600VA; 1200W/1600VA; 1600W/1600VA
Surge Power ─
Output Waveform Pure Sine Wave
Frequency 50/60 Hz
DC Output Voltage ─
DC Output Voltage Range ─
DC Input Voltage 24V / 48V
DC Input Voltage Range 18~34VDC ± 3%; 36~68VDC ± 3%; 18~34VDC ± 3%; 36~68VDC ± 3%
Efficiency AC Mode: 95% DC Mode: 89%; 90%; 90%; 91%
Operating Temperature -25°C ~ 40°C ; Power De-rating from 40°C to 60°C
Storage Temperature -40~70℃
Safety CE / FCC
Dimension (WxHxD) Module: 105x83x410 mm; Shelf: 446x85x509 mm
Weight (Net) Module: 3.8kg; Shelf: 6.5kg
Socket Type Terninal



product Display

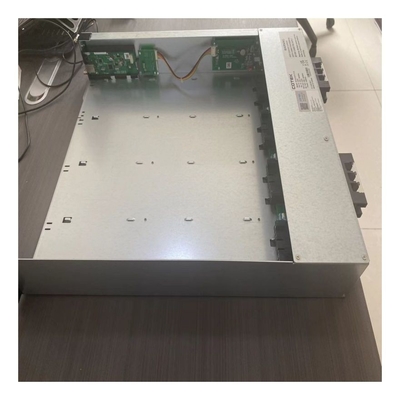

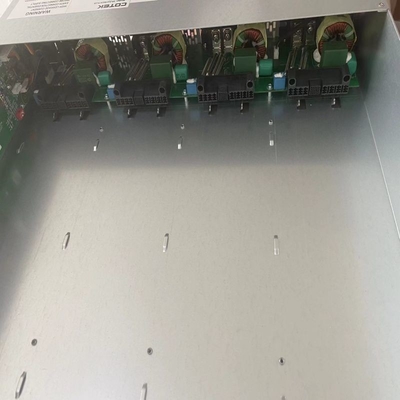

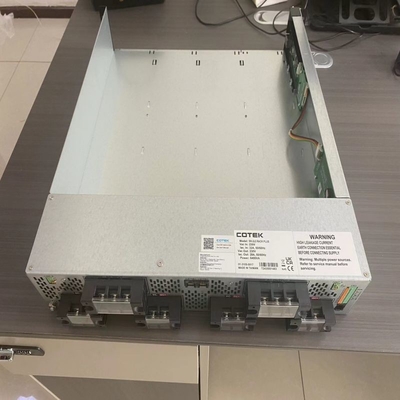

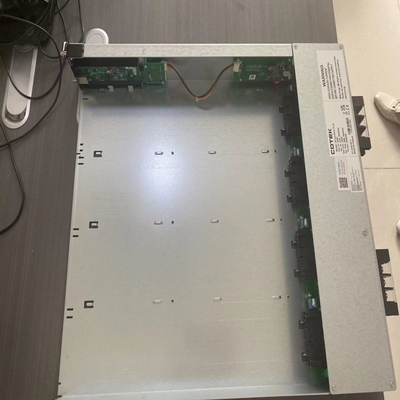

Cotek Sub Rack For Use With SR-1600 PLUS Inverter SR-2U2 Rack Plus Power Shelf 0Cotek Sub Rack For Use With SR-1600 PLUS Inverter SR-2U2 Rack Plus Power Shelf 1Cotek Sub Rack For Use With SR-1600 PLUS Inverter SR-2U2 Rack Plus Power Shelf 2Cotek Sub Rack For Use With SR-1600 PLUS Inverter SR-2U2 Rack Plus Power Shelf 3
