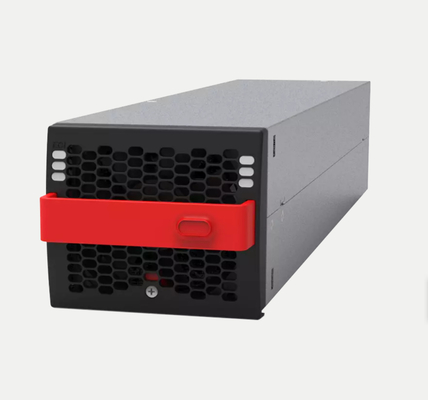

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

CE+T Inverter Module 230VAC 48VDC inverter 3KVA 2.4kw Bravo 2548/230-277

Bravo 25 - 48/230-277 is a compact and scalable modular inverter providing a pure sine wave at AC output. It provides an excellent AC backup

solution in conjunction with a DC Power system. It uses cutting edge technology to provide the most energy-efficient in a compact size.

The ECI technology eliminates all single points of failure with full scalability; up to 32 modules in parallel and high efficiency of up to 96% in

AC to AC conversion, and above 93.7% in DC/AC conversion, hence reducing operating costs. We can build the systems up to 2.7 MVA.

Applications

All business critical applications and all types of AC loads. The design is modular and scalable with hot- swappable inverter modules which ensures

low Mean Time to Repair (MTTR), reduction in service costs and meets the changing needs for future expansion.

Main Features

• Extra AC input for increased efficiency on double conversion

• Wide AC input range up to 293 Vac L-N

• Up to 12 kVA in 2RU - 19 inches

• Up to 2.7 MVA by using extra syncrhonization device

• 1P or 3P infrastructure

• Compatible with Inview S, X and GW

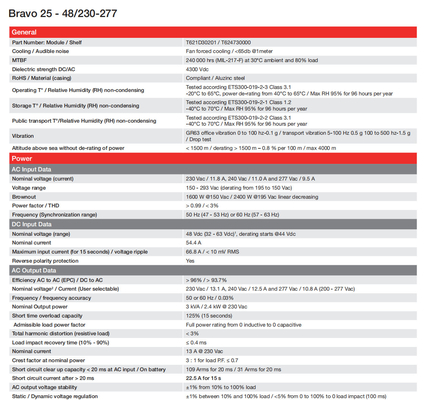

Specification

Modular Inverter System Avaliable !
