Top Future Technology Co.,ltd is a complete provider of telecom products and service s for IT, manufacturing facilities and telecommunications appliances, as a design ,supply in telecommute power supply, solar energy , data center and emergency service for enterprise . we have rich experience for both AC and DC applications ,we offer turn key solutions that simplify project execution and procurement with a single point of contract. Treat us as an extension of your Telecom and IT facilites departments.we are ready to help solve any type of power problem or complete a new power project together.
Our Mainly business scope:

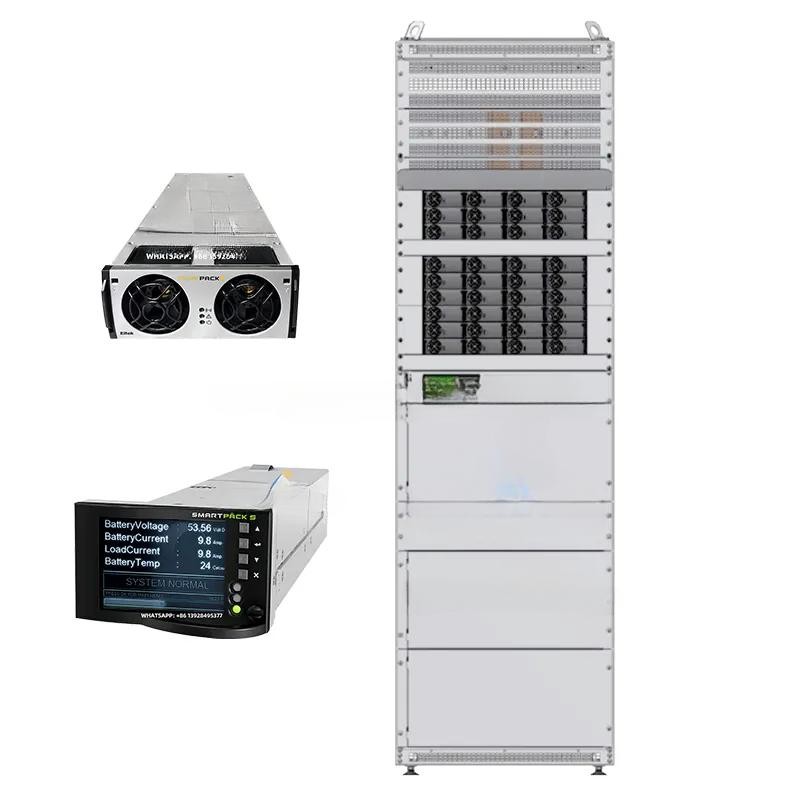

24Vdc,48Vdc,60Vdc,110Vdc,220Vdc DC power system (integrated power system , indoor and outdoor cabinet)

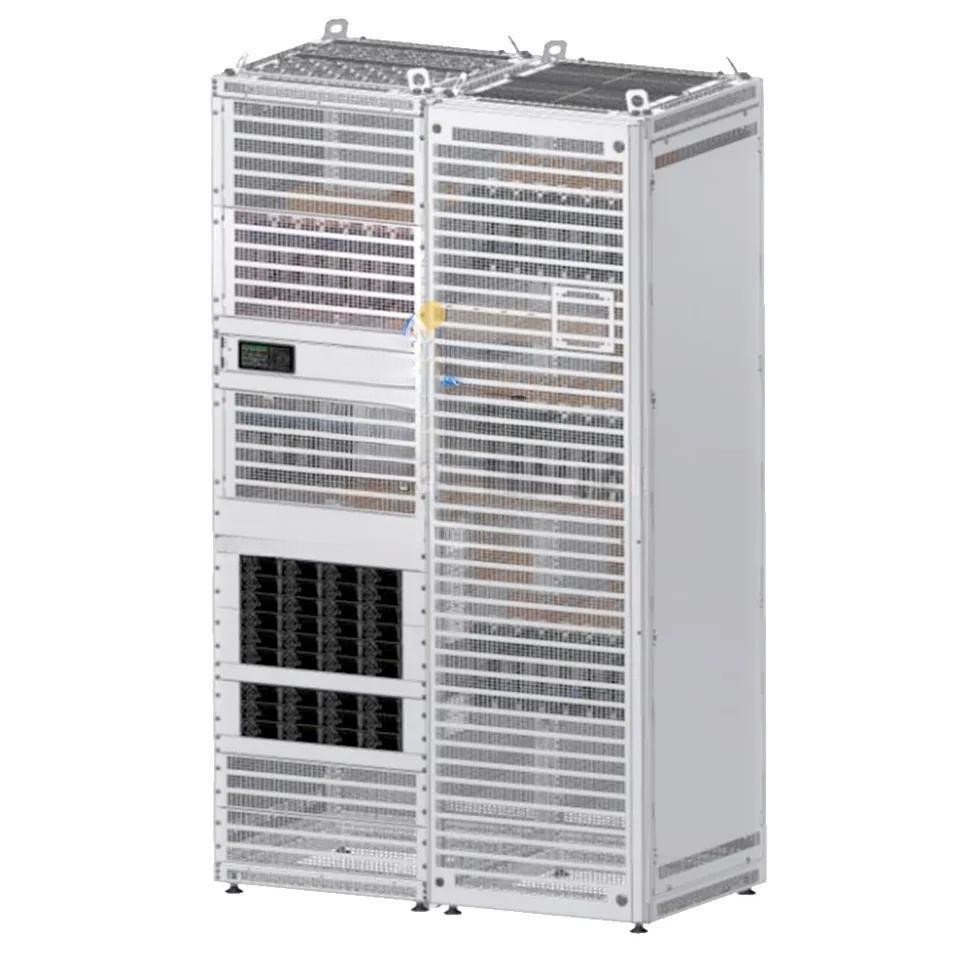

48Vdc large system
AC UPS ;
Precision Air Conditioner ;
Spare parts for power system

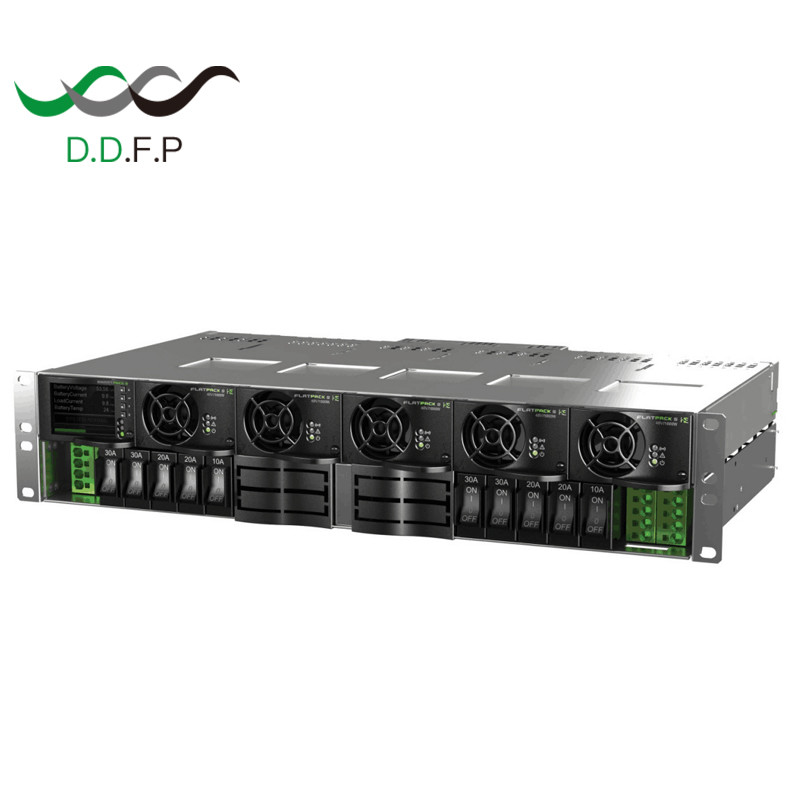

KEY FEATURES
l · COMPLETE SYSTEM
l · SMARTPACK R CONTROLLER
l · ADVANCED CONTROL AND
l MONITORING THROUGH ETHERNET PORT
l · USB TYPE A HOST FOR PLUG-IN
l DEVICES (EG. WIFI; FLASH DRIVES)
l · USB TYPE B FOR CONTROL
l · SUPER HIGH EFFICIENCY
l RECTIFIERS
l · HOT PLUGGABLE MODULES
l · 6X BATTERY BREAKER POSITIONS
l · LVBD
l · 18X LOAD MCB DISTRIBUTION
l · LVLD (OPTIONAL)
l · 5U TO 8U HEIGHT
l · GLOBAL APPROVALS
Parameters :
|
|
|
|
|
|
|
|
|
| MODEL |
24VDC |
|
|
48VDC |
|
|
Part number
(Configured Telecom power system)
|
CTO2xxxx.nnnn |
|
|
CTOxxxxx.nnnn |
|
|
|
|
|
|
|
|
| POWER MODULE |
| Flatpack2 rectifier 1) |
Flatpack2 24/1800 HE |
|
Flatpack2 48/2000 HE or SHE Flatpack2 48/3000 HE or SHE |
| INPUT DATA |
| Voltage (range) |
85-300 VAC |
|
|
85-300 VAC (HE module) 85-264 VAC (SHE module) |
| Frequency |
45-66 Hz |
|
|
|
|
|
| Mains configuration |
Individual 2) / 1p230 VAC TN / 3p400 VAC TN / 1p230 VAC IT / 3p230 VAC IT |
| Connection |
Terminal blocks, 16 mm2 max |
|
|
|
|
| OUTPUT DATA |
| Voltage |
+24 VDC |
|
|
-48 VDC |
|
| Current (maximum) |
600 A |
|
|
600 A |
|
|
| BATTERY DISTRIBUTION |
|
| Number of battery breaker positions |
6x 100 A |
|
|
|
|
|
| LVBD |
Default 300 A / 600 A |
|
Optional 150 A / 300 A / 500 A / 600 A |
| LOAD DISTRIBUTION |
|
| Number of load MCB positions |
18x 18 mm or 9x 18 mm + 6x 27 mm |
|
|
|
| LVLD |
Optional 300 A / 600 A |
|
Optional 150 A / 300 A / 500 A / 600 A |
| Load breaker type |
DIN rail mounted, 18 mm and 27 mm wide (13 mm on request) |
|
| CONTROL AND MONITORING |
|
| Control and Monitoring unit 3) |
Smartpack R |
|
|
|
|
|
| Inputs |
6x Digital inputs (for monitoring of external equipment) |
|
| Outputs |
6x Alarm relays |
|
|
|
|
|
| OTHER SPECIFICATIONS |
|
| Isolation |
3.0 kVAC – input to output
1.5 kVAC – input to earth
0.5 kVDC – output to earth
|
|
|
|
|
| Operating temperature |
-40 to +60 °C [-40 to +140 °F] |
|
|
|
|
| Storage temperature |
-40 to +85 °C [-40 to +185 °F] |
|
|
|
|
| Dimensions (W x D x H) 4) |
482 x 380 x H mm [19 x 14.9 x H inch] Height (H):
- 5U: 222 mm [8.8 inch]
- 6U: 267 mm [10.5 inch]
|
482 x 380 x H mm [19 x 14.9 x H inch] Height (H):
- 5U: 222 mm [8.8 inch]
- 6U: 267 mm [10.5 inch]
- 7U: 311 mm [12.3 inch]
- 8U: 356 mm [14 inch]
|
| Weight (excluding modules) |
Approximately 5 kg [11 lbs] |
|
|
|
|
| DESIGN STANDARDS |
|
| Electrical safety |
IEC/UL 60950-1
CSA 22.2
|
|
|
|
|
|
| EMC |
ETSI EN 300 386 v1.3.2
EN 61000-6-2 /-3
|
|
|
|
|
| Environment |
ETSI EN 300 019-2-1 (Class 1.2) /-2 (Class 2.3) /-3 (Class 3.2)
ETSI EN 300 132-2
Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised
|
|
1) See Flatpack2 rectifier datasheet for details
2) When system is configured without SPD device option
|
3) See Smartpack R controller datasheet for details
4) Recommended minimum cabinet depth is 400 mm [15.7 inch]
|
