Home /Products/DC AC Inverters/CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201

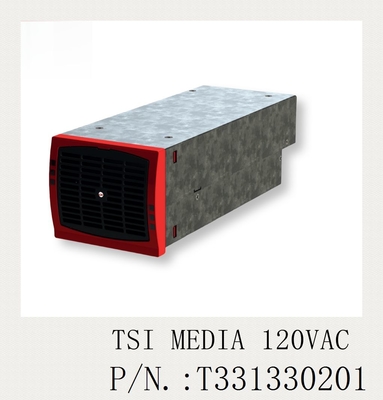

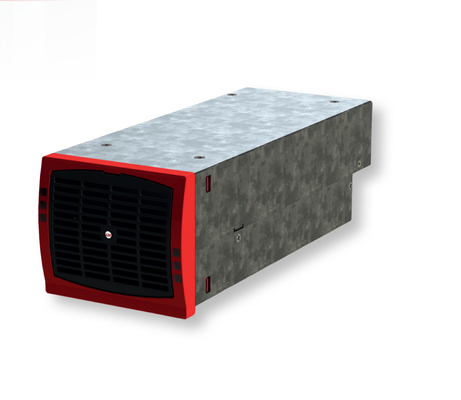

CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201

10
MOQ
99 USD
Price
CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201
Features Gallery Product Description Request A Quote
Features
Specifications
Brand: CE+T
Model Number: TSI MEDIA 120 Vac
Product Name: Modular Inverters
Part No.: T331330201
DC Voltage (input Range): 48 Vdc (40 – 60)
AC Voltage (input Range): 120 Vac (100 – 138)
Output Power: 1.5 KVA / 1.2 KW
Efficiency: DC/AC: 90%
Efficiency: AC/AC: 94%
Weight: 4kg
Highlight:

1.5KVA Modular Inverter

,

48v To 120v Modular Inverter

,

Modular Dc To Ac Power Inverter
Basic Infomation
Place of Origin: CN
Brand Name: CE+T
Certification: CE
Model Number: TSI MEDIA 120 Vac
Payment & Shipping Terms
Packaging Details: Wooden cartons
Delivery Time: 2-4 weeks
Supply Ability: 500 sets / month
Product Description

CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201 0

CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW inverter (P/N.:T331330201)

Description:

Media is a modular inverter converting 48 Vdc power source into a pure 120 Vac sine wave. By using several modules,
we can offer solutions for two-phase (2x120Vac + N) or three-phase (3x208Vac + N) infrastructures.

The extra AC input ensures a high overall efficiency (up to 94%) which results in a reduction of energy loss and heat dissipation.

Low Mean Time To Repair (MTTR) and hot swappable, this module is designed to provide you a reliable AC backup solution

and meet your needs from 1.5 kVA up to 48 kVA.

The low ripple voltage avoids any disturbances on DC loads and batteries.


Key features:

  • Extra AC input for increased efficiency
  • For loads from 1.5 kVA
  • Compact design
  • No disturbances on DC loads & batteries


Application:

CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201 1


Parameters:


In: DC voltage (input range) 48 Vdc (40 – 60)
In/Out: AC voltage (input range) 120 Vac (100 – 138)
Output power 1.5 kVA / 1.2 kW
Efficiency: DC/AC 90%
Efficiency: AC/AC 94%
Temperature -20 to 65° C
Dimension 2U x 103 mm x 267 mm
Part number T331330201


CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201 2

CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201 3



CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201 4


 CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201 5



CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201 6



 more......


CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201 7




CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201 8

CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201 9


CET Modular Inverter TSI MEDIA 120 Vac 48Vdc 1.5KVA 1.2KW P/N T331330201 10
