Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201

10
MOQ
1 USD
Price
Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201
Features Gallery Product Description Request A Quote
Features
Specifications
Brand: CE+T
Model Number: TSI Bravo125/120
Product Name: Modular Inverters
Part No.: T321350201
DC Voltage (input Range): 125 Vdc (90 – 160)
AC Voltage (input Range): 120 Vac (100 – 138)
Output Power: 2.5 KVA / 2 KW
Efficiency: DC/AC: 91%
Efficiency: AC/AC: 95%
Weight: 4.3kg
Highlight:

2.5KW Inverters Convert Ac To Dc

,

Modular Inverters Convert Ac To Dc

,

2.5KVA Modular Inverter
Basic Infomation
Place of Origin: CN
Brand Name: CE+T
Certification: CE
Model Number: TSI Bravo125/120
Document: T321353201 (1).pdf
Payment & Shipping Terms
Packaging Details: Wooden cartons
Delivery Time: 2-4 weeks
Supply Ability: 500 sets / month
Product Description

Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 0

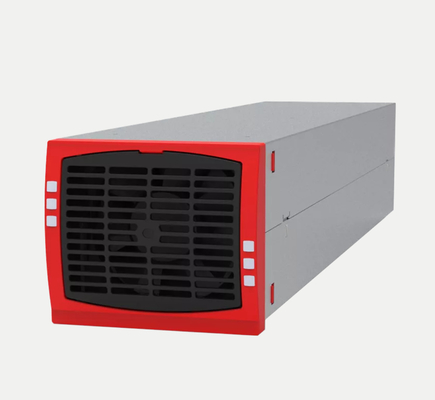

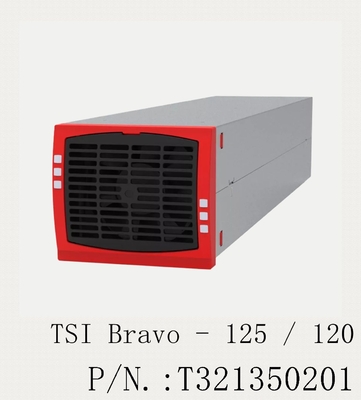

CET Modular Inverters TSI Bravo125/120 with extra AC input 125Vdc 120Vac 2.5KVA

2.5KW Inverter (P/N.:T321350201)





Description:

Modular inverter with an extra AC input to reduce energy loss and increase the overall efficiency.



TSI Bravo – 125/120 is a compact modular inverter that converts 125 Vdc power source into 120 Vac and

provides a pure sine wave. By using several modules, we can offer solutions for two-phase (2x120Vac + N) or

three-phase (3x208Vac + N) infrastructures.

The extra AC input ensures a high overall efficiency (up to 95%) which results in a reduction of energy loss

and heat dissipation.

This module has a modularity from 2.5 kVA to up to 80 kVA in order to be able to evolve with your needs.

The hot swap feature makes maintenance easier and reduces the risk of errors.



The low ripple voltage avoids any disturbances on DC loads and batteries.



Application:



Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 1

Main features:



Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 2



Parameters:



In: DC voltage (input range) 125 Vdc (90 – 160)
In/Out: AC voltage (input range) 120 Vac (100 – 138)
Output power 2.5 kVA / 2 kW
Efficiency: DC/AC 91%
Efficiency: AC/AC 95%
Temperature -20°C to 65°C
Dimension 2U x 103 mm x 435 mm
Part number T321350201




Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 3

Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 4





Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 5



 Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 6





Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 7



 more......



Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 8







Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 9

Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 10



Extra AC Input 125Vdc 120Vac inverters convert ac to dc 2.5KVA 2.5KW P/N T321350201 11
