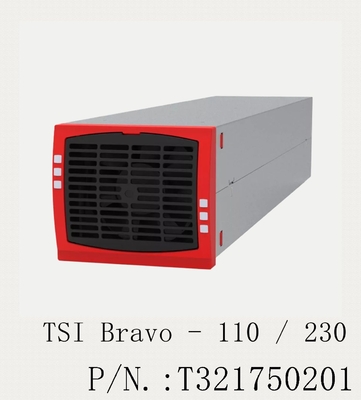

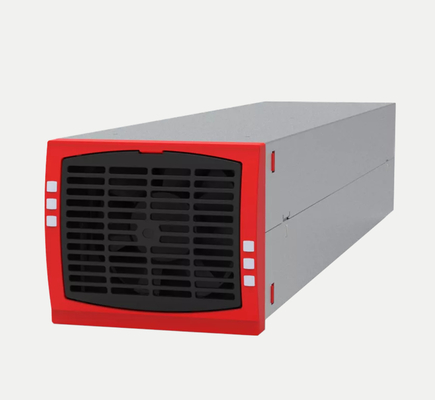

CE+T Modular Inverter Module TSI BRAVO 110/230 110Vdc 230Vac 2.5kva 2kw Inverter (P/N.:T321750201)

Description:

TSI Bravo 110/230

Bravo110/230

Modular inverter with an extra AC input to reduce energy loss and increase the overall efficiency.

Description:

TSI Bravo - 110/230 is a compact and modular inverter that converts a 110 Vdc power source into 230 Vac

and provides a pure sine wave.

By using at least three modules, we can offer solutions for three-phase infrastructures (3x400Vac + N).

The additional AC input ensures a high overall efficiency (up to 96%) which results in a reduction of energy loss and heat dissipation.

This module has a modularity ranging from 2.5 kVA to up to 80 kVA to be able to evolve with your needs.

The hot swap feature makes maintenance easier and reduces the risk of errors.

The low ripple voltage avoids any disturbances on DC loads and batteries.

Main features:

Extra AC input for increased efficiency

Compact design

Up to 80 kVA

No disturbances on DC loads & batteries

Application:

All business critical applications and all types of AC loads.

The design is modular and scalable with hot- swappable

inverter modules which ensures low Mean Time to Repair

(MTTR), reduction in service costs and meets the changing

needs for future expansion.

Parameters:
