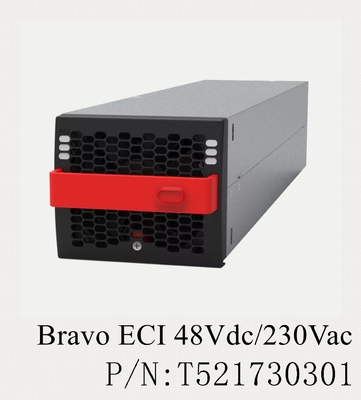

Bravo ECI 48/230 Ac To Dc Power Inverter 2.4KW P/N T521730301

CET Modular Inverters Bravo ECI 48/230 2.4KW Inverters (P/N.:T521730301)

Description:

Bravo ECI is a compact modular inverter that converts a 48 Vdc power source into 230 Vac. By using at least three modules,

we can offer solutions for three-phase infrastructures (3x400Vac + N).

An additional AC input is used under normal conditions to achieve an overall conversion efficiency of 96%.

In the event of a grid failure, it automatically switches to the DC to secure the loads.

Invest step-by-step in your power infrastructure with a modularity from 3 kVA to up to 2.7 MVA.

The hot swap feature makes maintenance easier.

The low ripple voltage avoids any disturbances on DC loads and batteries.

Applications

All business critical applications and all types of AC loads. The design is modular and scalable with

hot- swappable inverter modules which ensures

low Mean Time to Repair (MTTR), reduction in service costs and meets the changing needs for future expansion.

Application:

• telecom
• Data computer
• Mass transport
• Industry
• Power Utilites
• Renewable

Main Features

• High efficiency (DC to AC >93.5%)

• Compact design

• Dual input sources (AC & DC) with wide AC input range 150 Vac to 265 Vac

• Transfer time reduced to 0 ms

• Up to 12 kVA in 2 U

Parameters:
