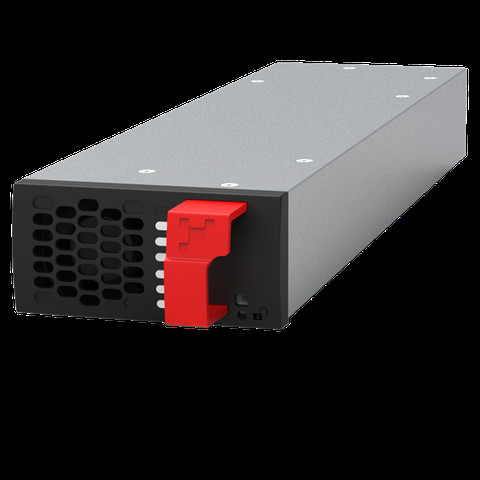

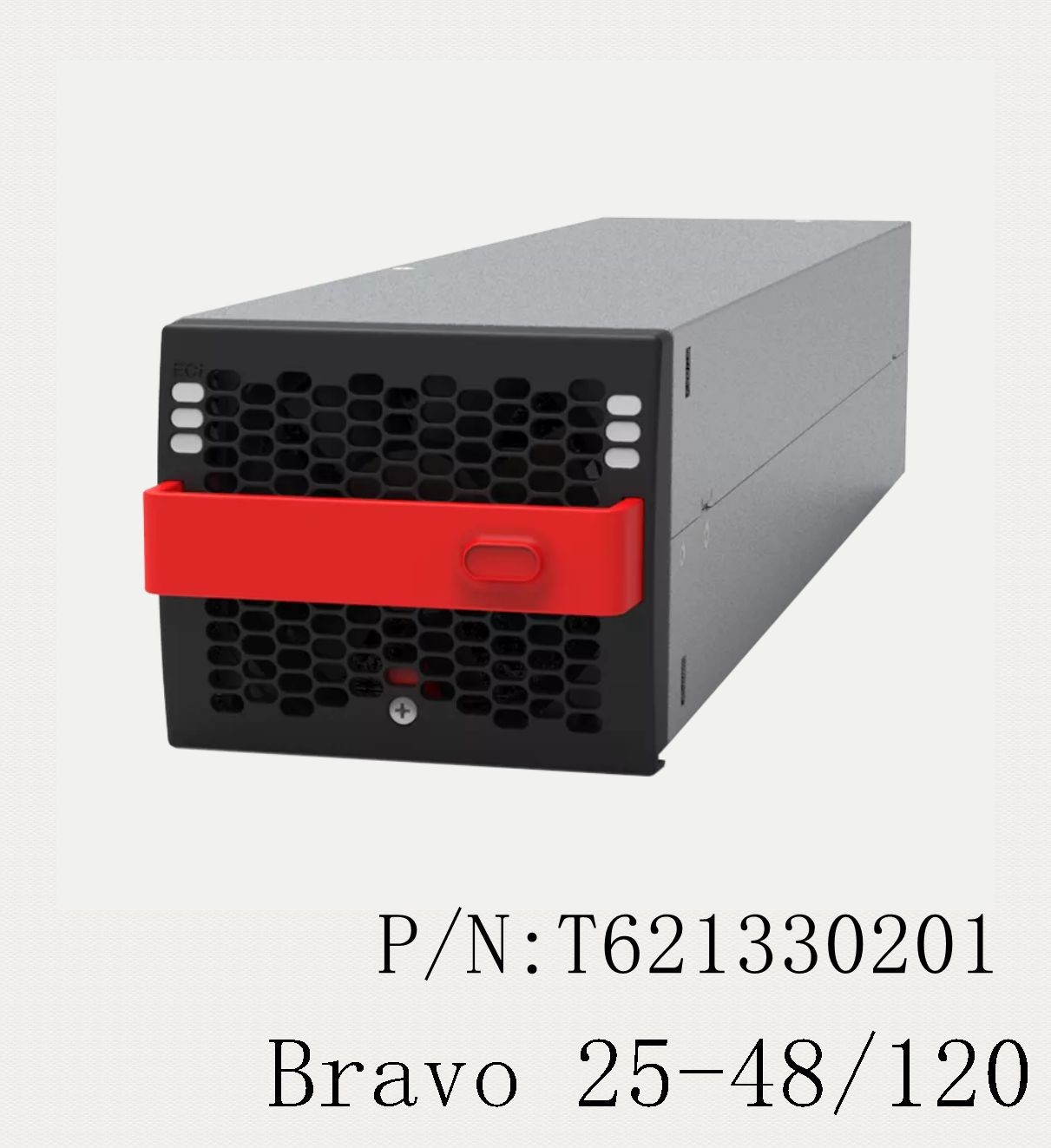

Bravo 25 - 48/120 DC AC Inverters 2250W 120Vac P/N T621330201

CET Modular Inverter Bravo 25 - 48/120 2250W 120Vac Inverter (P/N.: T621330201)

Description:

Bravo 25 is a compact modular inverter that converts a 48 Vdc power source into 120 Vac. By using several modules,

we can offer solutions for two-phase (2x120Vac + N) or three-phase (3x208Vac + N) infrastructures.

An additional AC input is used under normal conditions to achieve an overall conversion efficiency of 95%.

In the event of a grid failure, it automatically switches to the DC to secure the loads.

Invest step-by-step in your power infrastructure with a modularity from 2.75 kVA to up to 88 kVA.

The hot swap feature makes maintenance easier.The low ripple voltage avoids any disturbances on DC loads and batteries.

Key features

• Extra AC input for increased efficiency
• Compact design
• From 2.75 to 88 kVA
• 1P or 3P infrastructure
• No disturbances on DC loads & batteries

Application:

• telecom
• Data computer
• Mass transport
• Industry
• Power Utilites
• Renewable

Main Features

• High efficiency (DC to AC >93%)

• Compact design

• Dual input sources (AC & DC) with wide AC input range 90 Vac to 140 Vac

• Transfer time reduced to 0 ms

• Up to 11 kVA in 2 U

Parameters:
