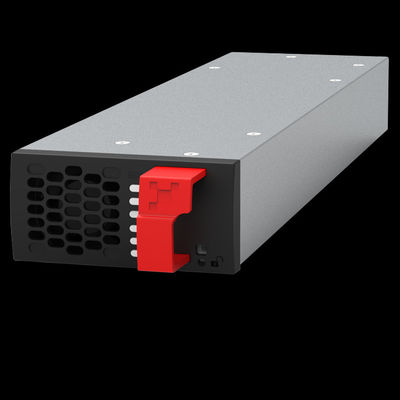

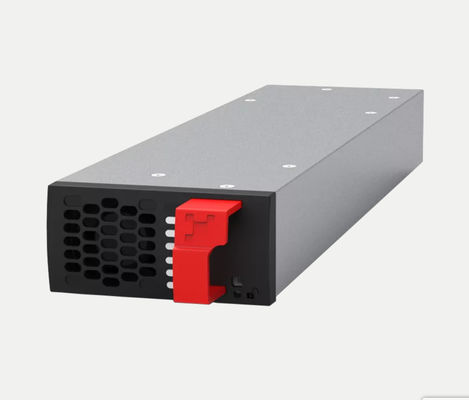

Compact 1.25 kVA Modular Inverter 48V to 230V DC AC Inverter Bravo 10-48/230

10
MOQ
1999 USD/SET
Price
Compact 1.25 kVA Modular Inverter 48V to 230V DC AC Inverter Bravo 10-48/230
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Brand: CET
Model Number: Bravo 10-48/230
Product Name: Modular Inverter
Part No.: T611730201
DC Voltage (input Range): 48 Vdc (40-60)
AC Voltage (input Range): 230 Vac (150-265)
Output Power: 1.25 KVA / 1 KW
Efficiency: DC/AC: 92.5%
Efficiency: AC/AC: 96%
Dimesnsion: 1U X 87 Mm X 346 Mm
Highlight:

1kw 48v Dc To 230v Ac Inverter

,

Modular Inverter 48v To 230v 1000w

,

Inverter 48v To 230v 1000w
Basic Infomation
Place of Origin: CN
Brand Name: CET
Certification: CE
Model Number: Bravo 10-48/230
Payment & Shipping Terms
Packaging Details: Wooden cartons
Delivery Time: 2-4 weeks
Supply Ability: 500 sets / month
Product Description
Bravo 10– 48/230 1.25 Kva /1KW Inverter 48v To 230v 1000w For Modular Inverter System P/N T611730201
Bravo 10 modular inverter system overview
CET inverter Bravo 10 - 48/230 1.25kva Inverter for Modular Inverter System (P/N:T611730201)
Product Overview

The most compact inverter with extra AC input to efficiently secure critical loads from 1.25 to 40 kVA.

Bravo 10 - 48/230 is a compact modular inverter that converts a 48 Vdc power source into 230 Vac. By using at least three modules, we can offer solutions for three-phase infrastructures (3x400Vac + N). An additional AC input is used under normal conditions to achieve an overall conversion efficiency of 96%. In the event of a grid failure, it automatically switches to the DC to secure the loads. The modularity is maximum thanks to increments of 1.25 kVA / 1 kW only! Different configurations are possible such as monitoring integrated in the shelf or not, and for single-phase or three-phase systems.

Key Features
  • Extra AC input for increased efficiency
  • All-in-one solution with monitoring included
  • From 1.25 to 40 kVA
  • 1P or 3P configuration
  • Compact design
Technical Parameters
In: DC voltage (input range) 48 Vdc (40-60)
In/Out: AC voltage (input range) 230 Vac (150-265)
Output power 1.25 kVA / 1 kW
Efficiency: DC/AC 92.5%
Efficiency: AC/AC 96%
Temperature -20°C to 65°C
Dimension 1U x 87 mm x 346 mm
Part number T611730201
Product Images
Bravo 10 inverter front view Bravo 10 inverter side view Bravo 10 inverter rear connections Bravo 10 inverter technical details Bravo 10 inverter installation view Bravo 10 inverter specifications diagram Bravo 10 inverter wiring diagram Bravo 10 inverter technical schematic Bravo 10 inverter modular system Bravo 10 inverter rack mounting Bravo 10 inverter internal components Bravo 10 inverter control panel Bravo 10 inverter complete system
